© 2022
Order #XXXXX

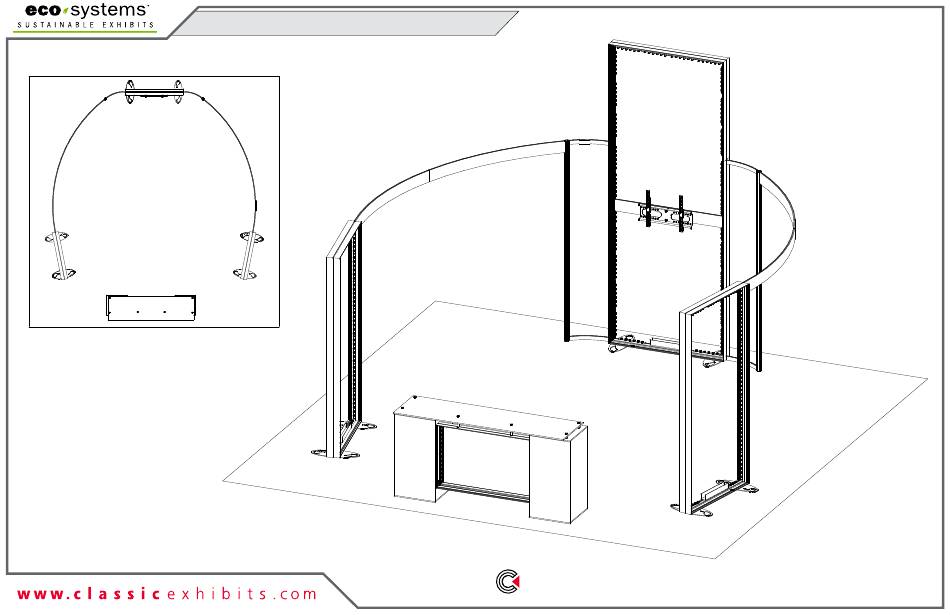

ECO-4094 - 20' x 20' Display
20'
Plan View
20'
SETUP INSTRUCTIONS
If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the ECO-4094 and is the answer not in the manual?

Questions and answers

Related Manuals for Eco-Systems ECO-4094

Summary of Contents for Eco-Systems ECO-4094

  • Page 1 © 2022 Order #XXXXX ECO-4094 - 20’ x 20’ Display 20’ Plan View 20’ SETUP INSTRUCTIONS If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com...

  • Page 2: Grid View

    © 2022 Order #XXXXX Grid View = 1 sq foot...

  • Page 3: General Setup Instructions

    © 2022 Order #XXXXX General Information General Setup Instructions - Read entire setup instruction manual prior to WARNING unpacking parts and pieces. - The setup instructions are created specifically for this configuration. - Setup instructions are laid out sequentially in steps, including exploded views with detailed explanation for assembly.
  • Page 4 © 2022 Order #XXXXX EuroLT Assembly Level 1 = Blue Panel Lock Level 2 = When Required Level 3 = Green Level 4 = Black Panel Lock With Right Hand Thumb When Required Using Your Setup Instructions Close to Seam Color Coded Clip Squeeze, Left Hand...
  • Page 5 © 2022 Order #XXXXX CEI152 Frame Assembly Corner Connection Corner Bracket Installation 1) Slide TWO-PIECE TS RV 2 L-bracket into Upper Interior Center Slot of extrusion so that two Horizontal set screws are inside groove. Tighten two set screws to secure. Upper Slide verticals over brackets of lower...
  • Page 6 © 2022 Order #XXXXX CEI110 Frame Assembly Corner Connection Corner Bracket Assembly 1) Slide TWO-PIECE TS RV 2 L-bracket into Upper Interior Center Slot of extrusion so that two Horizontal set screws are inside groove. Tighten two set screws to secure. Upper Slide verticals over Horizontal...
  • Page 7 © 2022 Order #XXXXX SEG Installation Graphic Removal Corner A Corner B Corner D Corner C Step 1 Step 2 Step 3 It is important to first insert To remove the graphic from Insert corner A. Turn edge of Repeat Step 1 for opposite Once all corners are inserted, graphic into each alternate the frame, locate the fabric...
  • Page 8 © 2022 Order #XXXXX Crate Packing CRATE PACKING Crate 1 of 1...
  • Page 9 © 2022 Order #XXXXX Backwall Assembly Item Qty. Description 96”h CEI152 Vertical Extrusion 49.823”h CEI152 Vertical Extrusion 96”h CEI152 Vertical Extrusion 49.823”h CEI152 Vertical Extrusion 56”w CEI152 Horizontal Extrusion 56”w CEI152 Horizontal Extrusion 52.353” Z140 Horizontal Extrusion 8” x 22” Base Plate U-Channel When assembled U-Channel Attachment...
  • Page 10 © 2022 Order #XXXXX Backwall Assembly (cont’d) Item Qty. Description Steps: 96”h RSG540 Vertical Extrusion 1) Connect horizontals [10] between verticals [9] & 19.722” Z45 curved Horizontal Extrusion lightbox verticals [1/2], [3/4], inserting Infill. When assembled Step 2 of 10...
  • Page 11 © 2022 Order #XXXXX Backwall Wiring Steps: Power 1) Connect power cords to Supernova lights as shown. Break Light to Light Attachment Light to Transformer Attachment Male Female Lights Power Transformer 144W / 6 Amp / 24V Maximum of 7 lights per chain / 11 lights per Transformer Transformers FRONT VIEW Step 3 of 10...
  • Page 12 © 2022 Order #XXXXX Backwall Attachments Steps: Refer to the SEG Installation general information page. 1) Apply SEG Graphic to front of lightbox assembly. 2) Install Monitor Mount to horizontal [7]. Monitor Mount Attachment detail. 3) Apply SEG Graphic to back of lightbox assembly. S E G G r a p h When assembled...
  • Page 13 © 2022 Order #XXXXX Side Lightbox Assembly (Left) Item Qty. Description Steps: 96”h CEI152 Vertical Extrusion Refer to the CEI152 Frame Assembly general information page. 96”h CEI152 Vertical Extrusion 46”w CEI152 Horizontal Extrusion 1) Install U-Channel to horizontal [15]. See U-Channel Attachment detail.
  • Page 14 © 2022 Order #XXXXX Side Lightbox Assembly (Right) Item Qty. Description Steps: 96”h CEI152 Vertical Extrusion Refer to the CEI152 Frame Assembly general information page. 96”h CEI152 Vertical Extrusion 46”w CEI152 Horizontal Extrusion 1) Install U-Channel to horizontal [20]. See U-Channel Attachment detail.
  • Page 15 © 2022 Order #XXXXX Side Lightbox Wiring Steps: 1) Connect power cords to Supernova lights as shown. Light to Light Attachment Light to Transformer Attachment Male Female Lights Power Transformer 144W / 6 Amp / 24V Maximum of 7 lights per chain / 11 lights per Transformer Transformers LEFT &...
  • Page 16 © 2022 Order #XXXXX Side Lightbox Attachments Steps: Refer to the SEG Installation general information page. 1) Apply SEG Graphics to front & back of lightbox assembly. r a p h ic S E G G r a p h ic S E G G S E G G ra ph ic S E G G ra ph ic...

  • Page 17: Header Assembly

    © 2022 Order #XXXXX Header Assembly Item Qty. Description Steps: 71.66” Z140 curved Horizontal Extrusion 1) Assemble extrusions [11-12] together. See Z140 Spline Connecion detail. 71.66” Z140 curved Horizontal Extrusion 2) Attach assembly [11/12] between back lightbox verticals [9] & front lightbox verticals [14] &...
  • Page 18 © 2022 Order #XXXXX ECO-42C Reception Counter Item Qty. Description Steps: 46”w CEI110 Horizontal Extrusion 1) Connect horizontals [3,4] between verticals [1,2], 30.5”h CEI110 Vertical Extrusion sliding backer panel between verticals. CEI-110 Corner Connection detail. 2) Attach left & right cabinets to frame assembly [1/2/3/4] CEI-110 Corner Connection using bolts &...
