Summary of Contents for Eco-Systems ECO-1054

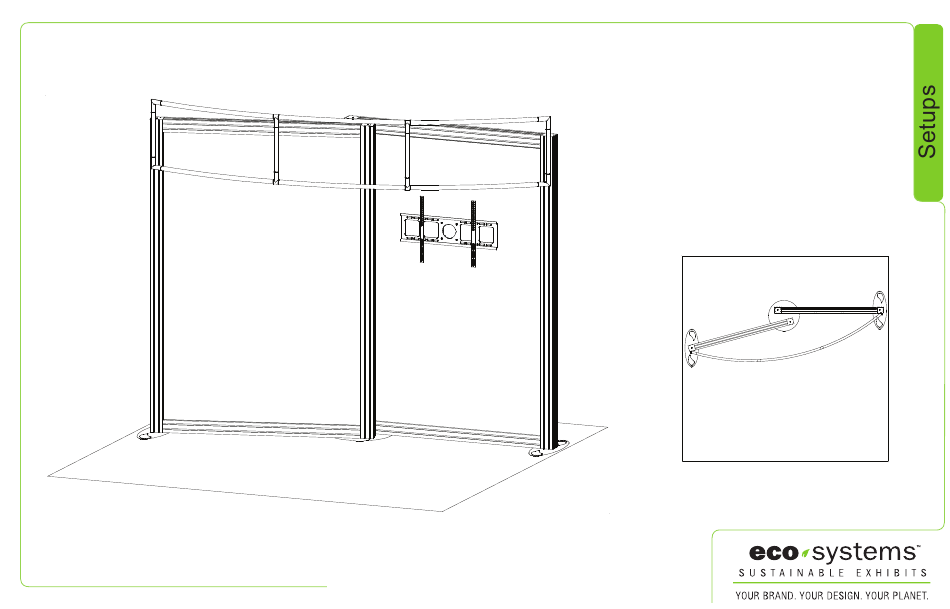

- Page 1 Order #XXXXX - ECO-1054 - 10’x10’ Inline Display 10’ 10’ Plan View 866.463.2611 • www.ecosystemsdisplays.com...
- Page 2 General Setup Instructions •The setup instructions are created specifically for your configuration. •Setup instructions are laid out sequentially in levels, including exploded views and a logical series of steps for assembly. We encourage you to study the instructions before attempting to assemble your exhibit. Cleaning and Packing •Use non-abrasive cleaners when cleaning extrusions or ECO Glass inserts.
- Page 3 ECO Panel Install Place ECO panel together with a vertical offset, slide down to lock connector in place. Panel Corner Connectors are installed just like ECO panels. Remove by off-setting top lock clips horizontally followed by separating vertically. Graphic Install Graphic is installed corners first.
- Page 4 Item Qty. Description Steps: 8”x22” Eco Leaf Oval Baseplate 1) Attach Base Plates [1A] to bottom of verticals [3A,6A] using bolts. 18” Round Baseplate 2) Connect Oval Base Plate [1B] to bottom of vertical [3]. 2/2A 56“w Q918 Horizontal Extrusion w/ TSP3 3) Attach horizontals [2,2A] between verticals [3,3A].
- Page 5 Steps: 1) Install Monitor Mount to horizontal [4]. Monitor Mount Attachment Monitor Mount Attachment detail. 2) Run power cords for monitor through graphic Bolts holes in extrusion to power source, as shown. 3) Apply remaining SEG Graphics & Blockers. Bolts Hole for wire management Bolts...
- Page 6 Bolts Bolts Using Your Setup Instructions The Aero Overhead Sign Setup Instructions are created specifically for your configuration. They include an exploded view of the frame which is sequentially numbered. We encourage you to study the instructions before attempting to assemble your exhibit. Connections are kept very simple: no tools.
