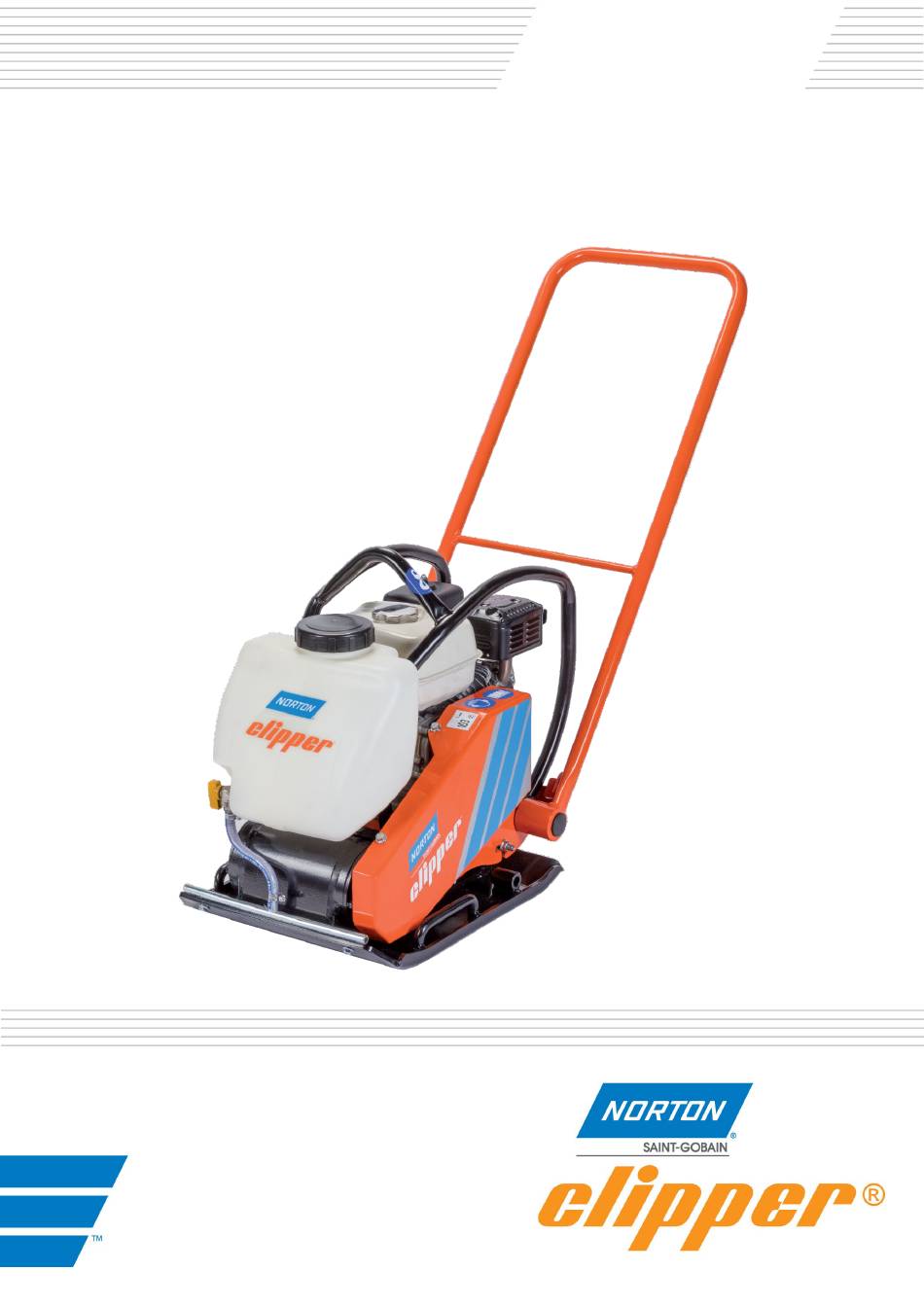

- Page 1 CFP13W COMPACTOR OPERATING INSTRUCTIONS Translation of the original Instructions...
-
Page 2: Declaration Of Conformity
Declaration of conformity The undersigned manufacturer: SAINT - GOBAIN ABRASIVES S.A. 190, BD. J. F. KENNEDY L-4930 BASCHARAGE CFP13 W Declares that this product: Norton Clipper Compactors 70184608007 Code: HONDA GX160 Is in conformity with the following Directives: "MACHINES" 2006/42/CE "NOISE"... - Page 3 VERS. 01.09.2019 CFP13W _MAN_EN Norton Clipper CFP13W OPERATING INSTRUCTIONS TABLE OF CONTENTS 1 BASIC SAFETY INSTRUCTIONS 1.1 Symbols 1.2 Machine plate 1.3 Safety instructions for particular operating phases 2 MACHINE DESCRIPTION 2.1 Short description 2.2 Purpose of use 2.3 Layout 2.4 Technical Data...
-
Page 4: Basic Safety Instructions
CFP13W _MAN_EN 1-BASIC SAFETY INSTRUCTIONS The Norton Clipper CFP13W is exclusively designed for compaction mainly on construction sites. Uses other than the manufacturer's instructions shall be considered as contravening the regulations. The manufacturer shall not be held responsible for any resulting damage. Any risk shall be borne entirely by the user. -
Page 5: Safety Instructions For Particular Operating Phases
VERS. 01.09.2019 CFP13W _MAN_EN 1.2 Machine plate Important data can be found on the following plate located on the machine: Machine code Machine model Serial number Year of production Machine Weight 1.3 Safety instructions for particular operating phases Before starting the work •... -
Page 6: Machine Description
VERS. 01.09.2019 CFP13W _MAN_EN • When the work area is near slopes, the compactor could turn over. When you use compactor in reverse and in a narrow place, the operator must be sideways • from the handle in order to avoid stumbling. - Page 7 The compactor CPF13W is suitable for repairing asphalted surfaces, for small compacting jobs and for preparing green areas As with all other NORTON products, the operator will immediately appreciate the attention given to detail and quality of materials used in construction. The machine and its component parts are assembled to high standards assuring long life and minimum maintenance.
- Page 8 VERS. 01.09.2019 CFP13W _MAN_EN Handle (1) Jig welded steel construction is connected by 4 shockmount on the frame of the machine to reduce the vibrations reach the operator Belt drive and belt cover (2) A centrifugal clutch inside the engine pulley drives the gear shaft through V-Belts. It allows to gradually engaging the vibration of the machine.
-
Page 9: Technical Data
VERS. 01.09.2019 CFP13W _MAN_EN 2.4 Technical DATA 2.4 VIBRATION MEASUREMENTS The engine supporting and the compacting plates are connected by 4 shockmount, which are mounted to avoid that vibrations reach the operator. Products are tested for hand/arm vibration level in accordance with annex D prEN500-4:2001 The hand/harm vibration level is 9,2 m/s The plate compactor has been tested on a “macadam”... -
Page 10: Assembly And Commissioning
VERS. 01.09.2019 CFP13W _MAN_EN 3-ASSEMBLY AND COMMISSIONING Starting the machine Turn the fuel valve to the ON position. Fully press Move the choke lever to the CLOSED position. the dead-man handle against the main handle. NOTE: do not use the choke if the engine is warm or the air temperature is high. -
Page 11: Transport And Storing
VERS. 01.09.2019 CFP13W _MAN_EN CAUTION: when the machine is switched off, the tools will continue turning slowly to complete stop. Be therefore very careful to avoid injuries. 4-Transport and storing 4.1 Securing for transport Conform yourself to work regulations, in order to transport the machine safely. To help you transport the machine, you can remove the transport tube from under the handle and located in the front hole of the machine. -
Page 12: Troubles-Shooting Guide
VERS. 01.09.2019 CFP13W _MAN_EN 6.1 Maintenance of the machine To ensure a long-term quality from the use of the Clipper compactors CPF13W, please follow the maintenance plan below: 7-FAULT : CAUSES AND CURES 7.1 Fault –finding procedures Should any fault occur during the use of the machine, turn it off. Any works dealing with the engine of the machine can only be carried out by a qualified technician. -
Page 13: Spare Parts
Clean air filter, if necessary replace it Engine damaged Contact an engine service center 7.3 Spare parts In order to consult the spare parts lists, we invite you to visit the after-sales website of Norton Clipper by using the following address:... - Page 14 For a quick access, you can also use the QR Code shown below using your mobile phone: This electronic catalogue provides exploded views and spare parts lists for different machines designed by Norton Clipper so you can find references you need. When ordering spare parts, please mention: •...
- Page 15 TEL: 2236 703-1 SAINT-GOBAIN HPM POLSKA SP. Z O.O. FAX: +46 8 580 881 30 2236 8996-0 UL. NORTON 1, 62-600 KOŁO +49 (0) 2236 8911-0 62-600 KOŁO SAINT-GOBAIN INOVATIF MALZEMELER FAX: 2236 703-367 POLAND VE ASINDIRICI SAN. TIC. AS.
