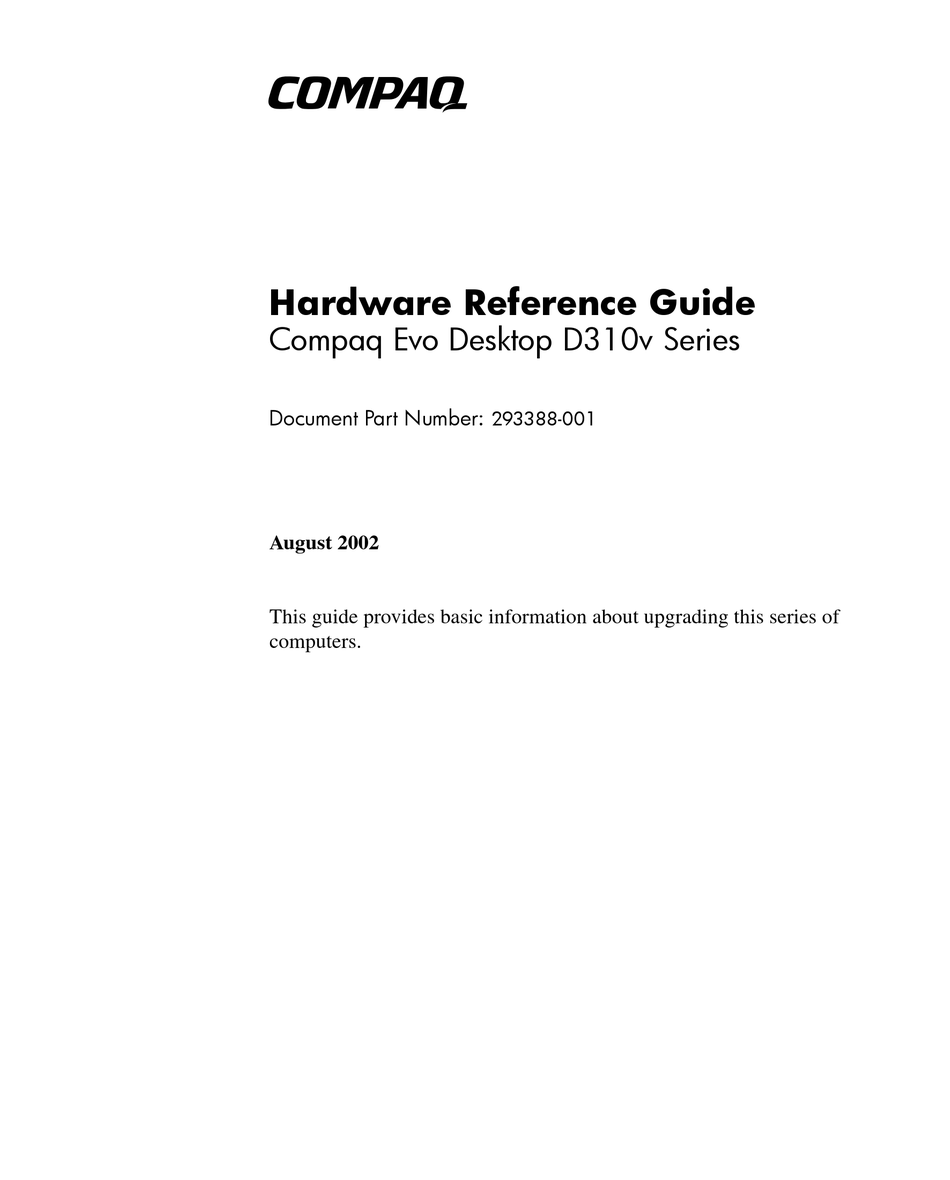

- Page 1 Hardware Reference Guide Compaq Evo Desktop D310v Series Document Part Number: 293388-001 August 2002 This guide provides basic information about upgrading this series of computers.
- Page 2 Ä CAUTION: Text set off in this manner indicates that failure to follow directions could result in damage to equipment or loss of information. Hardware Reference Guide Compaq Evo Desktop D310v Series First Edition (August 2002) Document Part Number: 293388-001...
-
Page 3: Table Of Contents
1 Hardware Upgrades Installation Sequence........... 1–1 Removing the Access Panels. -
Page 4: Hardware Upgrades
Installation Sequence It is very important that you follow this sequence of steps to ensure the proper installation of any optional equipment. For more information about Computer Setup, refer to the Computer Setup (F10) Utility Guide. 1. If the computer is turned on, turn it off and disconnect the power WARNING: To reduce the risk of personal injury from electrical shock Å... -
Page 5: Removing The Access Panels
Hardware Upgrades 4. Replace the computer cover. 5. Turn on the monitor, computer, and any devices you want to test. Reconfigure the computer, if necessary. For more information about Computer Setup, refer to the Computer Setup (F10) Utility Guide. Removing the Access Panels 1. - Page 6 Hardware Upgrades 4. Slide the access panel back about 1 inch (2.5 cm), then lift it away from and off the unit. Removing the Computer Access Panels To replace the access panel, reverse steps 1-4. Hardware Reference Guide 1–3...
-
Page 7: Removing The Front Bezel
Hardware Upgrades Removing the Front Bezel ✎ Remove the front bezel to upgrade a drive. 1. Shut down the operating system properly, then turn off the 2. Disconnect the power cord from the power outlet, and disconnect 3. Remove the computer access panels. 4. -
Page 8: Installing Additional Memory
Installing Additional Memory CAUTION: Your memory module sockets have gold metal contacts. Ä When upgrading your memory, it is important to use memory modules with gold metal contacts to prevent corrosion and/or oxidation resulting from having incompatible metals in contact with each other. CAUTION: Static electricity can damage the electronic components of Ä... - Page 9 Hardware Upgrades 4. Open both latches of the memory module socket 1, and insert the Installing a Memory Module 5. Begin by installing a module into the socket nearest the 6. A memory module can be installed in only one way. Match the 7.
-
Page 10: Installing Or Removing An Expansion Card
Installing or Removing an Expansion Card 1. Shut down the operating system properly, then turn off the 2. Disconnect the power cord from the power outlet, and disconnect 3. Remove the access panel. If installing an expansion card, skip to step 8. 4. - Page 11 Hardware Upgrades 10. Slide the expansion card into the expansion socket and press it Installing an Expansion Card ✎ When you install an expansion card, make sure you press firmly on the card so that the entire connector seats properly in the expansion card socket.
-
Page 12: Removing A 5.25 Inch Drive
Removing a 5.25 Inch Drive 1. Shut down the operating system properly, then turn off the 2. Disconnect the power cord from the power outlet. 3. Remove both access panels. 4. Remove the front bezel. 5. Disconnect the power, data, and audio cables, as necessary, from 6. -
Page 13: Removing A Diskette Drive Or Hard Drive
Hardware Upgrades Removing a Diskette Drive or Hard Drive 1. Shut down the operating system properly, then turn off the 2. Disconnect the power cord from the power outlet. 3. Remove the left access panel. 4. Remove the front bezel. 5. - Page 14 8. Remove the four screws, two from each side, that secure the drive 9. Slide the drive out of the drive cage, as shown in the illustrations Removing the Diskette Drive Removing the Hard Drive To replace the drive cage, reverse steps 5-6. Hardware Reference Guide in the drive cage 1.
-
Page 15: Battery Replacement
Replacing the Battery The battery that comes with your computer provides power to the real-time clock and has a lifetime of about three years. When replacing the battery, use an equivalent 3-volt lithium coin cell battery. A replacement battery may be purchased at your local retailer or from the ✎... - Page 16 Battery Replacement CAUTION: Static electricity can damage the electronic components of Ä the workstation or optional equipment. Before beginning these procedures, ensure that you are discharged of static electricity by briefly touching a grounded metal object. Batteries, battery packs, and accumulators should not be disposed of together with the general household waste.
- Page 17 4. Lift the battery out of its holder. Removing the Coin Cell Battery 5. Slide the replacement battery into position, positive side up. The 6. Replace any expansion boards you removed. 7. Replace the computer cover or access panel. 8. Plug in and turn on the computer. 9.
-
Page 18: Routine Care & Shipping Information
Routine Care & Shipping Information Routine Care Follow these suggestions to take care of your personal computer and monitor: Hardware Reference Guide Operate the personal computer on a sturdy, level surface. Leave a 3-inch (7.6-cm) clearance at the back of the system unit and above the monitor to permit the required airflow. -
Page 19: Cd-Rom Drive Precautions
Routine Care & Shipping Information CD-ROM Drive Precautions Be sure to observe the following guidelines while operating or cleaning your CD-ROM drive. Operation Cleaning Safety If any object or liquid falls into the drive, immediately unplug the personal computer and have it checked by an authorized Compaq service provider. -
Page 20: Shipping Preparation
Shipping Preparation Follow these suggestions when preparing to ship your personal computer: 1. Back up the hard drive files onto the network or removable ✎ The hard drive locks automatically when the system power is turned off. 2. Remove and store separately any removable media and MultiBay 3. -
Page 21: Electrostatic Discharge
A discharge of static electricity from a finger or other conductor may damage system boards or other static-sensitive devices. This type of damage may reduce the life expectancy of the device. Preventing Electrostatic Damage To prevent electrostatic damage, observe the following precautions: Hardware Reference Guide Electrostatic Discharge Avoid hand contact by transporting and storing products in... -
Page 22: Grounding Methods
Electrostatic Discharge Grounding Methods There are several methods for grounding. Use one or more of the following methods when handling or installing electrostatic-sensitive parts: If you do not have any of the suggested equipment for proper grounding, contact your Compaq authorized dealer, reseller, or service provider. - Page 23 access panels removing 1–2 battery replacement battery disposal 2–2 procedure 2–2 risk of fire (warning) 2–1 spare part number for coin cell 2–1 static electricity (caution) 2–2 care of equipment 3–1 cautions battery replacement/disposal 2–2 handling memory modules 1–5 incompatible metals (RAM) 1–5 removing access panels 1–2 static electricity 1–1 static electricity (RAM) 1–5...
