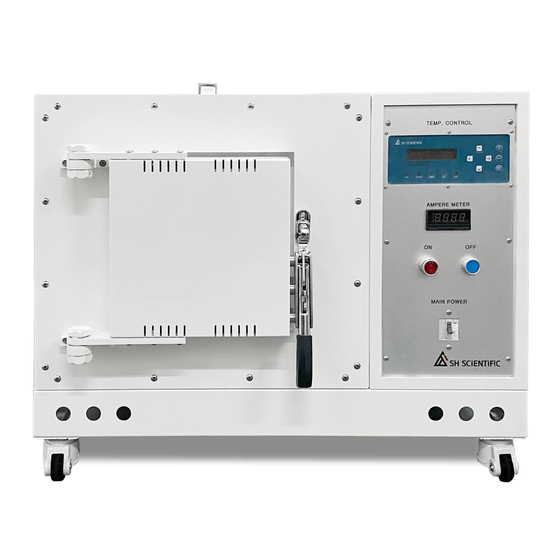

- Page 1 Version : 2016 Rev.0 1500°C MUFFLE FURNACE SH-FU-4/11/22/36MH...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Keep this manual on-hand so it can be used by all operators of the unit. Use the unit only in the way described in this manual. Failure to follow the instruction in this manual may cause wrong operation. 1. -
Page 3: General Description
1. GENERAL DESCRIPTION Thank you for purchasing our product. We know that in today's competitive marketplace, customers have many choices when purchasing laboratory equipments. We appreciate your choosing our quality product. Our stands behind our products and wants to let you know we are here if you need us. Before you use the unit, read this entire manual carefully to understand how to install, operate and maintain the unit in a safe manner. -
Page 4: Graphic Symbols
2. GRAPHIC SYMBOLS BE SURE THAT YOU UNDERSTAND ALL OF THESE SYMBOLS BEFORE OPERATING THE UNIT. Important operating and / or maintenance instruction. Read the accompanying text carefully. This symbol indicates items and procedures that are STRICTY PROHIBITED with regards to the unit. Potential electrical hazards. -
Page 5: Key Features
3. KEY FEATURES • Digital display of temp and time • Auto back up • Over-current protection function • Multi key-in (100Ω(DIN Pt100Ω), KPt100Ω(JPt100Ω), K(CA)) • Precise temperature control • Alarm when timer ends AMPERE METER RESET MAIN POWER • Over-temperature protection •... -
Page 6: Installation
4. INSTALLATION ① Once the product is ② Unscrew the bottom of ③ Lift the box as shown in delivered, place the the box. the picture. DOOR DOOR ④ Unwrap the bag. ⑤ Place the equipment on ⑥ Lift the remaining plastic your desired location. - Page 7 Turn the levelling foot clockwise or counter clockwise to adjust.(FU-xxMH) 50Hz 60Hz Certified Connect power and turn on the main switch (E.L.B)
-
Page 8: Setting And Operation
5. SETTING AND ORERATION ⑨,⑩ ① ⑪ /LOC ⑦,⑧ ⑫ MODE ⑬ START ② ③ ④ ⑤ ⑥ /STOP HEATER TIME ① LCD display ② Program mode ③ Heater ④ Timer ⑤ Auto tune ⑥ Standard mode ⑦,⑧ Shift button (Mute) ⑨,⑩... - Page 9 (1) Stand by Tm:**:** ready (2) Stand mode <SV Input> 0450 tm:00:0 Push the <set parameter> for operating with set Temp and set Time. Tm:00:06 ready Set Temp and Time use ◀,▲,▶,▼ Tm:00:06 RUN.. Push the <set parameter> to return stand by.
- Page 10 sv: 450 auto tuning *** Push the <start/stop>, <LOC> means operating with LED, <TIME> <HEATER> means heater, means to reach set temp. (3) Program mode p1‐step1 press start key .. <PV : Present Temp , P1-Step 1 : Pattern No .1 and Step No .1 Push <PRG/LOC>...
- Page 11 (4) Program mode Push the <PRG /LOC > for 1 sec and you will set the screen of pattern , Use <AT▶>,<▲> for pattern, <START/STOP> for selection. P1‐step<1> ts:00:30 0040 tm:00:30 <P1-Step1 : Pattern No.1 and Step No.1, SV : Setting Temp, TM : Setting Time> When you change setting push the <MODE>...
- Page 12 P1‐step<4> ts:00:00 0100 tm:00:00 Input "0" to TS,TM and push the <MODE>, It finish step of pattern refer to below screen. RUN CYCLE NO: [000] AFTER END, [NEXT] Setting repeat time with ◀,▲,▶,▼ Max 999times. Push the <PRG/LOC> for select “STOP”,”NEXT”,”MENU”. p1‐step1 press start key ..
-
Page 13: Specifications
6. SPECIFICATIONS 1500℃ MUFFLE FURNACE - 4/11/22/36MH AMPERE METER RESET MAIN POWER Model SH-FU-4MH SH-FU-11MH SH-FU-22MH SH-FU-36MH Max Temp 1500℃ (2732℉) Programmable Controller Temp Controller R type Sensor Heater Capa 5000 W 7600 W 9600 W 11 KW 4.5 L 11 L 22 L 36 L... - Page 14 MEMO...
