Version : 2016 Rev.0

AUTOCLAVE

SH-AC-60M/80M/100M/128M

Table of Contents

Need help?

Do you have a question about the SH-AC-60M and is the answer not in the manual?

Questions and answers

syed abbas

June 5, 2025

how to change temp from Fahrenheit to centigrade in sh scientific autoclave sh ac150M

Summary of Contents for SH Scientific SH-AC-60M

Page 1 Version : 2016 Rev.0 AUTOCLAVE SH-AC-60M/80M/100M/128M...
Page 2: Table Of Contents
TABLE OF CONTENTS Keep this manual on-hand so it can be used by all operators of the unit. Use the unit only in the way described in this manual. Failure to follow the instruction in this manual may cause wrong operation. 1.
Page 3: General Description
GENERAL DESCRIPTION 1. GENERAL DESCRIPTION Thank you for purchasing our product. We know that in today's competitive marketplace, customers have many choices when purchasing laboratory equipments. We appreciate your choosing our quality product. Our stands behind our products and wants to let you know we are here if you need us. Before you use the unit, read this entire manual carefully to understand how to install, operate and maintain the unit in a safe manner.
Page 4: Graphic Simbols
GRAPHIC SIMBOLS 2. GRAPHIC SIMBOLS BE SURE THAT YOU UNDERSTAND ALL OF THESE SYMBOLS BEFORE OPERATING THE UNIT. Important operating and / or maintenance instruction. Read the accompanying text carefully. This symbol indicates items and procedures that are STRICTY PROHIBITED with regards to the unit. Potential electrical hazards.
Page 5: Key Features
KEY FEATURE 3. KEY FEATURE TEMP & TIME CONTROL SYSTEM DOOR MODE • Digital display of temp and time • Auto back up • Perfect sterilization • Multi key-in (100Ω(DIN Pt100Ω), KPt100Ω(JPt100Ω), K(CA)) • Precise temperature control • Alarm when timer ends 0.15 PRESSURE GAUGE 0.05...

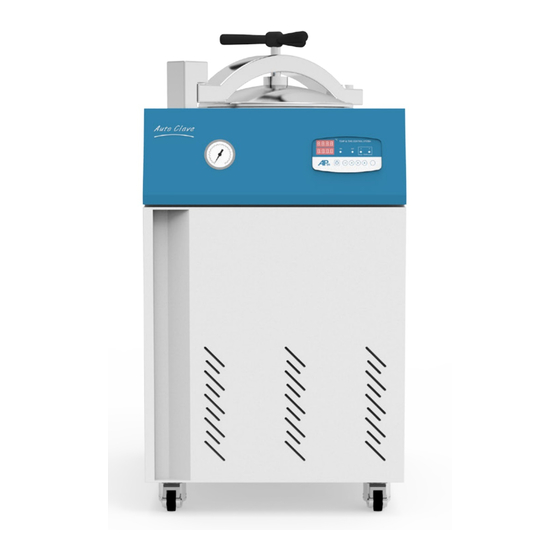

Page 6: The Outward
THE OUTWARD 4. THE OUTWARD Locker handle Over pressure relief hole 0.15 PRESSURE GAUGE 0.05 0.25 CL.1.5 Temp controller Pressure gauge Steam bottle Pressure normalizing valve ELB breaker Drain valve Electronic power cable <AC-60M/80M/100M> Locker TEMP & TIME CONTROL SYSTEM DOOR MODE <AC-128M>...
Page 7: Installation
INSTALLATION 5. INSTALLATION ① Once the product is ② Unscrew the bottom of ③ Lift the box as shown in delivered, place the the box. the picture. package on a flat location. DOOR DOOR ④ Unwrap the bag. ⑤ Place the equipment on ⑥...
Page 8 INSTALLATION ⬅ Levelling castor Turn the levelling castor clockwise or counter clockwise to be flat. Serial label shows the electric power specification of the unit. Connect power and turn on the main switch (E.L.B) Lock Pressure normalizing valve Unlock Make sure if the manual normalizing valve is on 'close' position before use. It will cause pressure failure if the valve is not closed.
Page 9 INSTALLATION TEMP & TIME CONTROL SYSTEM DOOR MODE <Position of OVER TEMP Dial Inside Control Panel> OVER TEMP dial is placed inside the control panel. OVER TEMP should be set at least 30℃ higher than the target set temp. If the TEMP CONTROLLER set value is 120℃, OVER TEMP Dial must set over 150℃. (Default value is 200 ℃) Lock Lock...
Page 10: Setting And Operation
SETTING AND OPERATION 6. SETTING AND OPERATION (1) TEMP mode Step1. To set the TEMP MODE, press and hold the MODE button for 3 sec. Temp Controller Display Step2. Set your target temperature. Step3. Press MODE button for 3 sec Temperature to get out of mode-setting or setting...
Page 11 SETTING AND OPERATION (4) Start the unit Press for 3 sec and the unit will start running with lamp ON. Make sure that you should press always to run the unit. Lamp A and P's status is nothing to do with this product so you do not need to pay attention for A/P Lamp status in this product.
Page 12 SETTING AND OPERATION (7) Checking the remaining operation time and the output of heater ➡ You can check the output of heater by clicking "AT" button for 1 sec. ➡ You can check the remaining operating time by clicking "AT" button one more time. ➡...
Page 13: Specification
SPECIFICATIONS 7. SPECIFICATIONS AUTOCLAVE - 60M/80M/100M Model SH-AC-60M SH-AC-80M SH-AC-100M Temp Range Max 130℃ (266℉) 0.1177 to 0.1274 MPa (1.2 to 1.3 kg/cm Using Press Microprocessor Digital PID Controller Temp Controller 00.00 to 99HR 59MIN (MIN SEC) selectable Sterling Time Mechanical type 0 to 0.3 MPa...
Page 14 SPECIFICATIONS AUTOCLAVE - 128M TEMP & TIME CONTROL SYSTEM DOOR MODE Model SH-AC-128M Temp Range Max 130℃ (266℉) 0.1177 to 0.1274 MPa (1.2 to 1.3 kg/cm Using Press Microprocessor Digital PID Controller Time Controller 00.00 to 99HR 59MIN (MIN SEC) selectable Sterling Time Mechanical type 0 to 0.3 MPa Pressure Gauge...
Page 15: Troubleshooting
TROUBLESHOOTING 8. TROUBLESHOOTING Symptom Passible Causes of Problem Unit does not work Check power is connected well. Press for 3 sec. Temperature does not rise Press AT button for 5 sec. Check OVER TEMP set value. Press for 3 sec. Press AT button for 5 sec.
