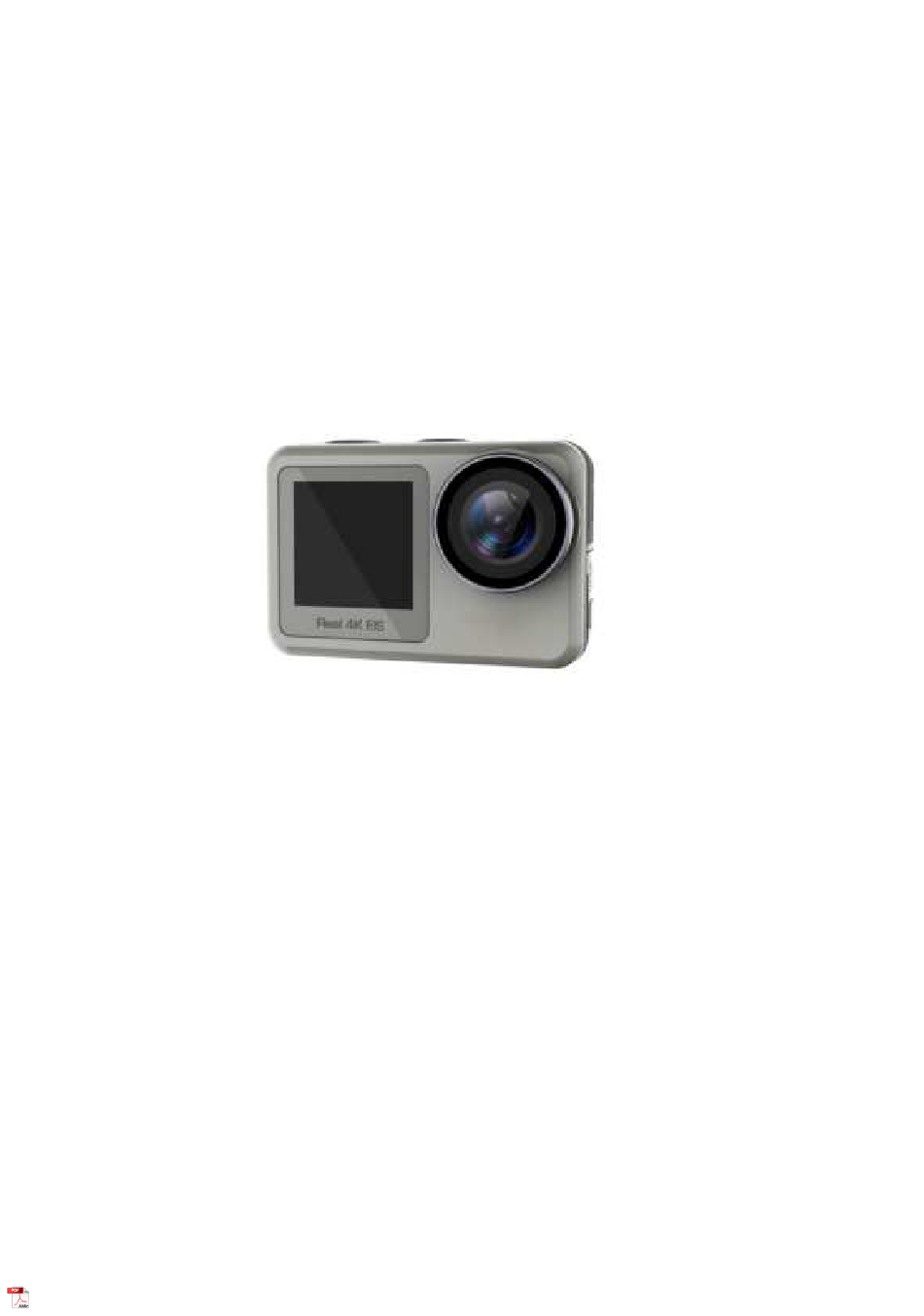

- Page 1 FS01A...
- Page 2 Action Camera Usual Manual Forward Thank you for purchasing this camera. Please carefully read the manual before using, and keep it at a safe place for future reference. The information covered in this use manual is based on the latest information at the time of its preparation.
- Page 3 > Ultra HD display to show and play back the great video shots > Battery removable, easy to replace the battery to extend the use time > Available to shoot photos or recording videos while charging > HD wide-angle lens >...
- Page 4 1. OK Button 5. HDMI 9.Lens 13. Battery 2.Microphone 6.USB 10.Screen 14.TF card 3. Mode Button 7. Power on/off button 11.Charging Indicator 15.Tripod mount 4. Speaker 8.Dual Screen 12. Working Indicator 4.Indicator Working Indicator 1. LED flashing during recording 2. LED turns off when turn off...
- Page 5 1. LED is on during charging Charging Indicator 2. LED is off after finishing charging 5.Button Instruction 1.Long press the power button ,the power indicator is on and shot press to turn on wifi ; Power button 2.Long press the power button to turn off; 3.To made down choose in the menu 1.Recording/Shoot(Including slow recording/Time-lapse video / loop / continuous shooting / timing / loop)Mode...
- Page 6 Picture 1 Picture 2 1.Recording Mode 2.Recording Time 3.Available Recording Time 4.Voice Recording State 5.Battery capacity 6. Playback (touch the screen to enter the playback interface) Resolution display (touch the screen to enter the video mode adjustment) 8. Menu settings (touch the screen to enter the video and system menu settings) 9.
- Page 7 1. Photo mode 2. Quantity of photos 3. Available photos quantity 4. Battery icon 5. Photo playback 6. Resolution display (click this icon to enter photo mode adjustment) 7. Settings menu (click this icon to enter the picture and system menu settings) 8. Photo settings menu 6.3 Shortcut mode 6.3.1 After turning on the camera, long press the video confirmation button to display the...
- Page 8 Recording Mode Photo Mode 6.3.3 After turning on the camera, short press the M key to switch to the camera mode (or slide the video/photo mode on the left or right side of the recording interface screen to record or take a photo operation), long press the video button to display the interface of Picture 2 (or click on the touch screen) Picture 1 shows the interface of picture 2) The shortcut menu can be used for quick operation.
- Page 9 Video preview interface Photo Preview interface Playback /video setting/photo setting 2. How to delete video/photo files a. Video file delete： a-1 Button operation deletion step: short press M key to switch the mode menu to “Playback” as shown above, press ok to enter the following picture “Video playback preview interface”, short press power button to move to select icon, long press OK to confirm entering file to delete the selection, short press the ok button to select the file to be deleted,...
- Page 10 interface”, touch the icon, then touch to select the file to be deleted, and finally click the icon, then “Delete interface” pops up, click delete. Video playback preview interface Picture playback preview interface Delte Interface 3. Short press power button to turn on Wi-Fi, and short press again to turn off Wi-Fi. The Wi-Fi name is different for each item and all password is 1234567890.Below picture is only for reference.
- Page 11 WIFI turned on but not connected WIFI have been connected Computer download photo/video After the camera is connected to the computer and enters the removable disk mode, a removable disk will be added in the “My Computer” window. The captured photos or videos will be stored in the “JPG\VIDEO” directory on the removable disk.
- Page 12 Android/IOS Note:You can search “iSmart DV” and download the app from app store for IOS and Google play for Android 10. Specification...
- Page 13 Specification Sensor IMX278/IMX317/IMX078/IMX274 apolegamy Lens 170HD wide-anglLense Screen 2.0" LCD iSmart DV Picture Format JPEG Video Format Compression H.264 Format Port Micro USB2.0, HDMI Storage MAX to 32G, Micro SDHC Power 5V/1A Support Speaker Built-in Battery Capacity 1350mAh (Real 1000mAh) Recording Time 4K/About 85Min Charging Time...
- Page 14 FCC Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
