SOMLOS G1S User Manual

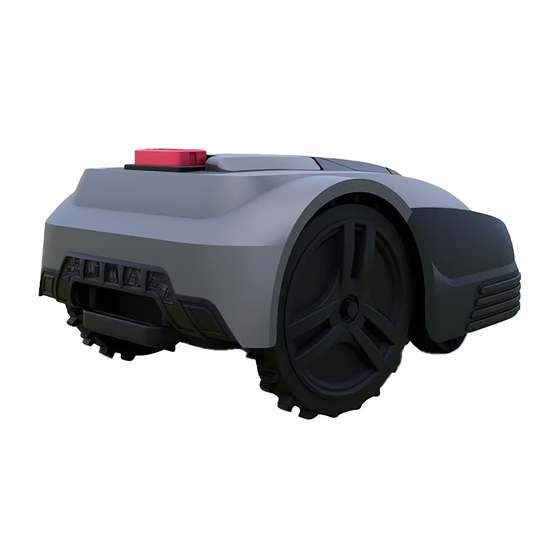

Robotic lawn mower
Hide thumbs

Advertisement

Quick Links

Download this manual
Robo�c Lawn Mower
S

Advertisement

loading
Need help?

Need help?

Do you have a question about the G1S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SOMLOS G1S

Summary of Contents for SOMLOS G1S

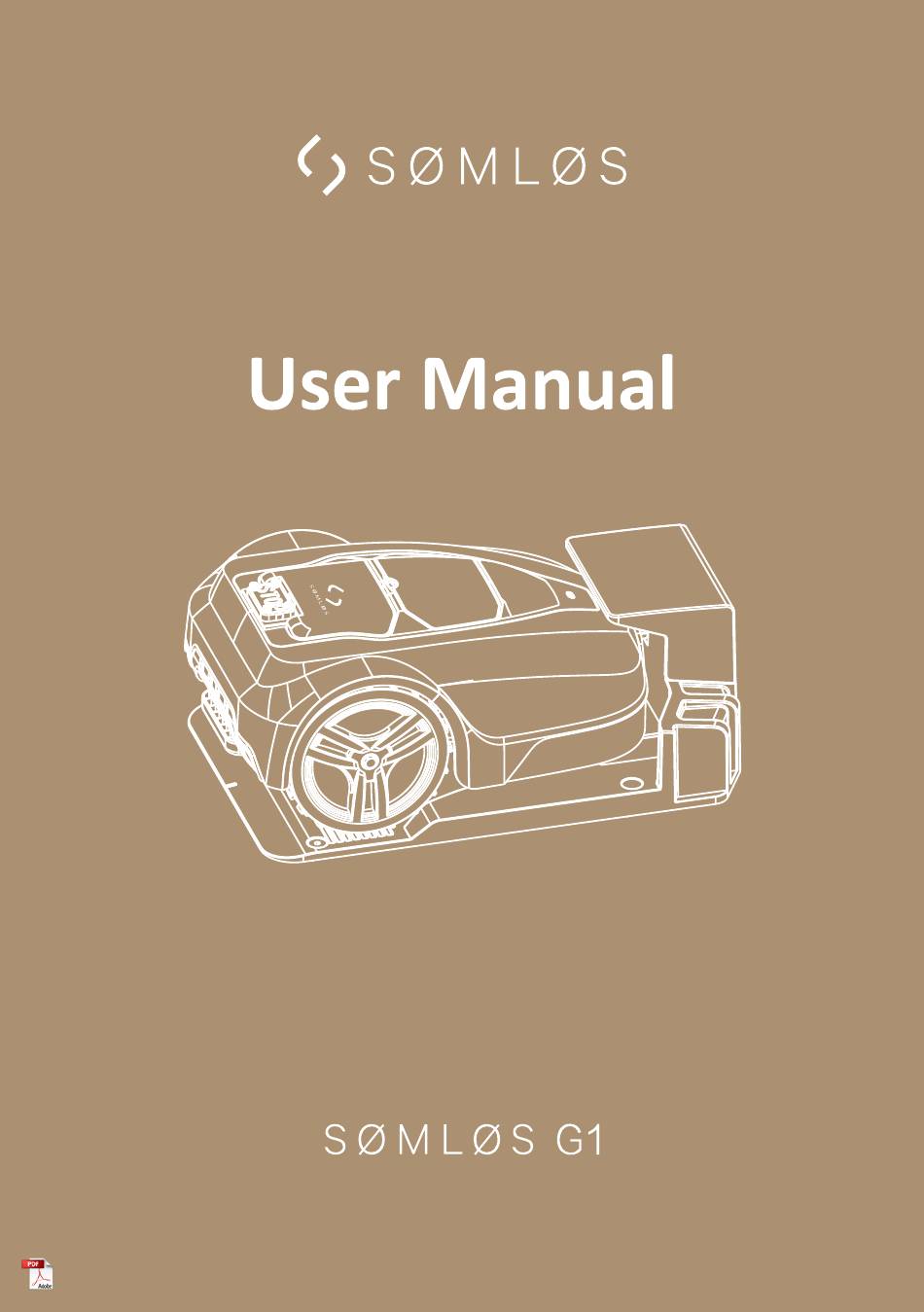

  • Page 1 Robo�c Lawn Mower...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Preface Safety Instruc�ons Transport Know Your Mower 04-05 Guide Line Map Placement Of Dock Sta�on Connec�on Of Boundary Wire And Dock Sta�on 07-08 Installa�on Of Boundary Wire 09-10 Operate Mower Charging Mower Instruc�on Of Mower 12-19 Mower Maintenance Change Cu�ng Blades Mower Storage Technical Data...

  • Page 3: Preface

    P P r r e e f f a a c c e e 1. Congratuations on your choice of an exceptionally high quality product. To get the best performance, your SØMLØS G1s requires knowledge of its function. Operator's Manual contains important information about your robot mower, how you install it and how you use it.
  • Page 4 2. Carry by the handle at the rear under the mower. Carry the mower blade plate away from the body. Correct means Incorrect means Watch out your hand and feet Read the manual carefully Don’t ride and sit Pick up stones, branches, tools etc.

  • Page 5: Know Your Mower

    2 . Know Mower 04 04...
  • Page 6 1. Emergency bu�on 15. Keyboard 16. Charging electrodes 2. The control panel cover 17. Signal indicator light 3. Cu�ng height adjustment 18. Power connector cover 19. Boundary connector 4. Rain sensor 5. Charging socket 20. Dock sta�on base 6. Front wheel 21.

  • Page 7: Guide Line Map

    3. Guide Line Map As below is a general guide line map how to install the mower including placement of the dock sta Min.50cm Min.35cm Min.2m Min.30cm Min.1.2m Min.1.2m Boundary Wire Max. 1.5cm Arc angle Obtuse angle Right angle Sharp angle Cross...

  • Page 8: Connec�On Of Boundarywire And Dock Sta�On

    Min. 30cm straight wire Min.2m Make sure there is minumum 2 metres straight wire in the front and 30cm straight wire in the 5. Connec�on Of BoundaryWire And Dock Sta�on Fig.2 Fig.1...
  • Page 9 200cm Fig.3 Fig.4 Follow up Fig.1 to Fig. 4 to connect the boundary Connect the adapter power cord to a 100-240 V wall socket. LED indicator status of charging sta�on: Solid red light: Power supply normal; blue light: Mower gets charging; Solid blue light: Loop signal normal or fully charged.

  • Page 10: Installa�On Of Boundary Wire

    a llation of Boundary Wire Insta a. ig trees, poles beds and those can be an obstacle for the mower and burying the boundary wire. s should not be mowed, use the boundary wire to protect them. c. A big tree with roots that can be an obstacle for the mower should be protected by burying the boundary wire.
  • Page 11 e. Use a hammer to knock the pegs in the ground. care when pegs and make sure the wire is on the lawn; the distance between pegs should be approximately 100cm. The distance between pegs should be 30~50cm f. Don’t let the boundary wire 100cm g.
  • Page 12 1. Place the mower in the area that inside the boundary wire. then it enters into menu. Inital default password is ‘AAAA’ and c will work The mower will go back to dock sta�on for charging when it is out of power...

  • Page 13: Instruc�On Of Mower

    9. Instruc�on Of Mower Control Panel Time, date, ba�ery, Wifi 20 : 13 Oct . 19 Status Power bu�on: RETURN bu�on Mowing Power on/off. OK bu�on START bu�on: UP, DOWN, LEFT, Start mowing. RIGHT bu�ons. A, B, C, D for PIN code. HOME bu�on: Back to sta�on.
  • Page 14 Status Status Meaning Mower is ready to work. Standby Mower is mowing automa�cally. Mowing Mower is mowing spirally. Spot Mow Returning Mower is going back to sta�on. Charging Mower is charging. Charge to work Mower is charging and con�nues to work when ba�ery is recharged. Mower is stopped manually.
  • Page 15 Start 1. Press START bu�on under standby or 20 : 13 Oct . 19 charging mode. 2. Close the hatch to start. 3. If the ba�ery is lower than 70% in charging mode, the mower enters ‘charge to work’ mode and should get Mowing charged to 90% before mowing.
  • Page 16 Back to sta�on 1. Press HOME bu�on for 3s. 20 : 20 Oct . 19 2. Close the hatch to go back to sta�on for charging. Returning Charging 1. Place the mower in the sta�on (or press HOME bu�on for 3s). 2.
  • Page 17 Spot Mow 1. Place the machine inside the yard. 20 : 13 Oct . 19 2. Press OK bu�on to enter sub-menu 1. 3. Select ‘spot mode’. 4. Close the lid to start. Spot mowing Rain Mode 1. Press OK bu�on to enter sub-menu 1. 2.
  • Page 18 PIN Code 1.PIN code should be entered a�er powering on, pressing STOP bu�on, and Enter PIN Code before clearing error status and chang- ing PIN code. 2. If the PIN code is incorrect, the screen will show ‘PIN wrong, please retry.’ 3.
  • Page 19 Error Log 1.Press OK bu�on to enter sub-menu 1. 2.Select ‘se�ng’ to enter sub-menu 2. 3.Select ‘informa�on’ to enter sub-menu 3. 2020 - 10 - 19 20:03 4. Select ‘error log’. FAULT_LIFTED 5.The past 10 records (including date, �me 2. 2020 - 10 - 19 20:03 and error message) will be shown.
  • Page 20 Error Error message Cause Solu�on Mower outside Mower is outside the yard. Place the mower inside the yard. Mower li�ed Mower is li�ed away from the Place the mower on the ground. ground. Mower �lted Mower is �lted too much. Place the mower in flat yard.
  • Page 21 10. Mower Main n tenance 1. Check and clean mower regularly once a week. start using the m blades should be checked once a month. the blade plate must rotate easily. edges should not be damaged. life grass, soil, lawn, etc. Working with dull blades gives a poor mowing results, which needs more power smaller area.
  • Page 22 e e C C u u t t t t i i n n g g 3. Turn mower upside down. 4. Rotate the skid plate so that its hole aligns with the blade 5. Unscrew the blade. Use a 6.

  • Page 23: Technical Data

    Data Technica SØMLØS G1s Length x Width x Height 50cmx35.5cmx24cm Weight 18 Kg Adapter 29.4 V / 2.0A @ 100~240 V/ Boundary Wire Length 100m Blade Motor BLDC Blade Motor Speed 3200~3500rpm Wheel Motor BLDC Bump Sensor Rain Sensor...
  • Page 24 SØMLØS G1s+ Length x Width x Height 50cmx35.5cmx24cm Weight 19 Kg Adapter 29.4 V / 2.0A @ 100~240 V/ Boundary Wire Length 150m Blade Motor BLDC Blade Motor Speed 3200~3500rpm Wheel Motor BLDC Bump Sensor Rain Sensor Emergency Switch Measured Noise Level...
  • Page 26 Support: support@somlos.com Visit us here: www.somlos.com...

This manual is also suitable for:

G1s+
