TechNexion TEVI Series Quick Install Manual

INNOVATORS OF TECHNOLOGY

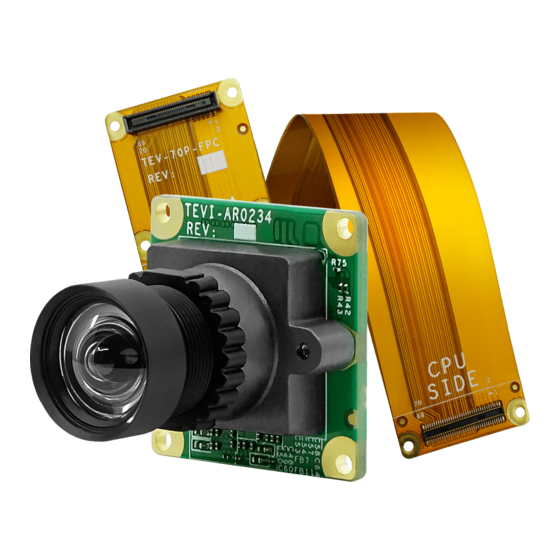

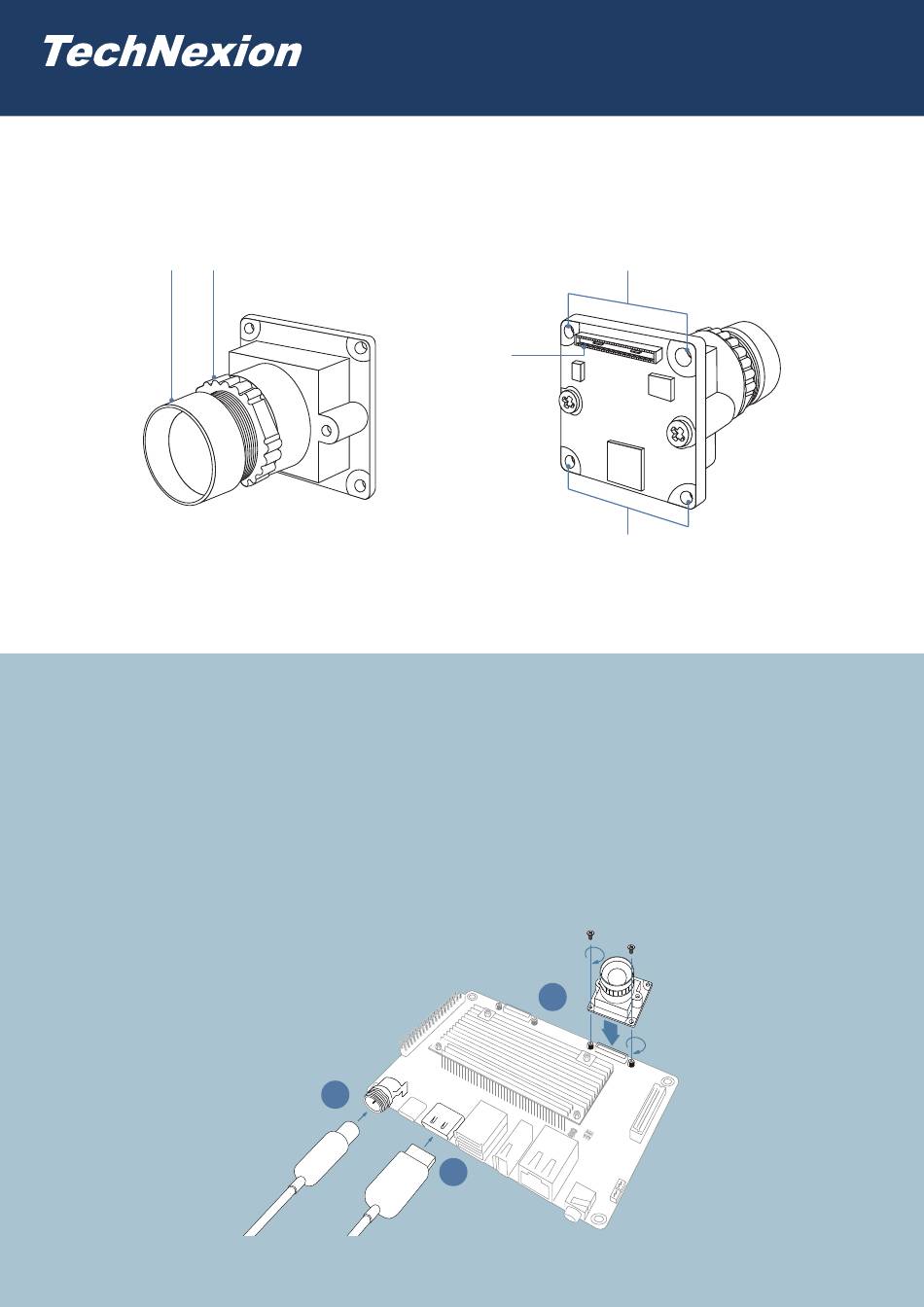

1. Identifying the Parts

Lens Lock Ring

2. How to Assemble the Camera

To assemble the camera module to the evaluation kit, you may connect the camera module directly to the MIPI CSI-2 interface on the evaluation kit or
extend the camera module using an FPC cable depending on the requirement. For more detailed MIPI CSI-2 connector information, refer to the manual
of the evaluation kit.
• Direct Connection
1. Connect the MIPI CSI 2 connector on the rear panel of the camera module (opposite side of the lens) to the MIPI CSI 2 connector on the
evaluation kit, then tighten it using the screws. For the detailed position of the MIPI CSI2 connector, please refer to the evaluation kit's manual.
2. Connect to a monitor using an HDMI cable.
3. Connect to a 12V/2A power adapter with a size of 2.1x5.5mm plug connector.
MIPI CSI-2
Connector
3
2
Quick Install Guide
Mounting Holes
Mounting Holes
1
TEVI Series Camera Module
