LIGHT-OIL BURNERS TWO STAGES PROGRESSIVE
SK070003_A_gb
OR MODULATING
BRUCIATORI DI GASOLIO BISTADIO PROGRESSIVI O MODULANTI
FGP 50/M EVO
Light-oil burners two stages progressive or modulating operation (if equipped with addition of optional
modulation kit PID and probe; to guarantee an ideal proportionality of the power supplied to the thermal
load).
Composed by: fan at high pressurisation at reverse blades and combustion head with adjustment at high
efficiency and high flame stability.
Compact overall dimensions and disposition rationalized of the components with accessibility facilitated for
the operations of setting and maintenance.
Complete of nozzle, flexible pipes and line filter.
Complete of flange and gasket for installation on generator.

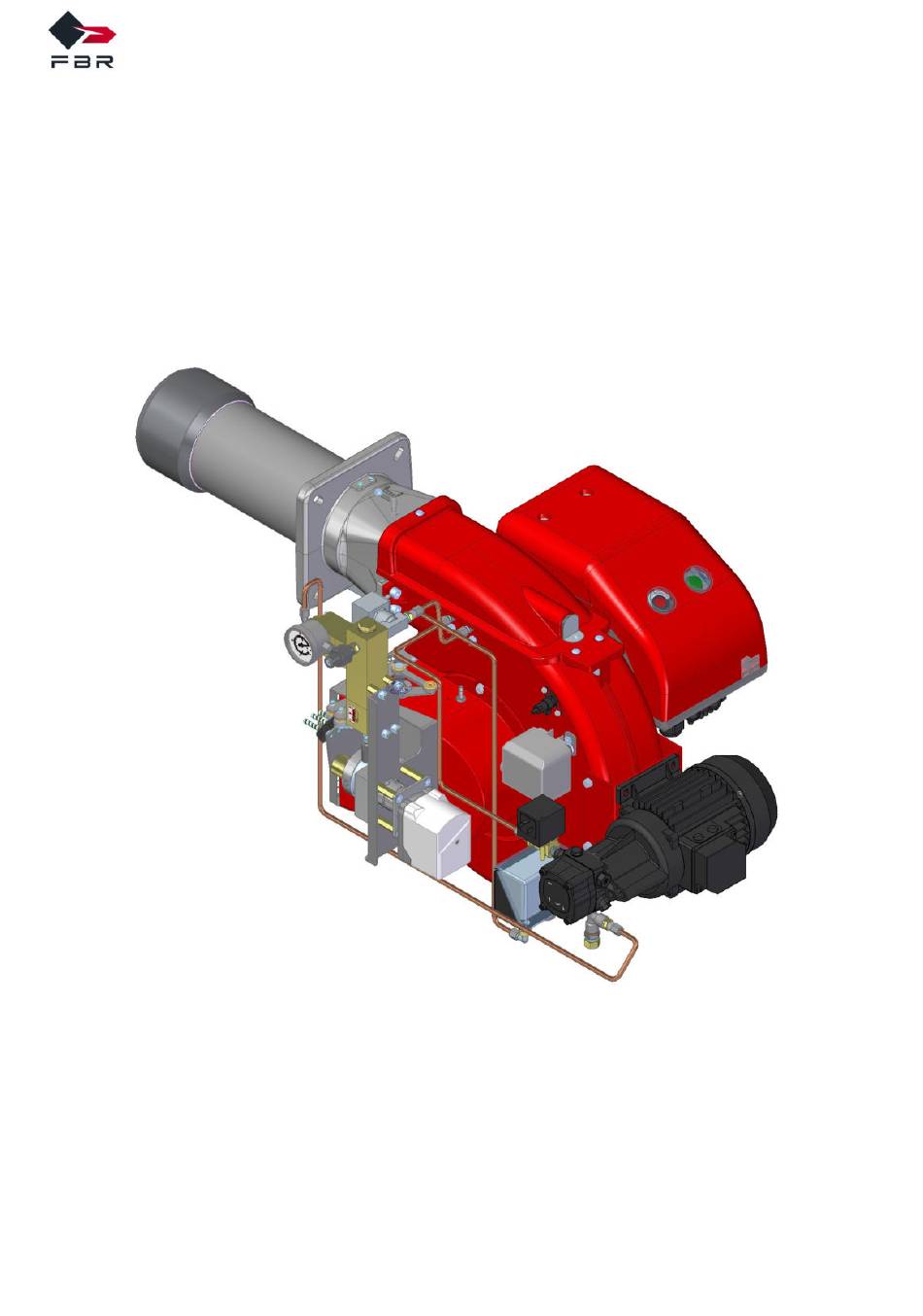

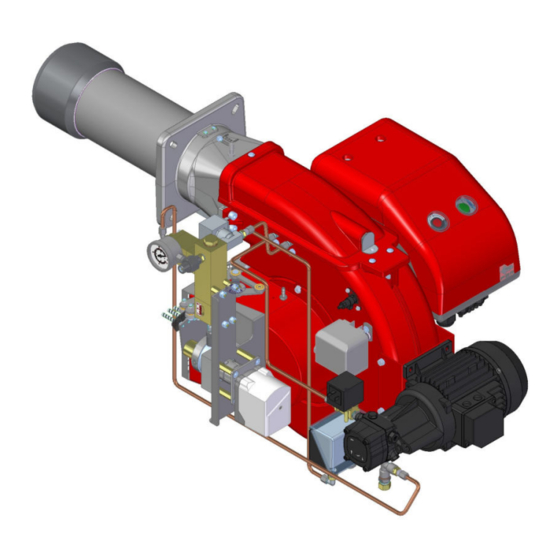

FGP 50/M EVO
Fig. 1
FGP 50/M EVO
