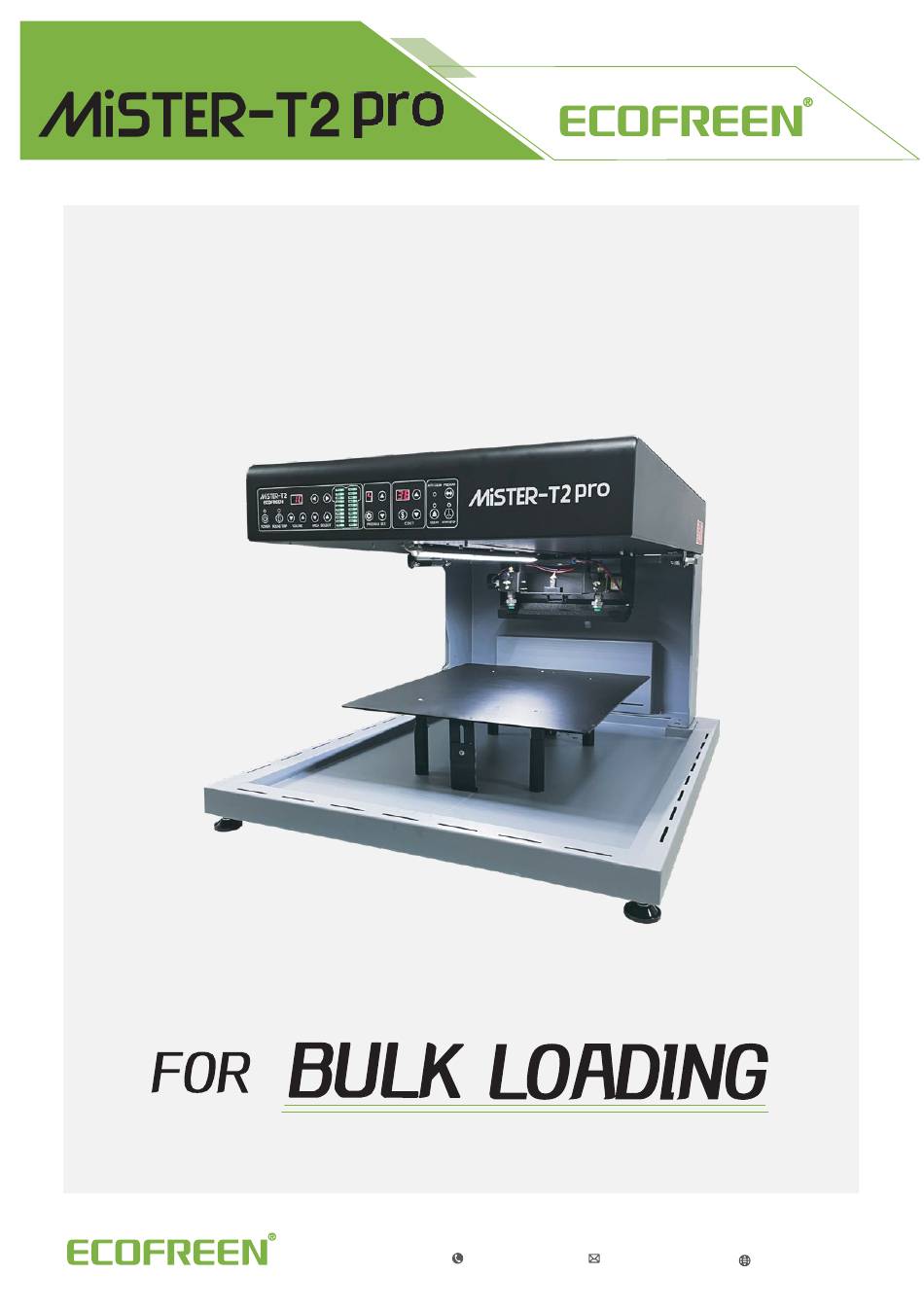

- Page 1 OPERATOR’S MANUAL Automatic Pretreat Spray Machine 469-702-0112 info@ecofreen.us www.ecofreen.us...
- Page 2 When using your machine, basic precautions should always be followed, including the following: Read all instructions. Use the Mister T2 Pro only for its intended use. Mister-T2 Pro has to be operated with a precoating liquid for fabrics for DTG printer. Cleaning MUST be done with distilled water only! Other liquids alcohol or solvent may damage pumps or other components of the machine.
-
Page 3: Table Of Contents
- Operator’s Manual 3 Table of Contents Congratulations on your purchase of a pretreat Machine! To work professionally with the machine and start production, please make sure you read this manual carefully. Reproduction of this manual requires written consent. Errors and amendments of technical details excepted; all rights reserved. We are not liable for any direct or indirect damages caused by the use of this product. -
Page 4: Machine Parts Diagram
- Operator’s Manual Machine Parts Diagram < FRONT > Control Panel LED Lamp Two Nozzles Capping Station Platen (16”x20”) Intake Vents < BACK > Main Power Switch Scanner Connector Ventilation Fan Emergency Button Multi-Inlet Selector Valves Ventilation (Ring Blower is required separately) Intake Vents Drain Connector... -
Page 5: Specifications
- Operator’s Manual 5 Specifications Dimensions 640mm(W) x 900mm(L) x 530mm(H) Weight 36kgs Platen Size 40cm x 50cm (16" x 20") Number of Spray Nozzle Two Nozzles Maximum Spray Area 40cm x 50cm (16" x 20") Spray Cycle Time 3 sec ~ 12 sec Power Supply Free Voltage (100V~240V 50/60hz) Power Consumption... -
Page 6: Installation
- Operator’s Manual Installation Gently open the top of the machine and find the accessory box inside of the machine and please check if all the components are in the box. ③ Filter(4ea) ① Drain Tube ⑥ Power Cord ② Manual ⑦... - Page 7 This will collect any excess pretreatment when the machine run. 4) Prepare a bottle with Pretreat Solution If using ECOFREEN UNIVERSAL concentrate, mix the liquid and purified water as below. Universal Water 3L for DARK or Blended...
- Page 8 - Operator’s Manual Installation 6) Put the Filters into The Bottles Please put the filters into the bottles for pretreat liquid or water and turn the valve clockwise to open the preferred valve to spray the liquid or water. CLOSE Liquid ①...
-
Page 9: Ventilation & Scanner (Option)
- Operator’s Manual 9 Installation 7) Ventilation (Option) Ring blower, vent hose & clamps are required separately as below. *Required Ring blower spec* diameter 4”, over 170CFM Ring blower + Filter(option) + Vent Hose & Clamps 8) Scanner (Option) Enable barcode scanning and auto-start mode. **The plug of scanner is left side on the machine. -
Page 10: Barcode Scanning Worksheet
- Operator’s Manual Barcode Scanning Worksheet 1) Please go to the web site - https://wepplication.github.io/tools/barcodeGen/ 2) Refer to the worksheet below and create the barcode (Barcode Type : UPC) x x x x x x x x x x x x Continuous Spraying * EX) 1 or 2 or 3: 10 or 20 or 30 shirts auto spraying Auto Start... - Page 11 - Operator’s Manual 11 Barcode Scanning Worksheet Volume, Spray Spray Spray Spray Auto Continuous Barcode Direction Section Location Section Location Start Spraying 10ml Both Left & Right direction 15ml Left Only cell direction 15ml Right Only cell direction 10ml Both Both Left &...
-
Page 12: Operating Instructions
- Operator’s Manual Operation Instructions Control Panel ⑫ ⑪ ⑭ ⑮ ⑩ ⑬ ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ Understanding the Control Panel Menu 1) POWER ON/OFF BUTTON 2) ROUND TRIP BUTTON : Spray pretreat liquid with bi-direction when the light above is on. Otherwise, it sprays with uni-direction only. -
Page 13: Operation
- Operator’s Manual 13 Operation Instructions Operation 1) Turn on the POWER SWITCH on the back of the machine. * Ensure the emergency button on the left side of the machine is not locked. If the emergency button is locked, unlock by turning the button clockwise. - Page 14 - Operator’s Manual Operating Instructions Operation (continued) 6) BOTTLE SELECT Switch the bottles by turning the desired valve in clockwise. * Only ONE valve can be open at a time. Closed Open 7) CLEANING When you change the bottle to another (to different liquid), please press “CLEAN” BUTTON. Please clean the tubes and nozzles with water in valve #4 in order to flush the tubes of the previous liquids before switching to another liquid.
-
Page 15: Pretreatment Guide
- Operator’s Manual 15 Pretreatment Guide Pretreating a shirt Use the Recommended Spray Volume and Fixation Temperature. 1. Please prepare all equipment to be turned on. Turn on the machine. 2. If pretreatment is already loaded in the tubes, skip steps 2 & 3. Press the clean button to ensure that the pretreatment solution is loaded into the tubes. - Page 16 Poly Blended (Hoodie) Quantity 10-20g 20-35g Volume Level on Volume Level Volume Level Volume Level Volume Level 10~30 10~20 Mister-T2 Pro Spraying Direction Uni-Direction Bi-Direction Bi-Direction Bi-Direction on Mister-2 Pro Time 35-45 seconds 60-70 seconds 90 seconds 90-120 seconds Temperature 293-320℉...
-
Page 17: Volume Chart
* The volume of the pretreat liquid showed on the display is provided for general information purposes only. It does not represent the accurate volume of the liquid. ECOFREEN will have no responsibility for the accuracy of the data and the issue which may arise from using or relying on the information. -
Page 18: Maintenance (Important)
- Operator’s Manual Maintenance DAILY MAINTENANCE Press “CLEAN” button to flush with water and clean the nozzle everyday at the end of work. Never leave the filter exposed to air to prevent filter from drying and clogging. Always put the filter into the pretreat or cleaning water container. MONTHLY MAINTENANCE Please replace the filter every two months. - Page 19 - Operator’s Manual 19 Maintenance Cleaning The Nozzle Step 1 : Press POWER ON/OFF BUTTON on the control panel to switch off. Step 2 : Gently open top lid. Step 3 : Turn the Nozzle Cap Nut to counterclockwise to loosen and dislocate the nozzle. Step 4 : Clean the Nozzle Tip, Cap Nut and Sol Valve using water and wet paper tower.
- Page 20 - Operator’s Manual Maintenance Cleaning The Nozzle (continued) Step 5 : Assemble the Nozzle Tip and the Nozzle Cap Nut as the picture on the right. When assembling Nozzle Tip after disconnecting and cleaning the nozzle, Please make sure the Nozzle Tip’s alignment. Failure to do this will result in the pretreat not being sprayed properly on the shirt.
- Page 21 - Operator’s Manual 21 Maintenance Daily Maintenance : Cleaning at the End of Work ( Step 1 + Step 2) Step 1. Collecting Remaining Pretreat Liquid 1.) Take out the filter from the bottle of pretreat liquid. (Make sure to turn the valve on, otherwise filter will be unable to suck the liquid) Pretreat Liquid...
- Page 22 - Operator’s Manual Maintenance Daily Maintenance : Cleaning at the End of Work ( Step 1 + Step 2) 5.) Place the empty bottle underneath the right side of the nozzle. 6.) Press and hold “CLEAN” button for “3 seconds” until you hear a beep.
-
Page 23: Other Settings
- Operator’s Manual 23 Other Settings How to Adjust Angles of Nozzles 1) Open the top lid and check the current angles. The graduations are marked as the picture below. The Right Nozzle The Left Nozzle Center of the gradations Center of the gradations ** Initial setting of the gradations**... - Page 24 - Operator’s Manual Other Settings How to Adjust Angles of Nozzles (continued) The Left Nozzle The Right Nozzle < Initial setting of the angle (center) of both nozzles > The Left Nozzle The Right Nozzle < After adjusting the angles >...
-
Page 25: Preset
- Operator’s Manual 25 Other Settings How to Create Preset Options 1) SELECT PRESET # Select which preset # you would like to program (1~9) 2) ENTER THE PRESET MODE Press and hold “setting ” button on the control panel for 3 sec. The LED inside of the machine will be turned off and the numbers on the display will be blinking. - Page 26 - Operator’s Manual Other Settings How to Create Preset Options (continued) ③ Spraying Area Full, Middle, Side Pocket Area Start Start Start Start Full Area Middle Area Right Side Right Pocket Step 1. Select start area and press button to save. Step 2.
- Page 27 * The cost of the pretreat liquid showed on the display is provided for general information purposes only. It does not represent the accurate cost of the liquid. ECOFREEN will have no responsibility for the accuracy of the data and the issue which may arise from using or relying on the information.
- Page 28 - Operator’s Manual Other Settings Setting Mode 1) ENTER THE SETTING MODE Simultaneously press and hold button in the COST section on the control panel until both the numbers INDEX Setting# on the control panel (red boxes on the right) are blinking.
- Page 29 - Operator’s Manual 29 Trouble Shooting Problem Possible Reason Solution -Streaking on the shirts - The nozzles are clogged Clean the nozzle/filter after coating - Filters are clogged (refer to maintenance) -Irregular Spraying Replace with new nozzle / Filter -The pump generates - Electronic valve, nozzle or 1.
- Page 30 - Operator’s Manual Warranty Warranty Terms and Conditions has to be operated with a precoating liquid for fabrics for DTG Printer. Cleaning MUST be done with water only! Other liquids alcohol or solvent may damage pumps or other components of the machine. Damages caused by unauthorized liquids are excluded from the warranty.
