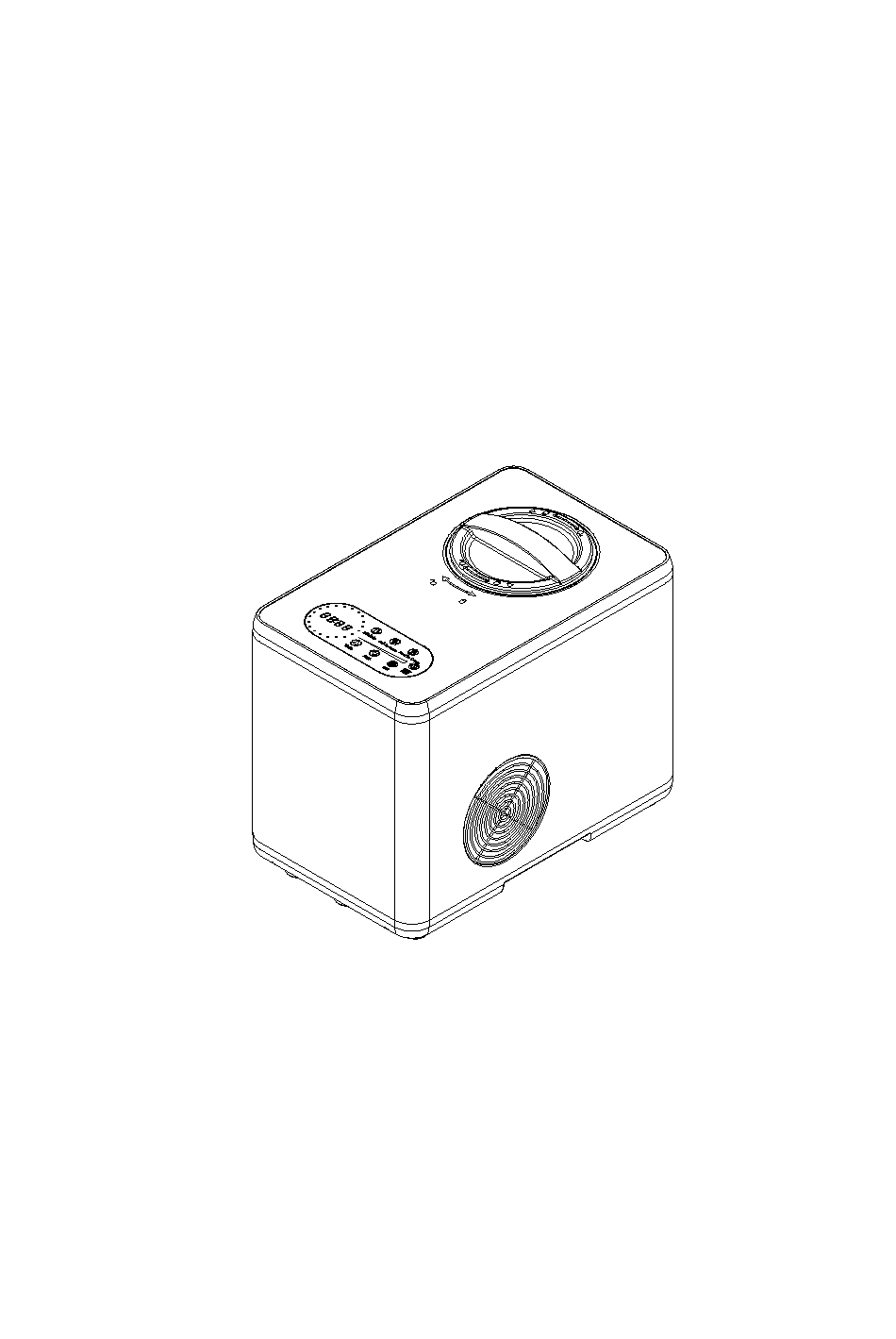

- Page 1 User Manual Compact Ice-cream Maker Model No.: ICM-15S It is important that you read these instructions before using your compact ice-cream maker and we strongly recommend that you keep them in a safe place for future reference.
-
Page 2: Table Of Contents
IMPORTANT SAFETY INSTRUCTIONS………………………………………………. ….2 PREPARING YOUR ICE MAKER FOR USE ………………………………………………………………………3 IMPORTANT SAFETY TIPS GETTING TO KNOW YOUR UNIT ………………………………………………………… ………………………………………………………… OPERATING PROCEDURES & MAINTENANCE ………………… …………………………………………… ………………… …………………………………………… UNPACKING UNPACKING YOUR YOUR MAKER MAKER ……………… ……… …………………………………… ……………… ……… ……………………………………... - Page 3 TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS PREPARING YOUR ICE MAKER FOR USE Your safety and the safety of others are very important. We have provided many important safety messages manual and your appliance. Always read and obey all safety massages. This is the safety alert symbol: All safety messages will follow the safety alert symbol and the word “DANGER”...
- Page 4 When using electrical appliances, basic safety precautions should be followed to reduce the risk of fire, electric shock, and injury to persons or property. Read all instructions before using any appliance. This appliance can be used by children aged from 8 years and above and persons with ...
- Page 5 – bed and breakfast type environments; – catering and similar non-retail applications. DANGER – Risk Of Fire or Explosion. Flammable Refrigerant Used. Do Not Use Mechanical Devices To Defrost Ice Maker. Do Not Puncture Refrigerant Tubing. DANGER – Risk Of Fire Or Explosion. Flammable Refrigerant Used. To Be ...
-
Page 6: Getting To Know Your Unit
GETTING TO KNOW YOUR UNIT General instruction 1. Measuring Cup 2. Touchpad Control Panel with LED display 3. Ice Cream Shovel 4. Rotation shaft of stir motor 5. Transparent cover 6. Ice Cream Scoop 7. Mixing Paddle 8. Power plug. 9. -
Page 7: Operating Procedures & Maintenance
OPERATING PROCEDURES & MAINTENANCE Touch Control Panel: A. Button to select milkshake function B. Button to select soft ice-cream function C. Button to select hard ice-cream function D. Button to increase the ice cream making time E. Button to decrease the ice cream making time F. - Page 8 CLEANING MAINTAINING YOUR -CREAM MAKER CLEANING MAINTAINING YOUR -CREAM MAKER Before using your ice-cream maker, it is strongly recommended to clean it thoroughly. 1. Turn the transparent cover by counterclockwise, be sure the arrow on lid is lined up with the lock icon on the base, and then you can take the cover out.
- Page 9 How to make the ice-cream Please prepare the material of the ice-cream per your personal food recipe or the attached recipe paper. No need to put the material and the ice-cream mixing bowl into freezer for freezing ahead, this ice-cream maker can freeze the material and make the ice-cream directly.
- Page 10 4/Put back the transparent cover and turn it clockwise to install tightly. Then plug in the unit. 5/Press the Milkshake/Soft Ice Cream/Hard Ice Cream or stir button to select the function, then press the START/STOP button to start or stop the function, also can press the TIME+ or TIME- button to change the duration time a little during the making process.
- Page 11 7/In order to dig out the sphere ice-cream from the bowl by the sphere ice-cream device after the hard ice-cream is made, please take out the paddle when making the hard ice-cream. Use the ice-cream scoop to wipe down the soft ice-cream from the surface of paddle and then make hard ice cream.
- Page 12 3/ When making the soft ice-cream, it may frost between the ice-cream mixing bowl and the ice-cream making house, please wait several minutes to let the frost melt, then take out the ice-cream mixing bowl. 4/ When making the hard ice-cream, it may frost between the ice-cream mixing bowl and the ice-cream making house, please wait longer to let the frost melt, then take out the ice-cream mixing bowl.
- Page 13 If you don’t need the paddle work first to blend the ice-cream material, just move to the next step. 3、The default set is soft ice-cream function, the light is on. press the You can also button to change to hard ice-cream function, press the button to change to ”...
- Page 14 When Milkshake set: Hard Ice Hard Ice Milkshake Soft Ice Milkshake Soft Ice cream cream cream cream START START STOP STOP TIME+ TIME- STIR TIME+ TIME- STIR Milkshake Soft Ice Hard Ice Milkshake Soft Ice Hard Ice cream cream cream cream START START...
- Page 15 When Hard ice-cream set: Hard Ice Hard Ice Milkshake Soft Ice Milkshake Soft Ice cream cream cream cream START START STOP STOP TIME+ TIME- STIR TIME+ TIME- STIR Milkshake Soft Ice Hard Ice Milkshake Soft Ice Hard Ice cream cream cream cream START...
-
Page 16: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Wait for several mins, and then The water between the take the mixing bowl out. The ice-cream mixing bowl ice-cream mixing bowl and Make sure mixing bowl and the can’t be taken out. ice-cream making base are dry before making ice house frozen.
