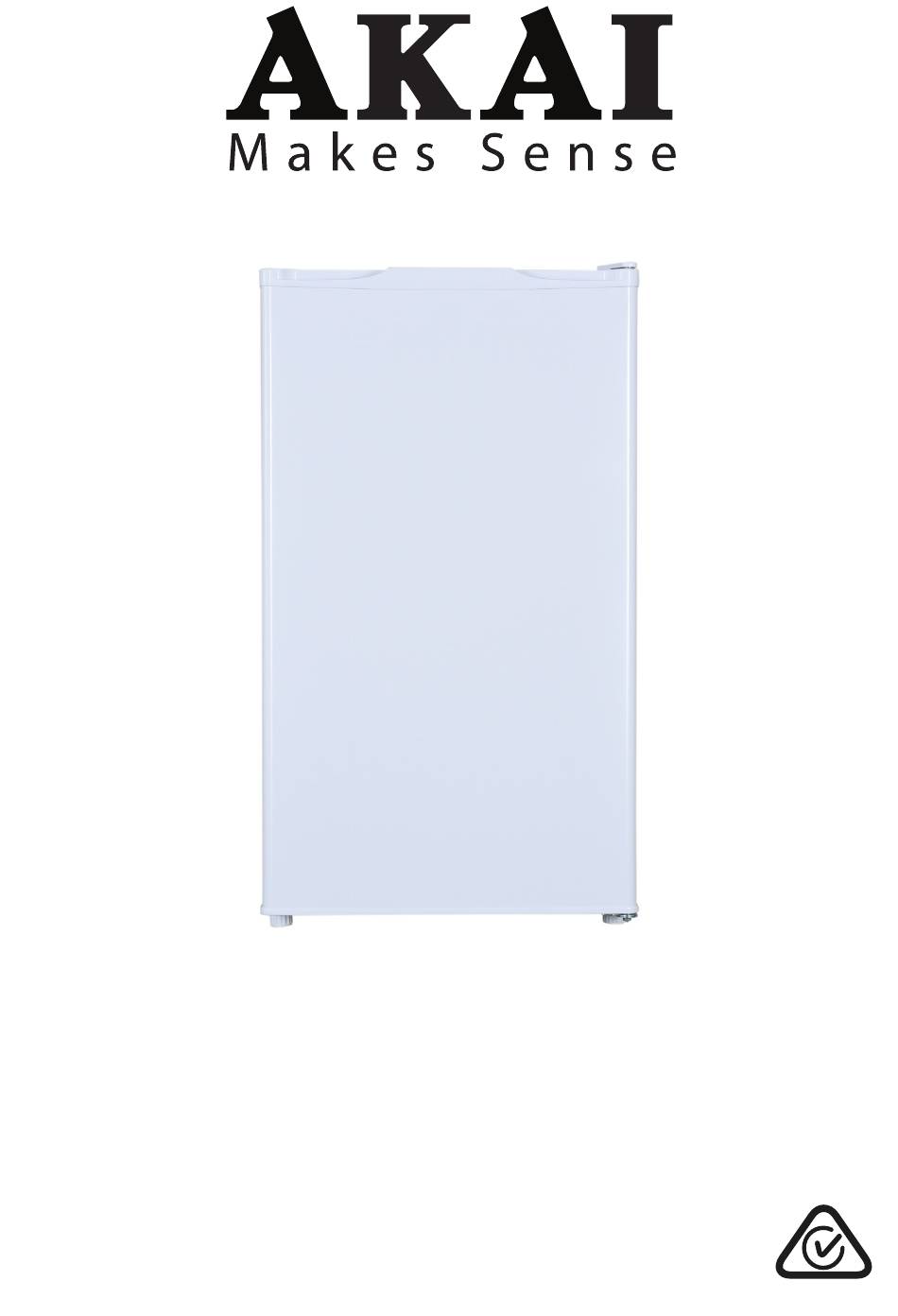

- Page 1 64 L Bar Freezer INSTRUCTION MANUAL MODEL: AK-64-CF AFTER SALES SUPPORT (AU) 1300 886 649 (NZ) 0800 836 761 E209...
-
Page 2: Table Of Contents
Contents General Safety Instructions Product Overview Getting Started Installation Instructions FAQs and Troubleshooting Guide Other Useful Information After Sales Support (AU) 1300 886 649 (NZ) 0800 836 761 | tempo.org/support... - Page 3 Important Safety Instructions READ CAREFULLY AND KEEP FOR FUTURE REFERENCE Read this manual thoroughly before first use, even if you are familiar with this type of product. The safety precautions enclosed herein reduce the risk of fire, electric shock and injury when correctly adhered to.
- Page 4 Important Safety Instructions (Cont.) To reduce the risk of fire, electric shock or injury, always follow basic safety precautions and accident prevention measures when using this appliance, including the following: Electrical safety • Voltage: Plug the appliance in a 220 – 240 V, 50 Hz, properly earthed power outlet, which must be in good working order.
- Page 5 Important Safety Instructions (Cont.) Cleaning and maintenance • Disconnect: Unplug the appliance before cleaning or servicing. Failure to do so can result in electric shock, injury or death. Do not connect or disconnect the plug when your hands are wet. •...
-
Page 6: Product Overview
Product Overview Scope of delivery Bar freezer Other inclusions (not shown) Thermostat Door reversal hardware bag Freezer drawers Instruction manual Warranty certificate Levelling feet NOTE: Due to continued product improvement, images and illustrations in this manual may vary slightly from the product purchased. All images in this manual are for reference purposes only. -
Page 7: Getting Started
Getting Started Unpacking • Packaging materials: This product has been packaged to protect it against transportation damage. Remove all packaging materials from around and inside the appliance and keep the original packaging carton and materials in a safe place. It will help prevent any damage if the product needs to be transported in the future, and you can use it to store the appliance when it is not in use. -
Page 8: Installation
Installation Space requirements • Door opening: Place the unit so there is enough Fig. 1 space for the door to open (Fig. 1). • Clearances: Ensure that air can circulate freely around the back of the cabinet, which is necessary to cool the compressor and condenser. - Page 9 Installation (Cont.) Electrical connection • WARNING! It must be possible to disconnect the appliance from the mains power supply; the plug must therefore be easily accessible after installation. • Before plugging in your new bar freezer, let it stand upright for at least four hours This will allow the refrigerant gases to settle into the compressor and reduce the possibility of a malfunction in the cooling system.
-
Page 10: Instructions
Instructions Temperature setting The temperature control (Fig. 5) is located inside the Fig. 5 appliance, above the drawers. It has 3 settings: “MIN”, “NORMAL” and “MAX”. “MIN” is the warmest setting and “MAX” is the coldest setting. • The first time you turn the unit on, set the temperature control to the coldest setting. - Page 11 Instructions (Cont.) Saving energy • Locate the bar freezer in the coolest area of the room, away from heat-producing appliances and out of direct sunlight. • Do not line the freezer shelves or drawer with aluminium foil, wax paper or paper towelling.
-
Page 12: Faqs And Troubleshooting Guide
FAQs and Troubleshooting Guide If you experience a problem with your bar freezer, check in the following table for solutions to help you solve the problem. If after these checks you still have a problem with your bar freezer, call our after sales support centre for advice. CAUTION: Before troubleshooting, disconnect the power supply. - Page 13 FAQs and Troubleshooting Guide Problem Possible cause and solution Select a lower temperature setting. Check that the door is closed completely and that the door gasket The com- is clean and seals properly. pressor runs continuously, Check that ventilation openings are not obstructed. or turns on If the freezer was recently disconnected for some time, it will need and off very...
-
Page 14: Other Useful Information
Other Useful Information WARNING! Before defrosting or cleaning the bar freezer, ensure it is switched off and disconnected from the power supply. Failure to do so can result in electric shock or injury. Defrosting the bar freezer • For efficient operation and minimum energy consumption, defrost the bar freezer when the frost on the freezer walls is building up;... - Page 15 Other Useful Information (Cont.) WARNING! • Never clean the unit with an abrasive, acid, oil or solvent based cleaning agent, or with abrasive pads or scourers. Never use flammable fluids or sprays for cleaning as the fumes from these substances can create a fire hazard or explosion. •...
- Page 16 Other Useful Information (Cont.) 4. Remove the top left screw cover (Fig. 9). 5. Move the core cover from the left to the right side (Fig. 10). Then, carefully remove the door and place it on a padded surface to prevent it from scratching. Fig.
- Page 17 Other Useful Information (Cont.) 7. Remove the freezer door gasket (the rubber seal around the edge of the door), rotate it, and reattach it (Fig. 13). 8. Refit the bracket for the bottom hinge pin (Fig. 14). Replace both adjustable feet. Fig.
- Page 18 Other Useful Information (Cont.) Technical specifications Model AK-64-CF Rated voltage 220-240V~ Rated frequency 50Hz Rated current 0.7A Climate class Electrical protection class I Insulation blowing agent Cyclopentane Total net volume Refrigerant R600a (31g) Dimensions (approx.) 480 (D) x 500 (W) x 840 (H) mm Net weight (approx.)
- Page 19 Other Useful Information (Cont.) Responsible disposal Packaging materials are recyclable. Please dispose of them responsibly for recycling. At the end of its working life, make the appliance unserviceable by unplugging it from the power outlet and cutting the power cord. Do not throw this appliance out with your household waste.
- Page 20 Warranty returns Should you for any reason need to return this product for a warranty claim, make sure to include all accessories with the product. Product does not work? If you encounter problems with this product, or if it fails to perform to your expectations, make sure to contact our After Sales Support Centre on (AU) 1300 886 649 or (NZ) 0800 836 761 for advice.
