Summary of Contents for Akai AK-82LF

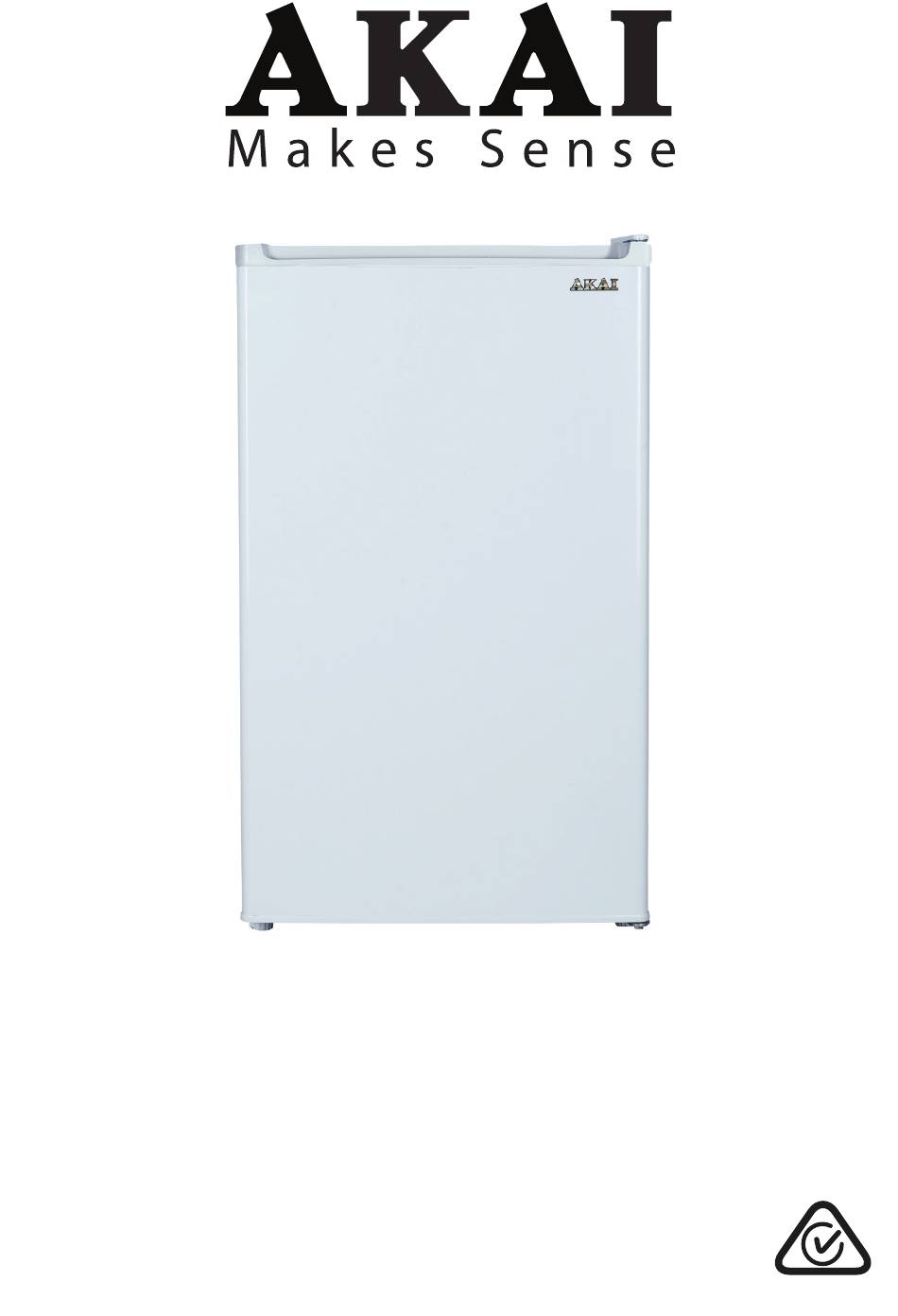

- Page 1 82L Upright Freezer INSTRUCTION MANUAL MODEL: AK-82LF AFTER SALES SUPPORT (AU) 1300 886 649 (NZ) 0800 836 761 E209...
-
Page 2: Table Of Contents
Contents General Safety Instructions Getting Started Installation Product Overview Instructions FAQs and Troubleshooting Guide Other Useful Information After Sales Support (AU) 1300 886 649 (NZ) 0800 836 761 | info@tempo.org... -
Page 3: General Safety Instructions
General Safety Instructions READ CAREFULLY AND KEEP FOR FUTURE REFERENCE Read this manual thoroughly before first use, even if you are familiar with this type of product. The safety precautions enclosed herein reduce the risk of fire, electric shock and injury when correctly adhered to. - Page 4 General Safety Instructions (Cont.) To reduce the risk of fire, electric shock or injury, always follow basic safety precautions and accident prevention measures when using this appliance, including the following: Electrical safety • Voltage: Plug the appliance in a 220-240V, 50Hz, properly earthed power outlet, which must be in good working order.
- Page 5 General Safety Instructions (Cont.) Cleaning and maintenance • Disconnect: Unplug the appliance before cleaning or servicing. Failure to do so can result in electric shock, injury or death. Do not connect or disconnect the plug when your hands are wet. • Flames: Do not let open flames or ignition sources enter the appliance.
-
Page 6: Getting Started
Getting Started Unpacking • Packaging materials: This product has been packaged to protect it against transportation damage. Remove all packaging materials from around and inside the appliance and keep the original packaging carton and materials in a safe place. It will help prevent any damage if the product needs to be transported in the future, and you can use it to store the appliance when it is not in use. -
Page 7: Installation
Installation Space requirements Fig.1 • Door opening: Place the unit so there is enough space for the door to open (Fig.1). • Clearances: Ensure that air can circulate freely around the back of the cabinet, which is necessary to cool the compressor and condenser. -
Page 8: Product Overview
Product Overview Scope of delivery Parts list Upper hinge cover Temperature control Cabinet Freezer drawers (3) Door Door gasket Levelling feet Documentation (not shown) Instruction Manual, Quick Start Guide, Warranty Certificate NOTE: Due to continued product improvement, images and illustrations in this manual may vary slightly from the product purchased. -
Page 9: Instructions
Instructions Temperature setting The temperature control is located at the front of the freezer cabinet and is accessible when you open the door (Fig.3). It has three settings: MIN (the warmest setting), NORMAL and MAX (the coldest setting). Use a coin or a large flat-bladed screwdriver to adjust it. - Page 10 Instructions (Cont.) Storing frozen food • When buying frozen food, only buy quantities that you can store straight away; use an insulated container for your shopping and when you get home, place the food in the freezer immediately. • When storing pre-packed, commercially frozen food, follow the food manufacturer’s instructions for storing the food in a home freezer.
- Page 11 Instructions (Cont.) Power failure • Most power failures are corrected within a few hours and should not affect the temperature inside your freezer, if you minimise the number of times the door is opened. However, if the power is going to be off for a longer period of time, you need to take proper steps to protect your food.
-
Page 12: Faqs And Troubleshooting Guide
FAQs and Troubleshooting Guide If you experience a problem with your freezer, check in the following table for solutions to help you solve the problem. If after these checks you still have a problem with your freezer, call the after sales support line for advice. CAUTION: Before troubleshooting, disconnect the power supply. - Page 13 FAQs and Troubleshooting Guide (Cont.) Problem Solution The external The exterior freezer walls can be warmer than room temperature. freezer This is normal while the compressor works to transfer heat from surface is inside the freezer cabinet. warm. Select a lower temperature setting. Check that the door is closed completely and that the door gasket is clean and seals properly.
-
Page 14: Other Useful Information
Other Useful Information WARNING! Before defrosting or cleaning the appliance, make sure it is switched off and disconnected from the power supply. Failure to do so can result in electric shock or injury. Defrosting the freezer • For efficient operation and minimum energy consumption, defrost the freezer compartment when the frost on the freezer walls is building up;... - Page 15 Other Useful Information (Cont.) WARNING! • Never clean the unit with an abrasive, acid, oil or solvent based cleaning agent, or with abrasive pads or scourers. Never use flammable fluids or sprays for cleaning as the fumes from these substances can create a fire hazard or explosion. •...
- Page 16 Other Useful Information (Cont.) Reversing the door swing This freezer can be opened from either side to suit your individual installation require- ments. If you want to open the door from the other side, follow the instructions below and on the following pages to reverse the door swing. Tools required: Phillips head screwdriver, flat-bladed screwdriver, hexagonal spanner Help required: We recommend you ask another person to help you during assembly.
- Page 17 Other Useful Information (Cont.) 5. Unscrew the bottom hinge. Then remove the adjustable feet from both sides (Fig.8). Fig.8 Unscrew and remove the bottom hinge pin, turn the bracket over and replace it (Fig.9). Fig.9 Refit the bracket fitting the bottom hinge pin. Replace both adjustable feet (Fig.10).
- Page 18 Other Useful Information (Cont.) Technical specifications Rated voltage 220-240V~ Rated frequency 50Hz Rated current 0.7A Climate class Dimensions (mm) 840 (H) x 500 (W) x 560 (D) Net weight 27kg Capacity 82L gross, 73L net Refrigerant R600a, 42g Insulation blowing agent Cyclopentane After Sales Support (AU) 1300 886 649 (NZ) 0800 836 761 |...
- Page 19 Other Useful Information (Cont.) Compliance This appliance has been fully tested and meets all requirements as set out by standards AS/NZS 60335.1 and AS/NZS 60335.2.24. The RCM Mark (Regulatory Compliance Mark) indicates that the product complies with the relevant guidelines of the ACMA as well as corresponding government requirements for the safety of electrical devices.
- Page 20 Warranty returns Should you for any reason need to return this product for a warranty claim, make sure to include all accessories with the product. Product does not work? If you encounter problems with this product, or if it fails to perform to your expectations, make sure to contact our After Sales Support Centre for advice.
