Summary of Contents for Logik LVD7W15
- Page 1 Instruction / Installation Manual 7kg Vented Tumble Dryer LVD7W15 LVD7W15_IB_RC_191009_grace.indd 1 9/10/2019 10:30 AM...
- Page 2 LVD7W15_IB_RC_191009_grace.indd 2 9/10/2019 10:30 AM...
-
Page 3: Table Of Contents
Contents Safety Warnings ..........................4 Unpacking ............................. 9 Installing Your Dryer ........................10 Choosing the Right Location for Your Dryer ....................10 Moving and Installing ........................ 11 Moving the Dryer from One Location to Another ..................11 Installing the Vent Hose ............................11 Levelling the Dryer .............................. -
Page 4: Safety Warnings
Safety Warnings For your continued safety and to reduce the risk of injury or electric shock, read all instructions carefully before using the unit and keep them for future reference. Please follow all the safety precautions listed below. Retain this manual. Include this manual if you pass the unit onto a third party. - Page 5 • Do not install your dryer anywhere that is exposed to high humidity, water or the weather. If you do, it may cause an electric shock, fire, failure or deterioration. • Your tumble dryer should NOT be located next to a gas hob, cooker, heater, or eye-level grill as flames from the burners could cause damage to your machine.
- Page 6 Caring for Laundry • The dryer must only be used for its intended purpose. • Always observe the rules for drying garments. If in doubt, do NOT tumble dry. • Take particular care that woolen articles are NOT dried in a tumble dryer unless they are labelled ‘Superwash’...
- Page 7 7kg. • Make sure the mains plug is pushed firmly in the socket. A loose connection may overheat and cause electrical shock or a fire. • Check the mains lead and mains plug for any wear and tear, looseness, or damage. If the mains cable is damaged, it must be replaced by a qualified service agent in order to avoid a hazard.
- Page 8 CAUTION: WHEN THE DRYER IS IN USE AVOID TOUCHING THE REAR OF THE DRYER AS IT MAY BE HOT. Cleaning & Maintenance • Clean the lint filter before and after every load. • If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
-
Page 9: Unpacking
Thank you for purchasing your new Dryer. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues. Read all the safety instructions carefully before use and keep this instruction manual for future reference. -
Page 10: Installing Your Dryer
INSTALLATION Installing Your Dryer Please read and follow the instructions carefully. • In addition to the instructions mentioned here, special regulations of the relevant power supply companies may apply. If in doubt, have the dryer connected by a qualified technician. •... -
Page 11: Moving And Installing
INSTALLATION Moving and Installing Two or more people are required to carry the dryer and for any installation work. Moving the Dryer from One Location to Another Before you move the dryer: • Turn off the power source, and disconnect the mains cable. •... -
Page 12: Levelling The Dryer
INSTALLATION Levelling the Dryer There are levelling feet on the underside. They must be adjusted to make sure the dryer is level. 1. Adjust all levelling feet. 2. Use a spirit level to ensure the dryer is level. Connecting to the Mains Supply For your safety: •... -
Page 13: Product Overview

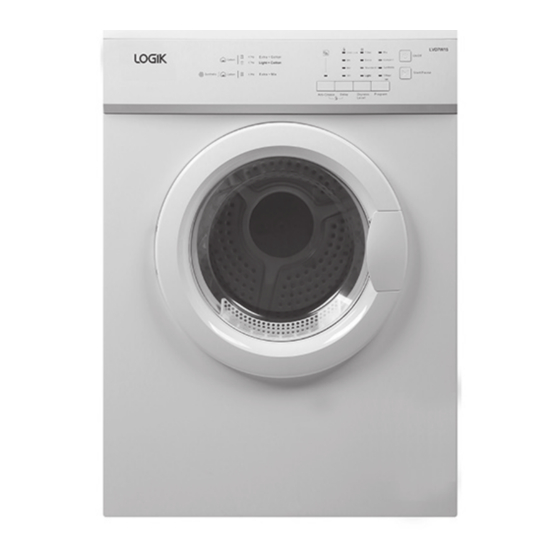

Product Overview The unit Control Panel Window Door Handle LVD7W15_IB_RC_191009_grace.indd 13 9/10/2019 10:30 AM... -
Page 14: Control Panel
Control Panel LVD7W15 End/Anti- Crease Light + Cotton Light 1 Hour 1. Anti-Crease Indicator 6. On/Off Button • Indicator lights up when the anti-crease Switches the machine On and Off. function is selected. 7. Start / Pause Button • Indicator flashes when programme is running. -
Page 15: Preparation
Preparation Read the following to understand how best to prepare your laundry for drying. Preparing to Tumble Dry Laundry • Before loading laundry into the tumble dryer, thoroughly spin the laundry in the washing machine. This will reduce remaining moisture content and help dry your laundry faster. -
Page 16: Selecting The Programme
Selecting the Programme Clothing Dryness Description Load (kg) Programme Type Level Suitable for particularly thick or multi-layered cotton clothing. Cotton Extra Cotton Suitable for cotton clothing that will not be ironed. Cotton Standard Suitable for cotton clothing that requires ironing. Cotton Light Suitable for clothing comprising particularly thick or multi-layered materials. -
Page 17: Dry Programme Setting
Dry Programme Setting First Time Use Before the first use, wipe the dryer drum with a damp cloth to remove any residues which may have been produced during production. Alternatively, run a brief drying cycle (around 1 hour) with damp clothes in the drum. Before use, check that the lint filter is clean and positioned properly in the dryer. -
Page 18: Removing Laundry
Removing Laundry Always allow the unit to complete the drying cycle before removing laundry. 1. Press the On/Off button to switch off the dryer. Unplug the dryer. 2. Open the dryer door and remove your laundry. Switching Off Press the On/Off button to switch off the dryer. Unplug the dryer. Setting the Child Lock The Child Lock prevents children from stopping programmes accidentally. -
Page 19: Maintenance - Cleaning The Dryer
Maintenance – Cleaning the Dryer Cleaning the Drum Any rust left inside the drum by metal articles must be removed immediately with chlorine-free detergent. Never use steel wool. Do not put laundry in the dryer when cleaning the drum. Unplug the dryer before cleaning. Cleaning the Exterior of your Dryer •... -
Page 20: Hints And Tips
Hints and Tips Problems Description / Possible Cause Solution Dryer will not start. • Power cut. • Restore power. • The plug is not firmly • Check the plug and make sure it is inserted into the mains. fully and firmly inserted into the mains •... -
Page 21: Troubleshooting
Drying cycle is • Lint filter / vent hose is • Clean the lint filter / vent hose before unusually long. clogged. and after each use of the dryer. • Laundry load exceeds • Select a more suitable drying drying capability of selected programme, or remove some laundry. -
Page 22: Specifications
Specifications Model LVD7W15 Rated Voltage 220 - 240V~ Rated Frequency 50 Hz Rated Power Input 2,000 W Dimension of the Product 840mm (H) x 595mm (W) x 550mm (D) Weight of the Product 33 kg Maximum Mass of Dry Cloth 7 kg Features and specifications are subject to change without prior notice. -
Page 23: Product Fiche
Product Fiche Brand: Logik Model: LVD7W15 Rated capacity: 7 kg Dryer Type: Air-Vented Energy efficiency class: C Energy consumption 520 kWh per year, based on 160 drying cycles of the standard cotton programme at full and partial load, and the consumption of the low-power modes. Actual energy consumption per cycle will depend on how the appliance is used. - Page 24 DSG Retail Ltd. (co. no. 504877) 1 Portal Way, London, W3 6RS, UK EU Representative DSG Retail Ireland Ltd (259460) 3rd Floor Office Suite, Omni Park SC, Santry, Dublin 9, Republic of Ireland IB-LVD7W15-191009V7 LVD7W15_IB_RC_191009_grace.indd 24 9/10/2019 10:30 AM...
