INNOVATORS OF TECHNOLOGY

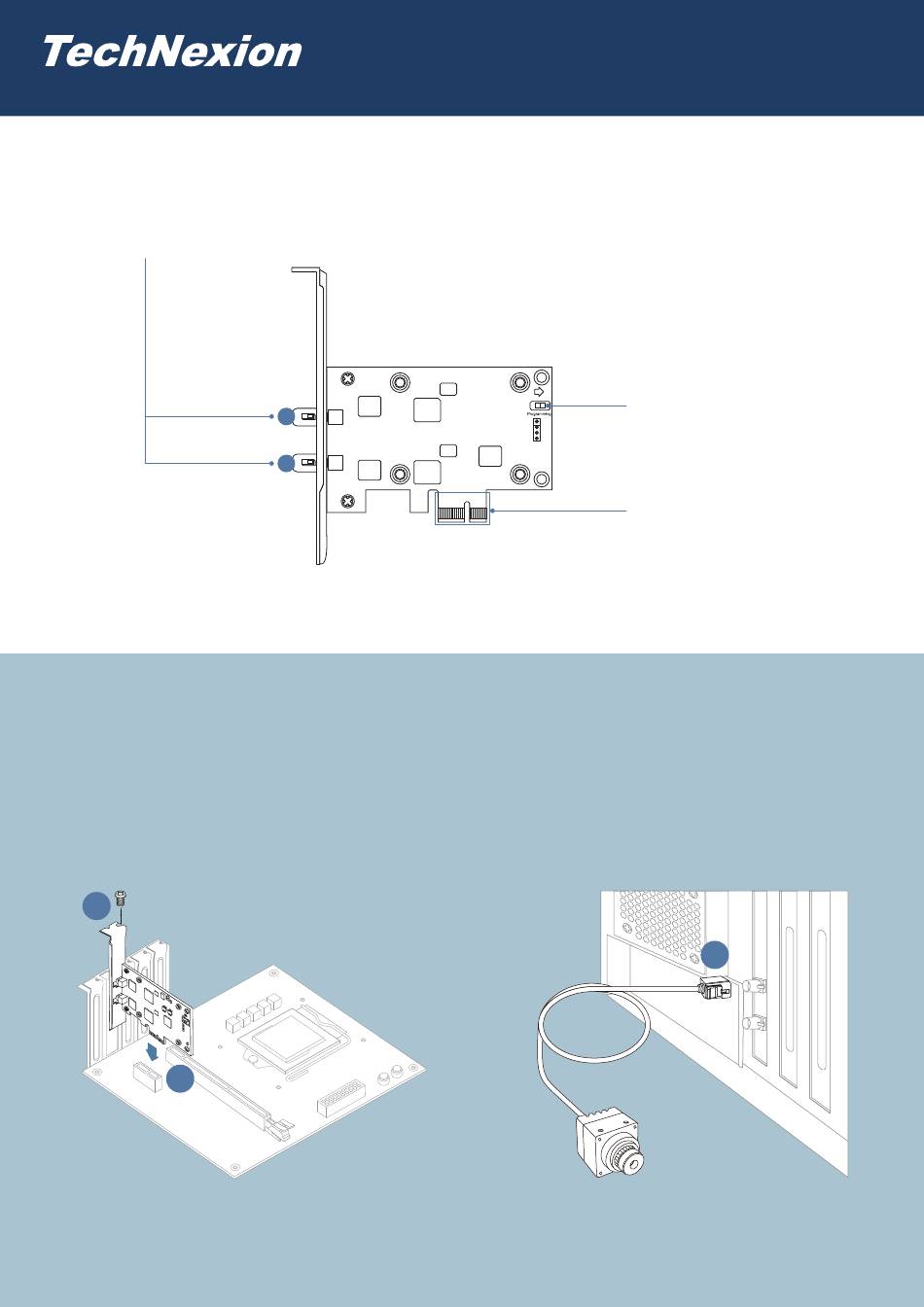

1. Identifying the Parts
FAKRA connectors
Follow the sequence to connect the cameras.
Note: To update the firmware, toggle the switch to the programming mode (right side) and strongly suggest operating this procedure by a technician.
2. How to Assemble the Card and the Cameras
1.
Push down the grabber card into the PCIe slot directly.
2.
Make sure the golden finger of the card is inserted firmly, and secure the card with a screw.
3.
Connect the coaxial cable into the FAKRA connector of the frame grabber card on the I/O rear panel of the computer and the other end to a
camera. Follow the sequence mentioned in the
2
1
1
2
Identifying the Parts
section to connect other cameras.
Quick Install Guide
2-Port Vizionlink™ Frame Grabber Card (PCIE-VL-3120)
Firmware update switch
Grabber card gold finger
3
Advertisement
Table of Contents
Related Manuals for TechNexion Vizionlink PCIE-VL-3120
Summary of Contents for TechNexion Vizionlink PCIE-VL-3120
- Page 1 Quick Install Guide INNOVATORS OF TECHNOLOGY 2-Port Vizionlink™ Frame Grabber Card (PCIE-VL-3120) 1. Identifying the Parts FAKRA connectors Follow the sequence to connect the cameras. Firmware update switch Grabber card gold finger Note: To update the firmware, toggle the switch to the programming mode (right side) and strongly suggest operating this procedure by a technician. 2.
- Page 2 The camera requires to update the firmware. Please check this issue connections between the camera, adapter, and computer. with a technician or contact us for help. 4. Getting Information Select a compatible camera Software and development resources https://www.technexion.com/products/embedded-vision/vizionlink https://www.technexion.com/support/ For more information contact TechNexion sales www.technexion.com sales@technexion.com INNOVATORS OF TECHNOLOGY...
