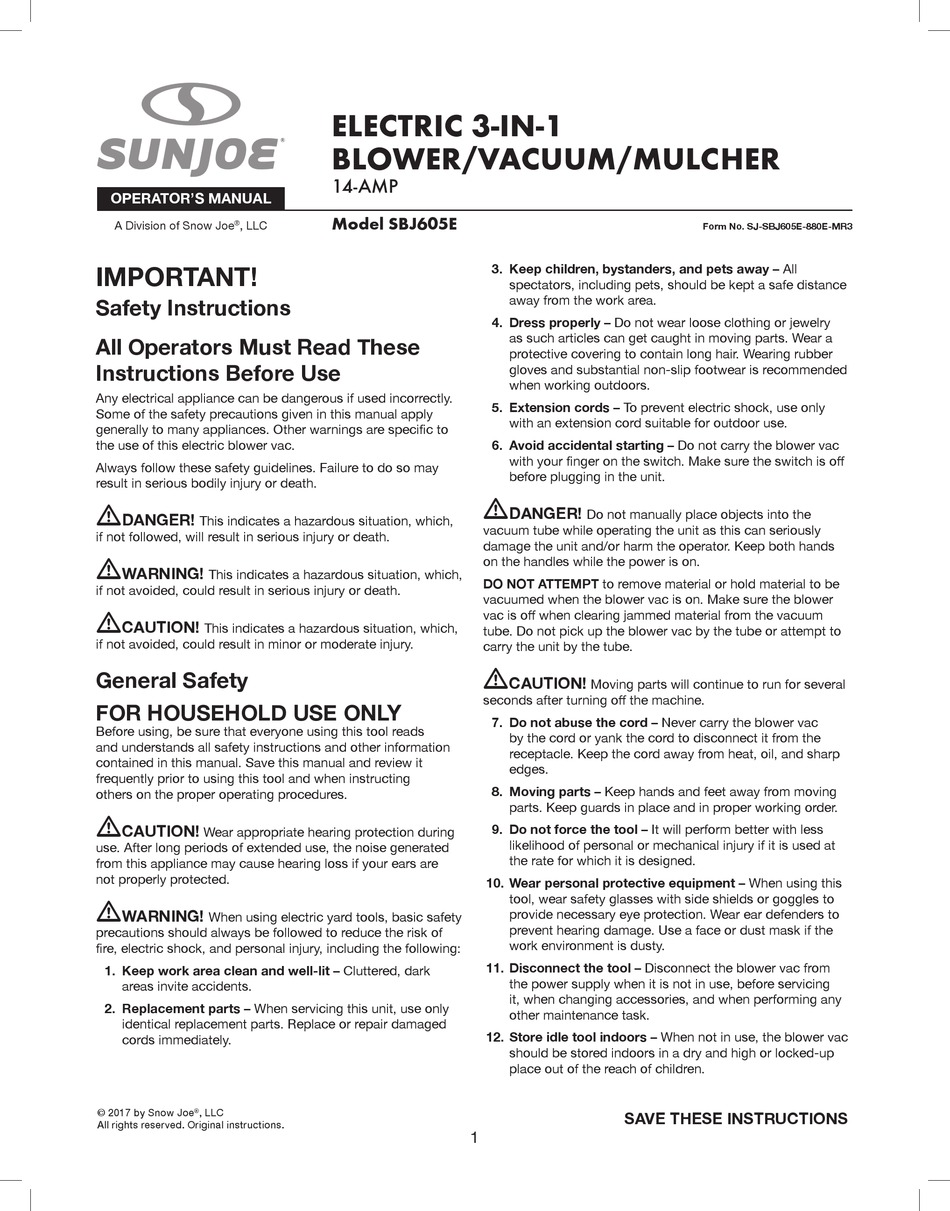

OPERATOR'S MANUAL
A Division of Snow Joe
, LLC
®
IMPORTANT!
Safety Instructions
All Operators Must Read These
Instructions Before Use
Any electrical appliance can be dangerous if used incorrectly.
Some of the safety precautions given in this manual apply
generally to many appliances. Other warnings are specific to
the use of this electric blower vac.
Always follow these safety guidelines. Failure to do so may
result in serious bodily injury or death.
m
DANGER!
This indicates a hazardous situation, which,
if not followed, will result in serious injury or death.
m
WARNING!
This indicates a hazardous situation, which,
if not avoided, could result in serious injury or death.
m
CAUTION!
This indicates a hazardous situation, which,
if not avoided, could result in minor or moderate injury.
General Safety
FOR HOUSEHOLD USE ONLY
Before using, be sure that everyone using this tool reads
and understands all safety instructions and other information
contained in this manual. Save this manual and review it
frequently prior to using this tool and when instructing
others on the proper operating procedures.
m
CAUTION!
Wear appropriate hearing protection during
use. After long periods of extended use, the noise generated
from this appliance may cause hearing loss if your ears are
not properly protected.
m
WARNING!
When using electric yard tools, basic safety
precautions should always be followed to reduce the risk of
fire, electric shock, and personal injury, including the following:
1. Keep work area clean and well-lit – Cluttered, dark
areas invite accidents.
2. Replacement parts – When servicing this unit, use only
identical replacement parts. Replace or repair damaged
cords immediately.
© 2017 by Snow Joe
, LLC
®
All rights reserved. Original instructions.

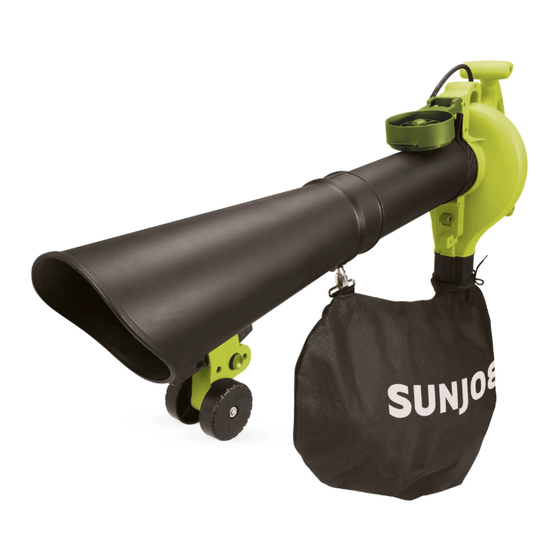

ELECTRIC 3-IN-1
R
BLOWER/VACUUM/MULCHER
14-AMP
Model SBJ605E
3. Keep children, bystanders, and pets away – All
spectators, including pets, should be kept a safe distance
away from the work area.
4. Dress properly – Do not wear loose clothing or jewelry
as such articles can get caught in moving parts. Wear a
protective covering to contain long hair. Wearing rubber
gloves and substantial non-slip footwear is recommended
when working outdoors.
5. Extension cords – To prevent electric shock, use only
with an extension cord suitable for outdoor use.
6. Avoid accidental starting – Do not carry the blower vac
with your finger on the switch. Make sure the switch is off
before plugging in the unit.
m
DANGER!
Do not manually place objects into the
vacuum tube while operating the unit as this can seriously
damage the unit and/or harm the operator. Keep both hands
on the handles while the power is on.
DO NOT ATTEMPT to remove material or hold material to be
vacuumed when the blower vac is on. Make sure the blower
vac is off when clearing jammed material from the vacuum
tube. Do not pick up the blower vac by the tube or attempt to
carry the unit by the tube.
m
CAUTION!
Moving parts will continue to run for several
seconds after turning off the machine.
7. Do not abuse the cord – Never carry the blower vac
by the cord or yank the cord to disconnect it from the
receptacle. Keep the cord away from heat, oil, and sharp
edges.
8. Moving parts – Keep hands and feet away from moving
parts. Keep guards in place and in proper working order.
9. Do not force the tool – It will perform better with less
likelihood of personal or mechanical injury if it is used at
the rate for which it is designed.
10. Wear personal protective equipment – When using this
tool, wear safety glasses with side shields or goggles to
provide necessary eye protection. Wear ear defenders to
prevent hearing damage. Use a face or dust mask if the
work environment is dusty.
11. Disconnect the tool – Disconnect the blower vac from
the power supply when it is not in use, before servicing
it, when changing accessories, and when performing any
other maintenance task.
12. Store idle tool indoors – When not in use, the blower vac
should be stored indoors in a dry and high or locked-up
place out of the reach of children.
SAVE THESE INSTRUCTIONS
1
Form No. SJ-SBJ605E-880E-MR3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SUNJOE SBJ605E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SNOWJOE SUNJOE SBJ605E

  • Page 1 ELECTRIC 3-IN-1 BLOWER/VACUUM/MULCHER 14-AMP OPERATOR’S MANUAL Model SBJ605E A Division of Snow Joe , LLC ® Form No. SJ-SBJ605E-880E-MR3 IMPORTANT! 3. Keep children, bystanders, and pets away – All spectators, including pets, should be kept a safe distance Safety Instructions away from the work area.
  • Page 2: Additional Safety Instructions

    ® ® ® Double insulation – Double insulation eliminates Sun Joe customer service department at 1-866-SNOWJOE ® the use of the usual three-wire grounded power cords, (1-866-766-9563). thereby providing a measure of safety during the operation • Do not pick up anything that is burning or smoking, such as of electric power tools.
  • Page 3: Electrical Safety

    ® extension cord with lighted end (Model PJEXT50-B). Visit snowjoe.com to purchase this extension cord online or, to order by phone, call 1-866-SNOWJOE (1-866-766-9563). • Do not use an extension cord over 100 ft (30 m). • Do not touch the appliance or its plug with wet hands or while standing in water.
  • Page 4: Double-Insulated Appliances

    Double-Insulated Appliances In a double-insulated appliance, two systems of insulation are provided instead of grounding. No grounding means is provided on a double-insulated appliance, nor should a means for grounding be added to the appliance. Servicing a double- insulated appliance requires extreme care and knowledge of the system, and should be performed only by qualified service personnel at an authorized Snow Joe + Sun Joe...
  • Page 5: Safety Symbols

    Safety Symbols The following table depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate. Symbols Descriptions Symbols Descriptions READ THE OPERATOR'S MANUAL(S) – Read, understand, and follow Keep bystanders and children all instructions in the user...
  • Page 6: Technical Data

    Know Your Electric Blower/Vacuum/Mulcher Read the owner’s manual and safety instructions carefully before operating the electric blower vac. Compare the illustration below to the electric blower vac in order to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference.
  • Page 7: Carton Contents

    ® ® Fig. 2 1-866-SNOWJOE (1-866-766-9563). NOTE: Do not discard the shipping carton and packaging material until you are ready to use the electric blower/ vacuum/mulcher. The packaging is made of recyclable materials. Properly dispose of these materials in accordance with local regulations.
  • Page 8 Assemble as a Vacuum/Mulcher 4. Insert the collection bag adaptor into the blower air outlet until the collection bag is securely fastened (Fig. 7), then 1. Slide the front and rear vacuum/mulcher tubes together clip the bag to the strap holder. until the lock button engages (Fig.
  • Page 9: Operation

    Starting + Stopping 7. To remove the vacuum/mulcher tube assembly, slide the inlet cover lock button to unlock, then remove the tube 1. To start the electric blower/vacuum/mulcher, slide the assembly from its housing (Fig. 10). ON/OFF switch to the ON position (I) (Fig. 12). NOTE: It may be necessary to remove the blower tube or 2.
  • Page 10: Air Vents

    Blower Mode • When using the unit as a vacuum/mulcher, make sure the bag is properly installed and zipped closed. • Hold the blower firmly with one hand on the main handle • Make sure the blower tube nozzle is not directed at and the other hand on the auxiliary handle.
  • Page 11: Clearing A Blocked Tube/Impeller

    To order genuine replacement parts or accessories for the commercially available should you wish to purchase one. Sun Joe SBJ605E electric blower/vacuum/mulcher, please ® visit snowjoe.com or contact the Snow Joe + Sun Joe ® ® customer service center at 1-866-SNOWJOE...
  • Page 12: Service & Support

    + Sun Joe customer ® ® 5. Intake gate/cover is not closed. service center at 1-866-SNOWJOE Unit will not start (1-866-766-9563). 6. House circuit may have tripped. 4. Check vac tubes and ensure that they are correctly installed to allow the switch to be engaged.
  • Page 13 NOTE: Accessories are subject to change without any obligation on the part of Snow Joe + Sun Joe to provide notice of such ® ® changes. Accessories can be ordered online at snowjoe.com or via phone by contacting the Snow Joe + Sun Joe customer ® ®...
  • Page 14 NOTES...
  • Page 15 Wearing parts like belts, augers, chains and tines are not covered This Warranty is extended by Snow Joe + Sun Joe to the owner under this warranty, and can be purchased at snowjoe.com or ® ® by calling 1-866-SNOWJOE (1-866-766-9563). Batteries are of this Machine (a “Machine”...
  • Page 16 WARNING! This product or its power cord contains chemicals, including lead, known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling. For more information go to www.P65Warnings.ca.gov. WARNING! Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known [to the State of California] to cause cancer, birth defects, or other reproductive harm.
