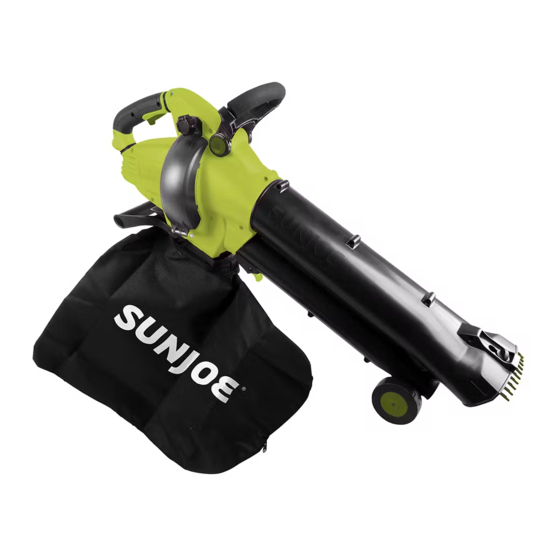

Electric blower/vacuum/mulcher
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

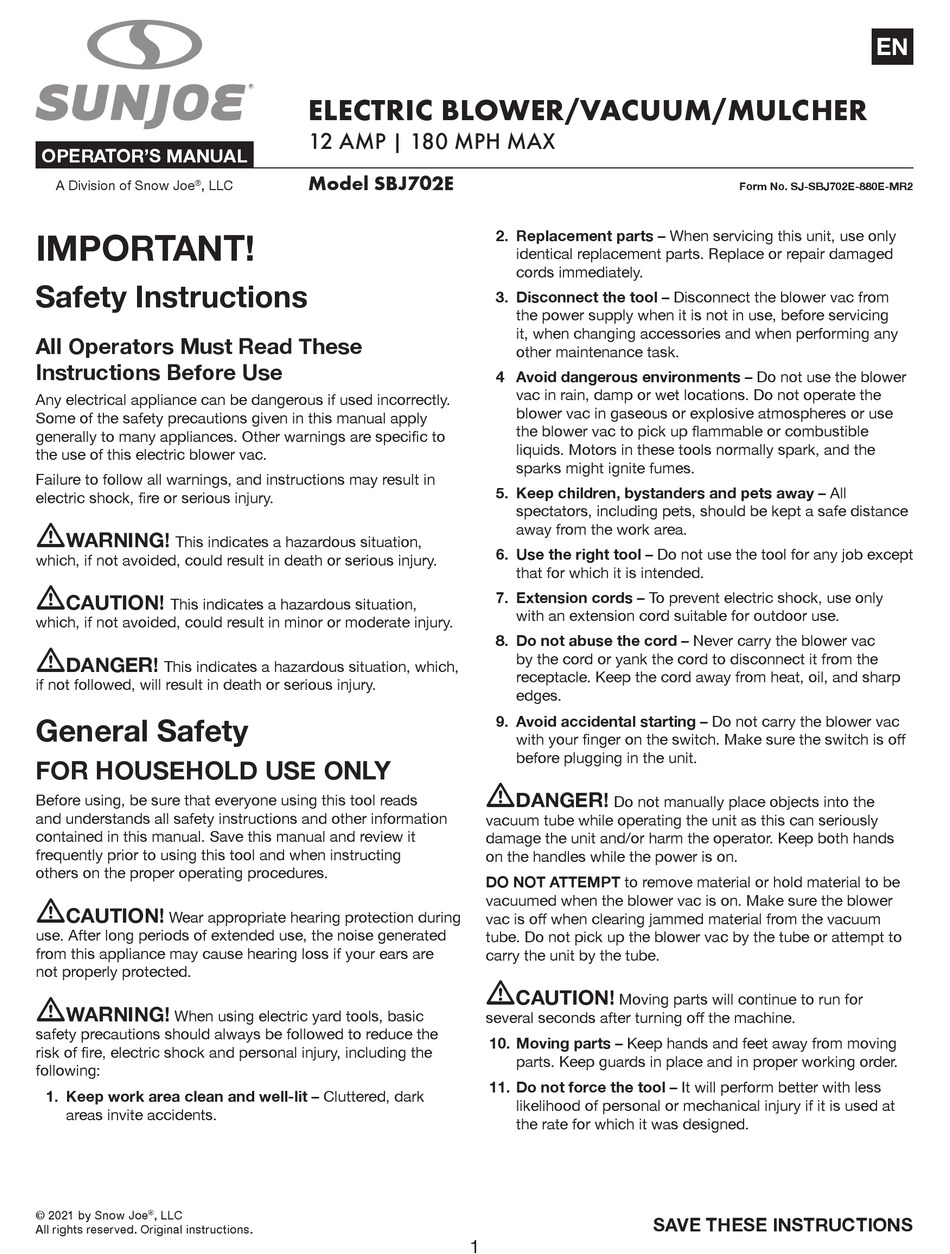

OPERATOR'S MANUAL
A Division of Snow Joe
, LLC
®
IMPORTANT!
Safety Instructions
All Operators Must Read These
Instructions Before Use
Any electrical appliance can be dangerous if used incorrectly.
Some of the safety precautions given in this manual apply
generally to many appliances. Other warnings are specific to
the use of this electric blower vac.
Failure to follow all warnings, and instructions may result in
electric shock, fire or serious injury.
m
WARNING!
This indicates a hazardous situation,
which, if not avoided, could result in death or serious injury.
m
CAUTION!
This indicates a hazardous situation,
which, if not avoided, could result in minor or moderate injury.
m
DANGER!
This indicates a hazardous situation, which,
if not followed, will result in death or serious injury.
General Safety
FOR HOUSEHOLD USE ONLY
Before using, be sure that everyone using this tool reads
and understands all safety instructions and other information
contained in this manual. Save this manual and review it
frequently prior to using this tool and when instructing
others on the proper operating procedures.
m
CAUTION!
Wear appropriate hearing protection during
use. After long periods of extended use, the noise generated
from this appliance may cause hearing loss if your ears are
not properly protected.
m
WARNING!
When using electric yard tools, basic
safety precautions should always be followed to reduce the
risk of fire, electric shock and personal injury, including the
following:
1. Keep work area clean and well-lit – Cluttered, dark
areas invite accidents.
© 2021 by Snow Joe
, LLC
®
All rights reserved. Original instructions.
R
ELECTRIC BLOWER/VACUUM/MULCHER
12 AMP | 180 MPH MAX
Model SBJ702E
2. Replacement parts – When servicing this unit, use only
identical replacement parts. Replace or repair damaged
cords immediately.
3. Disconnect the tool – Disconnect the blower vac from
the power supply when it is not in use, before servicing
it, when changing accessories and when performing any
other maintenance task.
4 Avoid dangerous environments – Do not use the blower
vac in rain, damp or wet locations. Do not operate the
blower vac in gaseous or explosive atmospheres or use
the blower vac to pick up flammable or combustible
liquids. Motors in these tools normally spark, and the
sparks might ignite fumes.
5. Keep children, bystanders and pets away – All
spectators, including pets, should be kept a safe distance
away from the work area.
6. Use the right tool – Do not use the tool for any job except
that for which it is intended.
7. Extension cords – To prevent electric shock, use only
with an extension cord suitable for outdoor use.
8. Do not abuse the cord – Never carry the blower vac
by the cord or yank the cord to disconnect it from the
receptacle. Keep the cord away from heat, oil, and sharp
edges.
9. Avoid accidental starting – Do not carry the blower vac
with your finger on the switch. Make sure the switch is off
before plugging in the unit.
m
DANGER!
Do not manually place objects into the
vacuum tube while operating the unit as this can seriously
damage the unit and/or harm the operator. Keep both hands
on the handles while the power is on.
DO NOT ATTEMPT to remove material or hold material to be
vacuumed when the blower vac is on. Make sure the blower
vac is off when clearing jammed material from the vacuum
tube. Do not pick up the blower vac by the tube or attempt to
carry the unit by the tube.
m
CAUTION!
Moving parts will continue to run for
several seconds after turning off the machine.
10. Moving parts – Keep hands and feet away from moving
parts. Keep guards in place and in proper working order.
11. Do not force the tool – It will perform better with less
likelihood of personal or mechanical injury if it is used at
the rate for which it was designed.
1
Form No. SJ-SBJ702E-880E-MR2
SAVE THESE INSTRUCTIONS
EN
