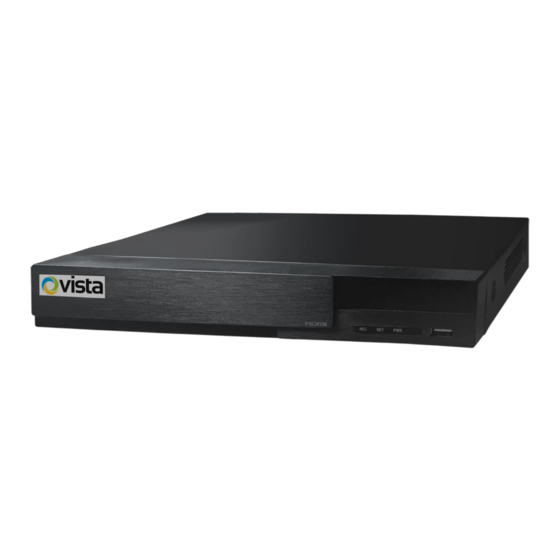

Summary of Contents for Vista Onvif VL-16NVR

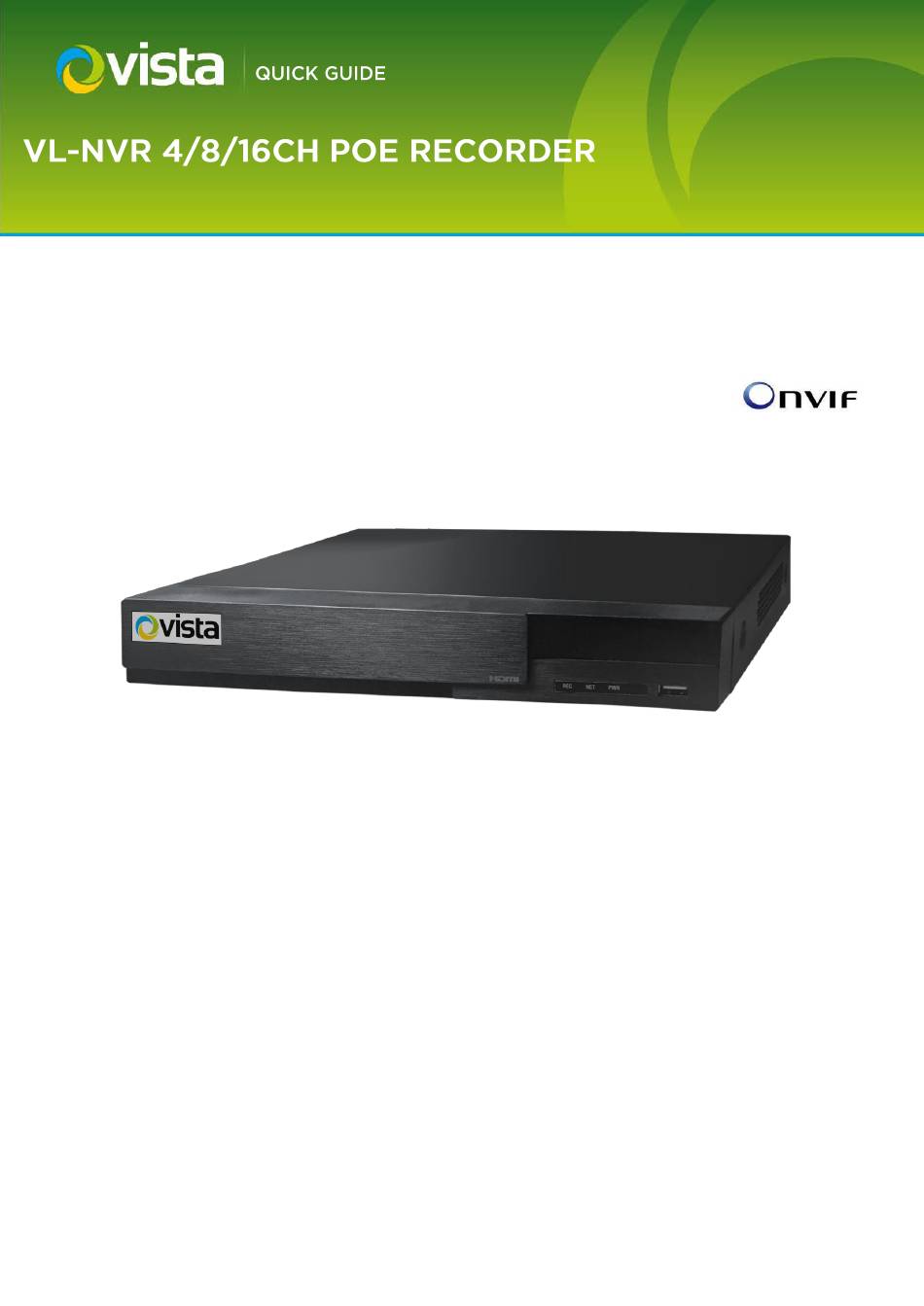

- Page 1 Please read this manual thoroughly before use and keep it handy for future reference.
- Page 2 VL-NVR 4/8/16CH Quick Guide V1.1 Before You Begin Read these instructions before installing or operating this product. Note: This installation should be made by a qualified service person and should conform to local codes. This manual provides installation and operation information. To use this document, you must have the following minimum qualifications: •...
- Page 3 NORBAIN SD reserves the right to make changes to the product and specification of the product from time to time without prior notice. WARNINGS AND CAUTIONS: To reduce the risk of fire or electric shock, do not insert any metallic objects through the ventilation grills or other openings on the equipment.
-
Page 4: Table Of Contents
Table of Contents Product Features .................................. 5 Main Features ..............................5 1.2 Rear Panel Instructions ..............................6 Remote Controller (Optional) ..........................7 Mouse Control ..............................8 Basic Operation ..................................9 Startup ................................. 9 Shutdown ................................9 Wizard Setup ............................... 9 2.4 Main Interface .................................. -
Page 5: Product Features
Product Features Main Features • Real-time surveillance • High resolution VGA output and HDMI output. • Mobile app (iPhone/ iPad/ Android) • Video compression H.265S / H.265+ / H.265, improved video quality and lower storage\bandwidth. • Storage: Supports 1 SATA3.0 HDD (4Ch & 8Ch) and 2 SATA3.0 HDD (16Ch) •... -
Page 6: Rear Panel Instructions
1.2 Rear Panel Instructions Below images for reference only. Rear Panel for 4 CH Rear Panel for 8 CH Rear Panel for 16 CH Name Descriptions DC48V DC48V Power Input. Connect external devices such as USB mouse or storage device. Network Port. -
Page 7: Remote Controller (Optional)
Remote Controller (Optional) Requires two AAA size batteries • Open the battery cover of the Remote Controller. • Place batteries. Please take care of the polarity (+ and -). • Replace the battery cover. Remote Controller Button Function Power Button Switch off DVR. -
Page 8: Mouse Control
Mouse Control Live Preview & Playback interface In live preview & playback interface, double-click any camera window to show it in single screen mode; double click again to restore to the previous size. In the live preview & playback interface, if the screen displays in full screen, move the mouse to the bottom of the interface to pop up the tool bar. -
Page 9: Basic Operation
Basic Operation Please make sure all the connections are made correctly before you power on the unit. Proper startup and shutdown are crucial to maintaining the life of your device Startup Step1: Connect the output display device to the VGA/HDMI interface of the NVR. Step2: Connect the mouse and power. - Page 10 2. Privacy Statement: Read the Vista\Norbain statement, click ”I have read and agree” if you agree. Click “OK” to continue. 3. Date and Time Configuration: The date and time of the system needs to be set up if you use the wizard for the first time.
- Page 11 Click “Edit Security Question” to set questions and answers for password security of admin. Click “Next” to continue or click “Cancel” to exit the wizard. 5. Disk Settings : You can view the number of disks, disk capacity, serial number and R&W status. Click “Formatting” to format the disk –...
- Page 12 7. Network Settings: Use the below only as an example to help set your required IP addressing; either via DHCP if your network has a DHCP server, or by determining the correct static IP settings for your network. Input the HTTP port, RTSP port and Server port as required. Click “Next” to continue. NOTE Internal Ethernet Port: If you use the NVRs PoE network ports for cameras, the online state of the internal Ethernet port and IP address will be shown.
- Page 13 To modify the IP\login details for any “found” camera before “adding”: Click to edit the found IP camera to show the below. If required, input the new IP address, subnet mask, gateway, “Username” and “Password” of the camera. Click “OK” to save the settings. To modify the IP, login and name details for any “added”...
- Page 14 10. QR Code and Easy Mobile App Remote Access: You can scan the QR Code through the NVRs mobile client app installed on a device to log in remotely and instantly. Set the NVR Wizard QR Code screen as below, then click “Next” You will need to access Google PlayStore or AppleStore to search for, and install, the “Superlive Plus”...
-
Page 15: Main Interface
2.4 Main Interface 2.4.1 Main Interface Introduction The buttons in the lower area, labelled as 1. in the above screen menu, are listed in the table below. Button Meaning Start button. Click it to pop menu area ③. Full screen button. Click to show full screen; click again to exit full screen. Screen mode button (according to individual models ). -
Page 16: Setup Panel
camera list. Select one camera window on the left side of the interface and then double click any camera in the list to preview the camera image in the selected window. on the top right corner and then select “Single Channel Sequences” to view all the added groups in the group list; Click click one group in the list to view all the added cameras in the group. -
Page 17: Camera Management
Camera Management Add Camera The IP settings of the NVR must be set before adding IP cameras! Referring to the i m a g e s below; click Add Camera in the in the top right corner of the preview window to pop-up the “Add Camera” window as shown below. You setup panel or can either use Quickly Add, or manually add, IP cameras manually. -
Page 18: Add Manually
3.1.2 Add manually Refer below and input the IP address, port, “Username” and “Password” of the camera required, then select the protocol. Click “Test” to test the validity of the input information and then click “Add” button. Click to delete any required camera. Click “Default Password”... -
Page 19: Live Display
Live Display 4.1 Preview Interface Cameras required for viewing of live and playback need to first be added to the recorder as shown in earlier sections. Refer to the interface example shown below, drag the required camera in the preview window to another window for camera window exchanging. -
Page 20: Record & Disk Management
The single channel zoom interface is shown below. Click and drag the blue box to select the zoom in area. Click to zoom the image. Click the camera selection box to select other cameras for zooming. Click “Back” to return to the live preview interface. Record &... -
Page 21: Auto Mode
5.1.1 Auto mode The below Auto record modes are available and explained. • Motion Record: Recording will only happen when motion alarm happens. • Sensor Record: Recording will only happen when sensor alarm happens. • Motion Record+Sensor Record: Recording will only happen when both motion and sensor alarms happen. •... -
Page 22: Disk Management
Disk Management Click Start→Settings→Disk→Disk Management to go to disk management interface. You can view the NVR’s disk number and disk status in the menu. Click “Format” button to format the HDD – if required. Note: If the HDD has been removed from an identical NVR of the same model, you can import the previous NVRs configuration file to the new NVR –... -
Page 23: Playback Interface
Playback Interface on the tool bar at the bottom of the live preview interface or click Start → Playback to go to the playback interface Click as shown below (click on the tool bar at the bottom of the live preview interface to set the default playback time). ... - Page 24 Button Meaning Click to step backward 30s and click to step forward 30s. Click to enter the smart playback interface. Event list/tag button. Click to view the event record of manual/schedule/sensor/ motion events. Watermark button. Click to enable watermark; click again to disable watermark. Open/close POS information.
-
Page 25: Record Search & Playback
Key for area ④: Click to set the date; click to set the time and then the playback camera will play the record from the time you set. You can check the record type as required for record playback; first you should click on the tool bar at the bottom of the interface to clear all the playback camera, then check the record type;... -
Page 26: Search & Playback By Time
③ Click the image box to play the record in the small playback box on the left side of the interface (any box with thumbnail image inside indicates that recording data exists). ④ Refer to the picture below. Drag the colour blocks on the time scale to select the record data and then click “Backup” button to pop up a window;... -
Page 27: Search & Playback By Event
④ Drag the colour blocks on the time scale to select the record data and then click “Backup” button for record backup. Click “Playback” button to play the record in the playback interface. 6.3.3 Search & Playback By Event ① Click Start → Search and Backup → By Event to go to “By Event” tab as shown below. ②... -
Page 28: Backup
click on the bottom of the camera window to add tag when you want to mark the playback time point of the selected camera. Click Start→ Search and Backup →Tag Management to go to “Tag Management” tab. Click in the interface to play the record. -
Page 29: Backup By Event
④ Click “Backup” button to pop up the “Record Backup” window as shown below. Select the device name, backup format and path and then click “Backup” button to start the backup. 6.4.1 Backup by Event ① Click Start →Search and Backup →By Event to go to “By Event” tab. ②... -
Page 30: Appendix A Compatible Devices
APPENDIX A Compatible Devices 1. Compatible USB drives. Brand Capacity A-DATA 512MB, 1G, 2GB Transcend Kingston Toshiba SanDisk 2. Compatible external USB CD/DVD writers Brand Model GH24NS90 3. Compatible HDD Brand Model number Capacity WD10PURX FW:64D85Y0 WD20PURX FW:64P6ZY0 WD30PURX FW:64P6ZY0 Western Digital WD40PURX FW:64GVNY0... -
Page 31: Appendix B Specification
APPENDIX B Specification Model 16CH Compression format H.265S / H.265+ / H.265 / H.264 Main Profile Video output VGA × 1, HDM I× 1 Support IP camera 4 ports 8 ports 16 ports HDMI × 1 : 3840 × 2160 / 1920 × 1080 / 1280 × 1024 / 1024 × 768 HDMI/VGA Resolution VGA ×1 : 1920 ×1080 / 1280 ×1024 / 1024 ×...
