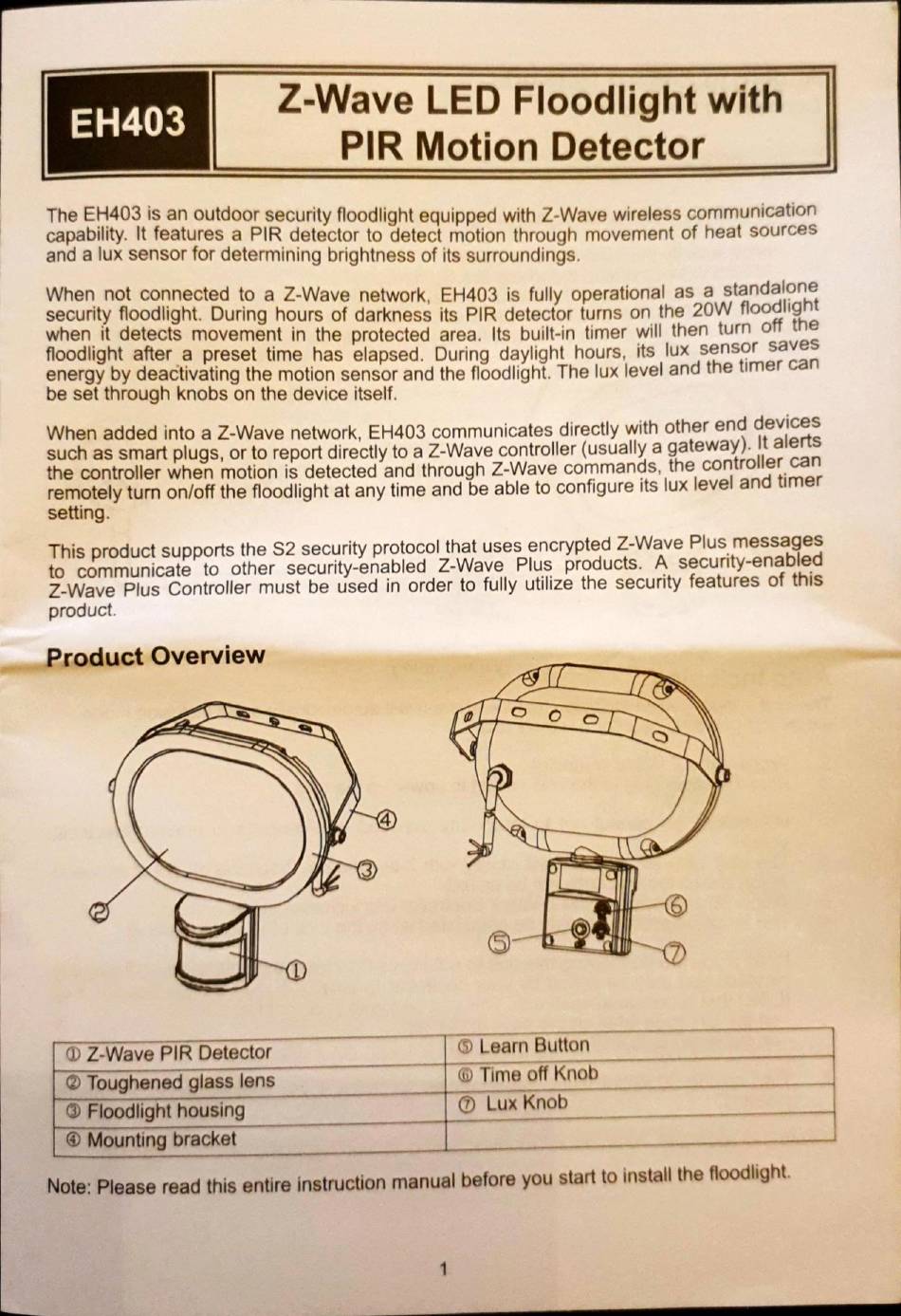

EVERSPRING EH403 Manual

EH403
The EH403 is an outdoor security floodlight equipped with Z-Wave wireless communication
capability It features a PIR detector to detect motion through movement of heat sources
and a lux sensor for determining brightness of its surroundings.
When not connected to a Z-Wave network, EH403 is fully operational as a standalone
security floodlight. During hours of darkness its PIR detector turns on the 20W floodlight
when it detects movement in the protected area. Its built-in timer will then turn off the
floodlight after a preset time has elapsed. During daylight hours, its lux sensor saves
energy by deactivating the motion sensor and the floodlight. The lux level and the timer
be set through knobs on the device itself.
When added into a Z-Wave network, EH403 communicates directly with other end
such as smart plugs, or to report directly to a Z-Wave controller (usually a gateway). It
the controller when motion is detected and through Z-Wave commands, the controller
remotely turn on/off the floodlight at any time and be able to configure its lux level
setting.
This product supports the S2 security protocol that uses encrypted Z-Wave Plus
to communicate to other security-enabled Z-Wave Plus products. A
Z-Wave Plus Controller must be used in order to fully utilize the security features
product.
Product Overview
O Z-Wave PIR Detector
@ Toughened glass lens
CD Floodlight housing
@ Mounting bracket
Note: Please read this entire instruction manual before you start
Z-Wave LED Floodlight with
PIR Motion Detector
6
(S) Learn Button
O Time off Knob
@ Lux Knob
to install the floodlight.
can
devices
alerts
can
and timer
messages
security-enabled
of this
