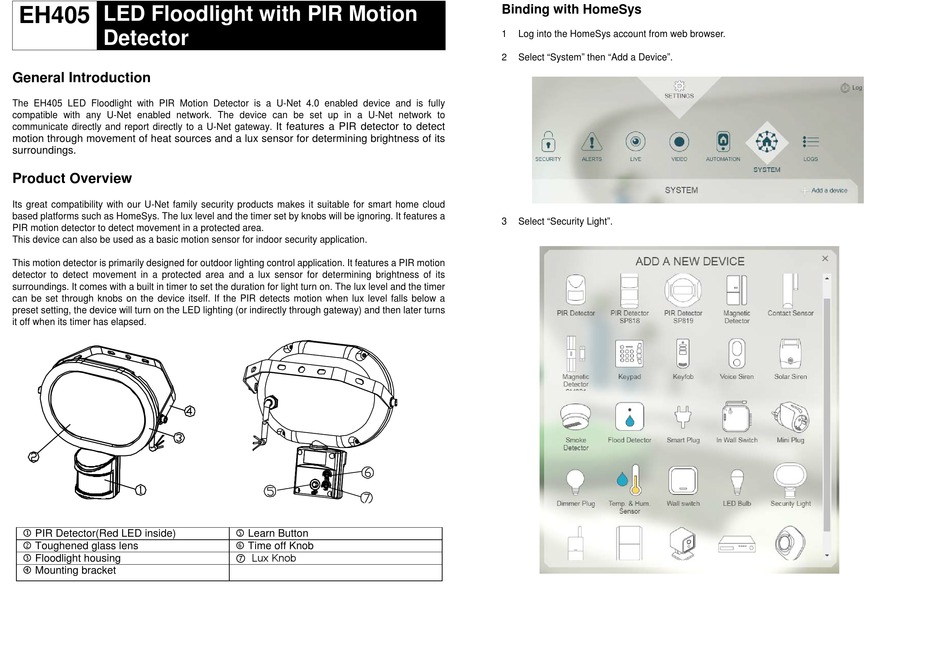

LED Floodlight with PIR Motion
EH405
Detector

General Introduction

The EH405 LED Floodlight with PIR Motion Detector is a U-Net 4.0 enabled device and is fully
compatible with any U-Net enabled network. The device can be set up in a U-Net network to
communicate directly and report directly to a U-Net gateway.
motion through movement of heat sources and a lux sensor for determining brightness of its
surroundings.

Product Overview

Its great compatibility with our U-Net family security products makes it suitable for smart home cloud
based platforms such as HomeSys. The lux level and the timer set by knobs will be ignoring. It features a
PIR motion detector to detect movement in a protected area.
This device can also be used as a basic motion sensor for indoor security application.
This motion detector is primarily designed for outdoor lighting control application. It features a PIR motion
detector to detect movement in a protected area and a lux sensor for determining brightness of its
surroundings. It comes with a built in timer to set the duration for light turn on. The lux level and the timer
can be set through knobs on the device itself. If the PIR detects motion when lux level falls below a
preset setting, the device will turn on the LED lighting (or indirectly through gateway) and then later turns
it off when its timer has elapsed.
 PIR Detector(Red LED inside)
 Toughened glass lens
 Floodlight housing
 Mounting bracket
It features a PIR detector to detect
 Learn Button
 Time off Knob
⑦ Lux Knob

Binding with HomeSys

1
Log into the HomeSys account from web browser.
2
Select "System" then "Add a Device".
3
Select "Security Light".

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EH405 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for EVERSPRING EH405

  • Page 1 Select “System” then “Add a Device”. General Introduction The EH405 LED Floodlight with PIR Motion Detector is a U-Net 4.0 enabled device and is fully compatible with any U-Net enabled network. The device can be set up in a U-Net network to It features a PIR detector to detect communicate directly and report directly to a U-Net gateway.
  • Page 2 5 The following screen will appear, this means the gateway start to bind. Please press the binding button for 4s then release. The LED will start blinking. This means the EH405 is entering binding technical requirements of the appliance and its proper installation.
  • Page 3 Mounting the Unit Go to SYSTEM, and select the Security Light, then press the “Test this device” icon. Choosing the location The recommended location for the floodlight is outside the house under the eaves or other shaded areas where it is not directly exposed to sunlight. - Do not aim its PIR detector facing a window or direct sunlight, otherwise poor triggering response may occur..
  • Page 4 Time and Lux adjustment You can set desired Time period and Lux level through: The following section describes the steps for manual setting. (1) Time adjustment Time-off knob controls how long the floodlight will stay on after the motion is detected. Turn the TIME control knob towards the + sign to increase how long the floodlight stays on (up to about 12 minutes) or towards the T to decrease (down to about 5 seconds).
  • Page 5 If after the timer expires and the source. floodlight turns off this indicates that the PIR www.everspring.com Detector can see a moving heat source e.g: 50 Sect. 1 Zhonghua Rd Tucheng radiator, heater, boiler outlet, open window, NewTaipeiCity 236 Taiwan.
