Blet drive manual turntable
Plastic platter:
SPEED:
Wow & flutter:
HIGH POWER TEST:
CUE UP HEIGHT:

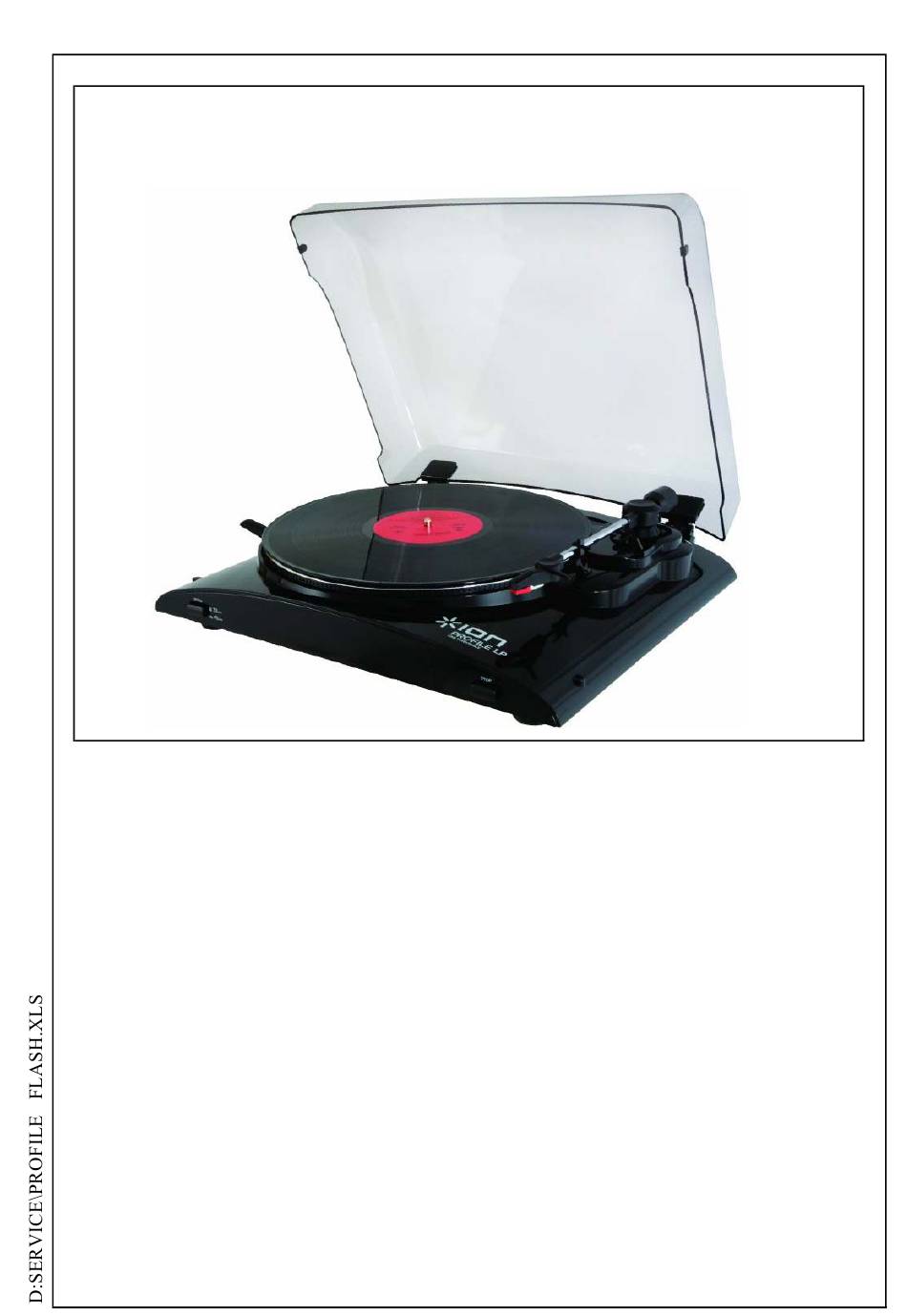

SERVICE MANUAL
SPECIFICATION
300mm
33,45 tours
<0.25%
1.2KV/2SEC/1mA
5~12mm
MODEL: PROFILE FLASH
GENERAL:
Power supply:
Channel balance:
OUTPUT LEVEL:
Dimensions:
Poids:
Power consumption:
AC120V~60Hz
3dB within
100~300 mV
420X360X120mm
3.4KG
10W
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ION PROFILE FLASH
Summary of Contents for ION PROFILE FLASH
- Page 1 SERVICE MANUAL MODEL: PROFILE FLASH SPECIFICATION Blet drive manual turntable GENERAL: Plastic platter: 300mm Power supply: AC120V~60Hz SPEED: 33,45 tours Channel balance: 3dB within Wow & flutter: <0.25% OUTPUT LEVEL: 100~300 mV HIGH POWER TEST: 1.2KV/2SEC/1mA Dimensions: 420X360X120mm CUE UP HEIGHT:...
-
Page 2: Outline Diagram
OUTLINE DIAGRAM... - Page 3 LABEL POSITION DIAGRAM...
-
Page 4: Wiring Diagram
WIRING DIAGRAM... - Page 6 PLOFILE LP PARTS LIST PARTS NAME PART NO. Q,TY WIRE(PHONO CORD)(300M/M) WR1130032G1 TONE ARM ASS'Y PA1164427E TONE ARM ELEVATOR PT2003804 SPRING K133-8 4MM CS RING CSB74 PERMANENT LUG MT6704401 ARM REST ASS'Y TWPT200360301 SLIDE PLATE RETURN PT6710803 LEVER RETURN ASS'Y TWMT201110201 SPRING SP6711002...
- Page 7 PLOFILE LP PARTS LIST Q,TY PARTS NAME PART NO. BUTTON PT2010616 HARBOARD NM2030314 SP2030603 SPRING RUBBER STAND RU2030602 PLASTIC STAND PT2030603 DUST COVER PT2030103 CUSHION,DUST COVER PT2030501 TRANSFORMER ASS'Y TF48081601YH ADAPTOR PT320220101 CUSHION MOTOR RU4109301 CABINET PT2030210001(11) PT2030210101(12/13) PT2030210103(14) MOTOR ASS'Y TWM09S12U15-623 SPRING SP2010907...
- Page 8 PLOFILE LP PARTS LIST Q,TY PARTS NAME PART NO. SCREW SC0308WBNI SCREW SC0308RBNI HEAT METAL PT2030303 SCREW SC0312W8BBI SCREW SC0313RBBI SCREW SC0318RACI SCREW SC2608W8INI LCM FIX PLATE PT2004402 NAME PLATE NP220ION08 LCM ASS'Y TWLCMDL422G01 PCB ASS'Y TWPC08P017B01 PCB ASS'Y TWPC08P017D01 PCB ASS'Y TWPC08P017A01 SCREW...
-
Page 9: Packing Diagram
PACKING DIAGRAM... - Page 10 PC08P017...
- Page 11 TWPC08P01701...
- Page 12 TWPC08P01701 PARTS LIST Symbol No. NO. PART NO. PARTS NAME PC08P017 TWPC08P017A01 P.C.B ASS'Y Symbol No. NO. PART NO. PARTS NAME AL2-54-6306 TRANSISTOR FDC6306P AL2-71-0072 IC TL072-DR39 IC8,9 CS100J5003NPO C67,68 CCAP SMD 10PF,50V 0603 NPO CS101J5003NPO C39,54 CCAP SMD 100PF/50V 5% 0603 NPO CS102J5003NPO C45,49 CCAP SMD 1NF/50V 5% 0603 NPO...
- Page 13 TWPC08P01701 PARTS LIST TWPC08P017A01 P.C.B ASS'Y Symbol No. NO. PART NO. PARTS NAME ECS22616B EC13,22,23,28,29 ELECT CAPACTIOR SMD 22UF/16V ECS47535B EC31 ELECT CAPACTIOR SMD 4.7UF/35V IC7805 IC7805 ICAPL1117-33V ICAPL1117-33V ICBA10T IC 10V TO220FP ICDRV601 IC DRV601 QFN-20-DR99 ICM5675 IC M5675 LQFP 128 ICYH2K08P01 IC EN25F20 ICEN25F20...
- Page 14 TWPC08P01701 PARTS LIST TWPC08P017A01 P.C.B ASS'Y Symbol No. NO. PART NO. PARTS NAME RS056K10F03 R65,84 CARBON RESISTOR 56K 1% SMD 0603 RS05K610F03 R60,80 CARBON RESISTOR 5.6K 1% SMD 0603 RS082010F03 R67,85 CARBON RESISTOR 820Ω 1/10W 1% SMD 0603 RS100K10F03 R37,49,50 CARBON RESISTOR 100K 1% SMD 0603 RS220K10F03 R66,78...
- Page 15 TWPC08P01701 PARTS LIST TWPC08P017C01 P.C.B ASS'Y Symbol No. NO. PART NO. PARTS NAME RS010K10F03 R4,8 CARBON RESISTOR 10K 1/10W ±1% SMD 0603 RS022K10F03 R6,86 CARBON RESISTOR 22K 1% SMD 0603 TE10200602 TE13 CONNECTOR SOCKET 6P 90° 2.0MM TE622000302 CONNECTOR SOCKET 3P 90° TE12 TWPC08P017D01 P.C.B ASS'Y Symbol No.
