Microelettrica Scientifica MC2-30M Operation Manual

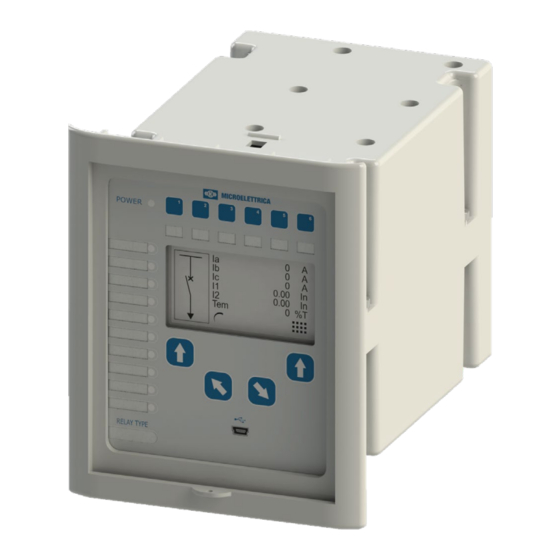

Microprocessor motor protection relay
Hide thumbs
Table of Contents

Advertisement

Quick Links

MC2-30M
MO-0495-ING
Doc. N°
MICROPROCESSOR
MOTOR PROTECTION
RELAY
TYPE
"MC2-30M"
OPERATION MANUAL
Copyright 2018
Date
17.03.2022
Rev.
2
Pag.
1
of
64
