Summary of Contents for nfortec NERVIA

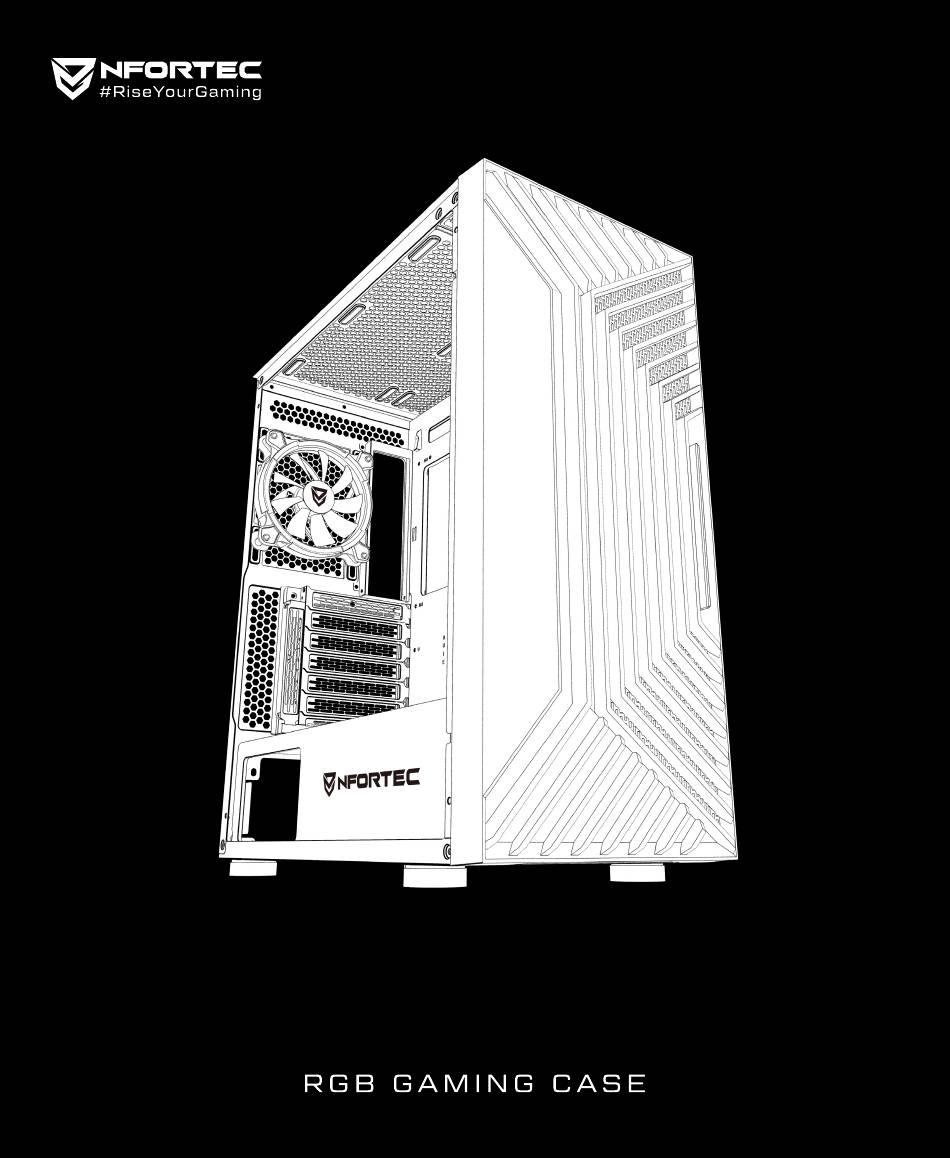

  • Page 1 INSTRUCTIONS MANUAL MANUAL DE INSTRUCCIONES N E R V I A...
  • Page 2: Technical Specifications

    TECHNICAL SPECIFICATIONS ESPECIFICACIONES TÉCNICAS MODEL NERVIA MODELO NERVIA DIMENSIONS (L x W x H) 430mm x 210mm x 465mm DIMENSIONES (L x An x Al) 430mm x 210mm x 465mm WEIGHT 6,6Kg PESO 6,6Kg MATERIAL Steel 0,6mm SPCC, tempered glass...
  • Page 3 PC CASE GENERAL DIAGRAM DIAGRAMA DE INFORMACIÓN GENERAL Magnetic Dust filter Front mesh panel HDD/SSD enclosure bays Filtro de polvo magnético Panel frontal mallado Bahías para discos duros HDD y SSD Side tempered glass 120mm RGB Fans Front panel I/O Cristal templado lateral Ventiladores RGB 120mm Panel frontal de E/S...
  • Page 4 FRONT PANEL I/O AND MOTHERBOARD CONNECTORS PANEL FRONTAL DE E/S Y CONECTORES PARA PLACA BASE Power USB 3.0 HD AUDIO Reset USB 2.0 ACCESORY BAG ACCESORIOS PARA INSTALACION x 17 PSU screws Motherboard standoffs Motherboard screws Soportes para placa base Tornillos para Placa base Tornillos para Fuente de alimentación HDD screws...
  • Page 5: Basic Installation

    BASIC INSTALLATION INSTALACIÓN BÁSICA Disassemble the side panel and the front panel. Desmontar los paneles laterales y el panel frontal. Install the power supply. Instalación de la fuente de alimentación. Install the motherboard. Instalación de la placa base. Install HDD/SSD. Instalación de discos duros HDD/SSD.
  • Page 6 Make sure the screw holes for PSU and the PC case are alligned before screwing. Asegúrate que los huecos para los tornillos de la fuente de alimentación se alinean de manera correcta con los de la torre antes de atornillar. Make sure that the motherboard aims at the copper cylinder and install the standoffs (No.2) before screwing in with the No.3 screws.
  • Page 7 Take off the hard disk enclosure for both HDD and SSD and install it with No.3/4 screws Desmonta el soporte para los discos HDD y SSD e instálalos con los tornillos No.3/4 Remove the bafle marked in the picture, make sure the VGA card aims at the motherboard slot and then fix VGA card and case with No.1 screw.
  • Page 8 Remove the screw holding the base of the PCIe slots and you can reattach it rotated by 90. This will change the orientation of the slots to vertical. Retira el tornillo que sujeta la base de las ranuras PCIe y podrás volverlo a fijar rotado 90. De esta forma la orientación de las ranuras pasará...
  • Page 9 FRONT FRONTAL Fans → 3x 120mm Ventiladores → 3x 120mm Radiator up to 360mm Radiador hasta 360mm SUPERIOR Fans → 2x 120mm Ventiladores → 2x 120mm → 2x 140mm → 2x 140mm Radiator up to 240mm Radiador hasta 240mm REAR TRASERO Fans →...
  • Page 10 N E R V I A...
