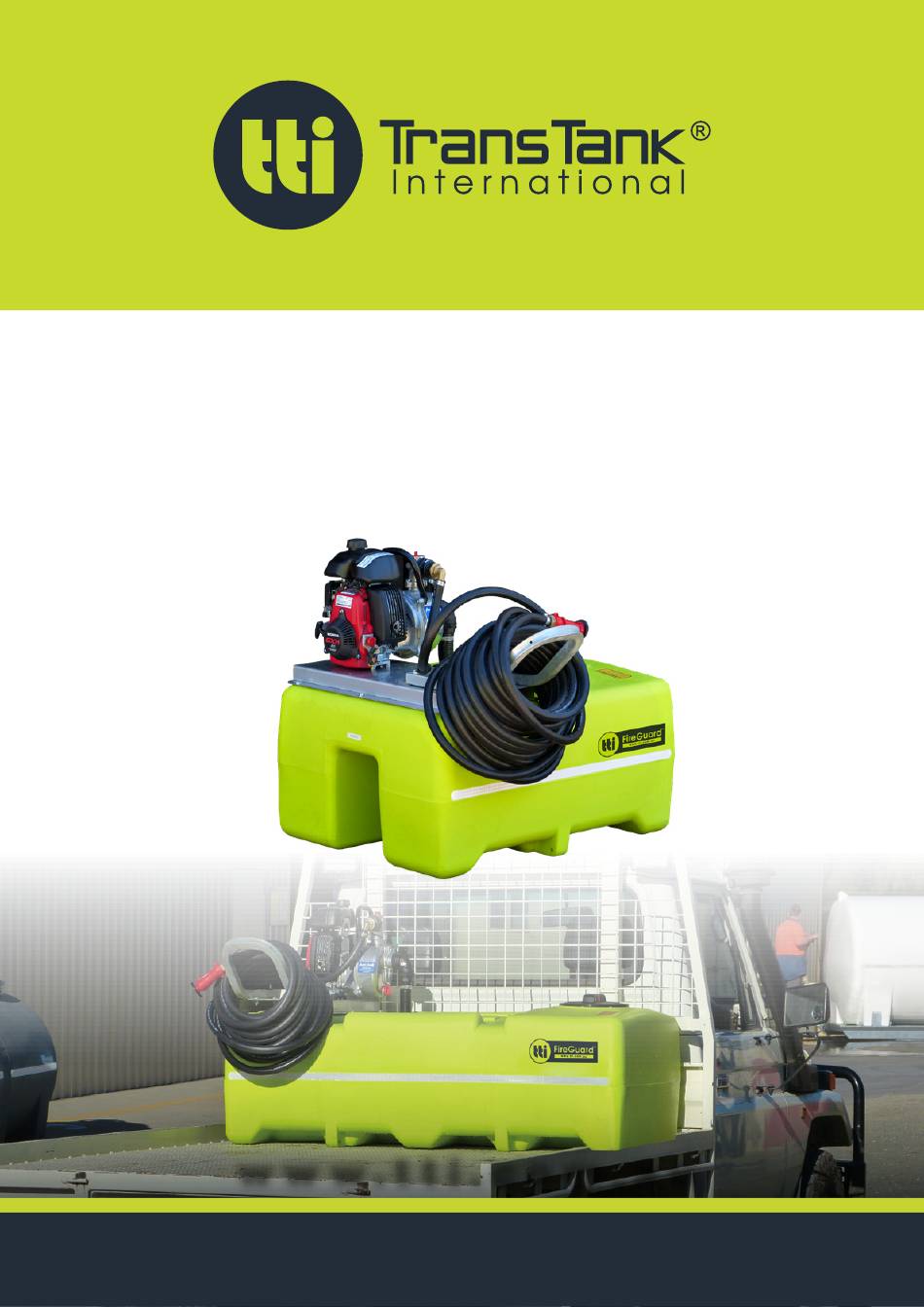

- Page 1 FireGuard ™ Operator’s HandBook w w w . t t i . c o m . a u Manufacturer of “The Safest Tanks in Motion”...
-
Page 2: Table Of Contents
General Information Specifications Description Machine Limitations Driving Stability Operating Instructions Before First Use Filling the Tank Pump Operation Procedure FireGuard Operation Risk Assessment Maintenance Periodic Checks Maintenance Schedule Trouble Shooting Warranty Warranty Policy What this Warranty Does Not Cover? How to Obtain Service Under this Warranty? Warranty Limitations w w w.tti.com. - Page 3 TTi manufactures two FireGuard units, a 220 litre and 400 litre tank sizes, both fitted with a petrol driven pump. This manual describes the operation, driving stability and maintenance procedures applicable to the unit.
-
Page 4: Safety
7. Ensure the capacity of the vehicle is suitable for the loaded mass of the FireGuard. Refer to the vehicle’s operator manual for safe working loads and relevant safety instructions. Do not exceed the carrying and braking capacity as specified by the vehicle manufacturer. -
Page 5: General Information
12. Care should be taken at all times, particularly when operating on rough or steep terrain. Drivers should be aware of fluid surge affecting the centre of gravity. 13. The FireGuard has safety labels affixed to various locations on the unit. These labels should be kept clean and legible, and replaced if damaged. - Page 6 ™ Product HandBook Figure 1 – Component Identification (220L FireGuard) Figure 2 – Component Identification (400L FireGuard with Optional Frame shown) Tank All TTi tanks are constructed from UV stabilised, impact resistant, virgin material polyethylene and are fully drainable. Due to the rotational moulding process, there may be a small variance in the overall dimensions of the tank, therefore, calibration markings should be used as a guide only.
-
Page 7: Machine Limitations
Operating Instructions Before first use Your FireGuard Portable Fire Fighting Unit is delivered fully assembled. Before use, it needs to be set up using the following instructions: Complete the warranty registration online at www.tti.com.au/warranty-registration, or use the Warranty Registration Card at the back of this handbook. - Page 8 6. Position your FireGuard onto the vehicle and mount securely to the tray. If using tie-down straps, they must be rated to at least the total mass of the unit when filled with water. There is one tie-down recess across the 220L FireGuard tank (refer to Figure 1), with two recesses for the 400L FireGuard (Figure 2).
-
Page 9: Filling The Tank
6. When the engine needs to be stopped, turn the power switch to the OFF position. If the FireGuard is not going to be used within the next few hours, shut the system down by turning the fuel tap to OFF. -
Page 10: Fireguard Operation
3. Unwind the fire hose from its bracket on the end of the FireGuard. Ensure the fire hose’s nozzle in closed. 4. Start the pump’s engine (referring to the Pump Operation Procedure above) and adjust engine speed. -
Page 11: Risk Assessment
FireGuard ™ Product HandBook Risk Assessment Task Hazard Risk Control Measure/Mitigation Partially fill the tank Manual handling; slips, Medium Concentrate on task; follow safe manual handling techniques: with water, start the trips or falls; petrol; motor & test fumes; fingers jammed •... -
Page 12: Maintenance
6. For the petrol engine driven pump, refer to the supplied Honda manual, drain and replace the engine oil in accordance with the manufacturer’s recommendations. 7. If the FireGuard is to be stored for an extended period, ensure the tank and all pipelines are empty and are not pressurised. Store the unit is a clean, dry and well-ventilated area. - Page 13 FireGuard ™ Product HandBook Daily Tasks The following tasks are to be undertaken daily, or prior to each use, of the FireGuard unit. Task Notes Inspect the FireGuard for any signs of damage or wear Clean, repair or replace Check fuel Top up as required Inspect engine’s air filter and housing for dust...
-
Page 14: Trouble Shooting
Date Signed All Daily, Weekly, Monthly, 3-Monthly, 6-Monthly and 12-Monthly tasks Trouble Shooting If a fault develops with the FireGuard, the following trouble shooting table provides guidance to identify and rectify the problem. Problem Possible cause Remedy Pump will not feed water... -
Page 15: Warranty
FireGuard ™ Product HandBook Warranty Warranty Policy TTI will, at its option, repair or replace without charge any part covered by this warranty which is found to be defective in material and/or workmanship within one (1) year after date of sale to the original retail purchaser. - Page 16 Scan to view our PDF Handbook online www.tti.com.au 1800 816 277 sa l e s@ tt i.c om.au P O B ox 1 37, N at ha li a , V I C , 3 63 8 M ur ray Va l l ey H w y, N ath a l i a , V I C 363 8 Quality Checked By: Proudly Built By: Signature...
