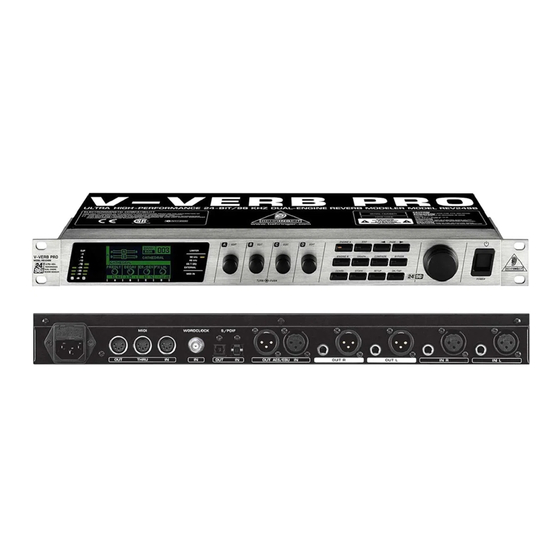

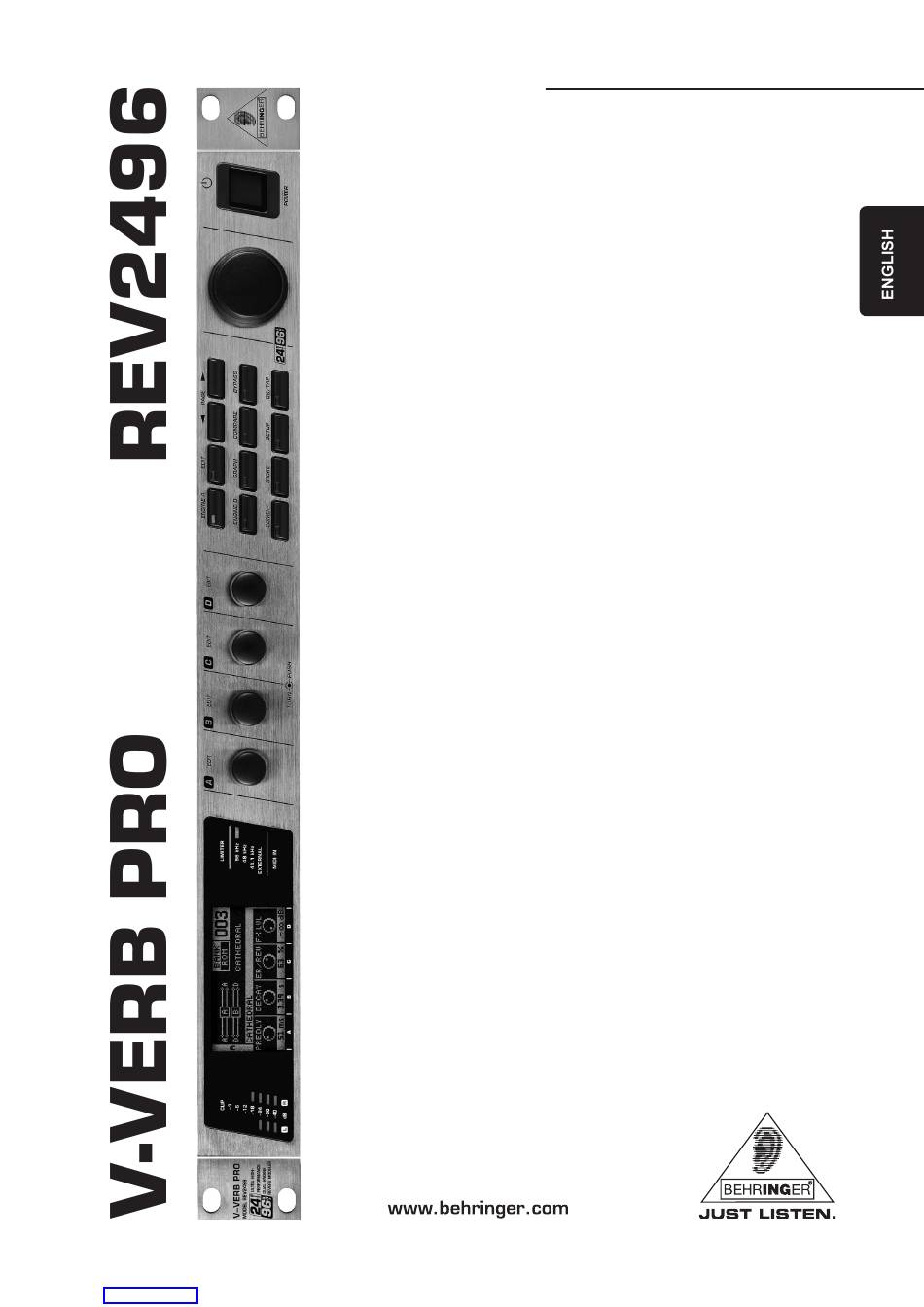

  • Page 1 User’s Manual Version 1.0 November 2003 Downloaded from ManualsNet.com search engine...
  • Page 2 V-VERB PRO REV2496 IMPORTANT SAFETY INSTRUCTIONS Downloaded from ManualsNet.com search engine...
  • Page 3 V-VERB PRO REV2496 V-VERB PRO Ultra High-Performance 24-Bit/96 kHz Dual-Engine Reverb Modeler s Reference-class reverb modeling processor with high-quality 24-bit/96 kHz A/D and D/A converters Full 4-channel operation up to 96 kHz without any limitations, providing two separate effects processors...
  • Page 4 V-VERB PRO REV2496 MENU STRUCTURE Downloaded from ManualsNet.com search engine...

  • Page 5: Table Of Contents

    V-VERB PRO REV2496 FOREWORD TABLE OF CONTENTS 1. INTRODUCTION ............6 2. CONTROL ELEMENTS AND CONNECTIONS ..... 7 3. OPERATION ............... 9 4. EFFECTS ..............14 5. APPLICATIONS ............20 6. MIDI FUNCTIONS ............23 7. INSTALLATION ............24 8. OPERATING SOFTWARE .......... 25 9.

  • Page 6: Introduction

    V-VERB PRO REV2496 1.1 Before you get started 1. INTRODUCTION 1.1.1 Shipment ® 1.1.2 Initial operation 1.1.3 Warranty 1.2 About this manual 1. INTRODUCTION Downloaded from ManualsNet.com search engine...

  • Page 7: Control Elements And Connections

    V-VERB PRO REV2496 1.3 Digital reverberation—then and now 2. CONTROL ELEMENTS AND CONNECTIONS 2.1 The front 1.4 Digital reverb modeling Fig. 2.1: Display section of the REV2496 MIDI IN LIMITER EXTERNAL Fig. 2.2: EDIT controls A - D 2. CONTROL ELEMENTS AND CONNECTIONS Downloaded from ManualsNet.com...
  • Page 8 V-VERB PRO REV2496 EDIT A - EDIT D OK/TAP PRESET POWER Fig. 2.3: Function keys and preset control ENGINE A ENGINE B 2.2 The rear EDIT A - D COMBI. EDIT Fig. 2.4: Analog inputs and outputs GRAPH INPUTS STORE...

  • Page 9: Operation

    V-VERB PRO REV2496 USER Engines A+B 001-100 101-200 Combinations 001-100 101-200 Tab. 3.1: Storage slots of the REV2496 WORDCLOCK 3.2 Selecting presets Fig. 2.6: MIDI connections and mains connector MIDI IN MIDI OUT MIDI THRU FUSE SWITCH 3.3 Editing presets 3.
  • Page 10 V-VERB PRO REV2496 3.3.1 Simple editing 3.3.3 Editing engines in GRAPH mode Fig. 3.1: Engine A (recall page) Fig. 3.3: GRAPH mode Ef f ec t EDIT A EDIT B EDIT C EDIT D 3.4 Editing combinations V -V erb...
  • Page 11 V-VERB PRO REV2496 Recall Edit COMBI V-Verb Decay ER/Rev Dry FX Level Concert Predelay Decay FX Level Cathedral Predelay Decay FX Level Theater Predelay Decay FX Level Gold Plate Predelay Decay FX Level Ambience Predelay Decay FX Level Gated Predelay...
  • Page 12 V-VERB PRO REV2496 3.5 COMPARE function 3.7 Restoring factory presets 3.8 SETUP menu 3.6 STORE—Storing programs Fig. 3.7: STORE page 3.8.1 I/O page Fig. 3.9: SETUP page 1 Fig. 3.8: Confirmation request before storing a preset 3. OPERATION Downloaded from ManualsNet.com...
  • Page 13 V-VERB PRO REV2496 3.8.2 DIGI page 3.8.3 GAIN page Fig. 3.10: SETUP page 2 Fig. 3.11: SETUP page 3 3.8.4 MIDI page Dis play Func tion Dithering and Noise Shaper deactiv ated 24 BIT Only dithering at 24 bit Fig. 3.12: SETUP page 4...

  • Page 14: Effects

    V-VERB PRO REV2496 4. EFFECTS 4.1 V-Verb Fig. 4.1: V-Verb effect configuration additionally 4. EFFECTS Downloaded from ManualsNet.com search engine...
  • Page 15 V-VERB PRO REV2496 4.2 Concert hall, cathedral, theater Fig. 4.2: Effect design for concert hall, cathedral and theater 4.3 Gold Plate Fig. 4.3: Effect design for Gold Plate 4. EFFECTS Downloaded from ManualsNet.com search engine...
  • Page 16 V-VERB PRO REV2496 4.5 Delay 4.4 Ambience, gated reverb, reverse reverb Fig. 4.4: Effect design for ambience, gated reverb and reverse reverb Fig. 4.5: Effect design of delay algorithm DL1 DL2 FDB 4. EFFECTS Downloaded from ManualsNet.com search engine...
  • Page 17 V-VERB PRO REV2496 4.7 Chorus/flanger 4.6 XOver Delay Fig. 4.7: Effect design for chorus/flanger Fig. 4.6: Effect design of the Xover delay effect 4. EFFECTS Downloaded from ManualsNet.com search engine...
  • Page 18 V-VERB PRO REV2496 4.8 Phaser Fig. 4.8: Phaser effect design 4. EFFECTS Downloaded from ManualsNet.com search engine...
  • Page 19 V-VERB PRO REV2496 4.10 Compressor 4.9 Tremolo Fig. 4.10: Compressor design Fig. 4.9: Design of the tremolo effect 4. EFFECTS Downloaded from ManualsNet.com search engine...

  • Page 20: Applications

    V-VERB PRO REV2496 SETUP Routing Parallel 5, 6; Serial 1, 2 Master Input analog Wet Dry Mix external Tab. 5.1: SETUP configuration for wiring the REV2496 via aux busses 5. APPLICATIONS 5.1 Using the V-VERB PRO in the aux bus Fig.
  • Page 21 V-VERB PRO REV2496 5.2 Using the V-VERB PRO in the insert path Fig. 5.3: The REV2496 in connection with a guitar amp Fig. 5.2: Wiring the V-VERB PRO in the insert path SETUP Routing Parallel 1, 3 (only lef t input), Serial 1...
  • Page 22 V-VERB PRO REV2496 5.4 The V-VERB PRO in digital environment 5.5 The V-VERB PRO in 4-channel operation Fig. 5.5: V-VERB PRO in 4-channel operation with an external A/D-D/A converter Fig. 5.4: V-VERB PRO and DDX3216 SETUP Routing Parallel 1, 2, 3, 4; Serial 3, 4...

  • Page 23: Midi Functions

    V-VERB PRO REV2496 6.1 MIDI settings 6. MIDI FUNCTIONS Fig. 6.2: MIDI SETUP page LVSOD\ 0 RGH neither sends nor receives data PROGR. sends and receives only program changes CONTR. sends and receives only controls SY SEX sends and receives only Sys Ex data...

  • Page 24: Installation

    V-VERB PRO REV2496 6.4 Backing up data via MIDI Fig. 7.1: XLR connections and this will happen without a confirmation being given about it Fig. 7.2: 1/4" TS connector 7. INSTALLATION 7.1 Installation in a rack Fig. 7.3: 1/4" TRS connector 7.3 Digital inputs and outputs...

  • Page 25: Operating Software

    V-VERB PRO REV2496 7.4 WORDCLOCK connection 8. OPERATING SOFTWARE 9. SPECIFICATIONS Ω Ω Fig. 7.4: End connection of the wordclock input ß ß ß 7.5 MIDI connections Ω Ω ® 8. OPERATING SOFTWARE Downloaded from ManualsNet.com search engine...

  • Page 26: Midi Implementation

    V-VERB PRO REV2496 10. MIDI IMPLEMENTATION Fig. 10.1: MIDI implementation 10. MIDI IMPLEMENTATION Downloaded from ManualsNet.com search engine...

  • Page 27: Warranty

    ® of their respective owners. Their use neither constitutes a claim of the trademarks by BEHRINGER nor affiliation of the trademark owners with ®...
