TeleAdapt TA-8210 User Manual page 4

Mounting and Installation

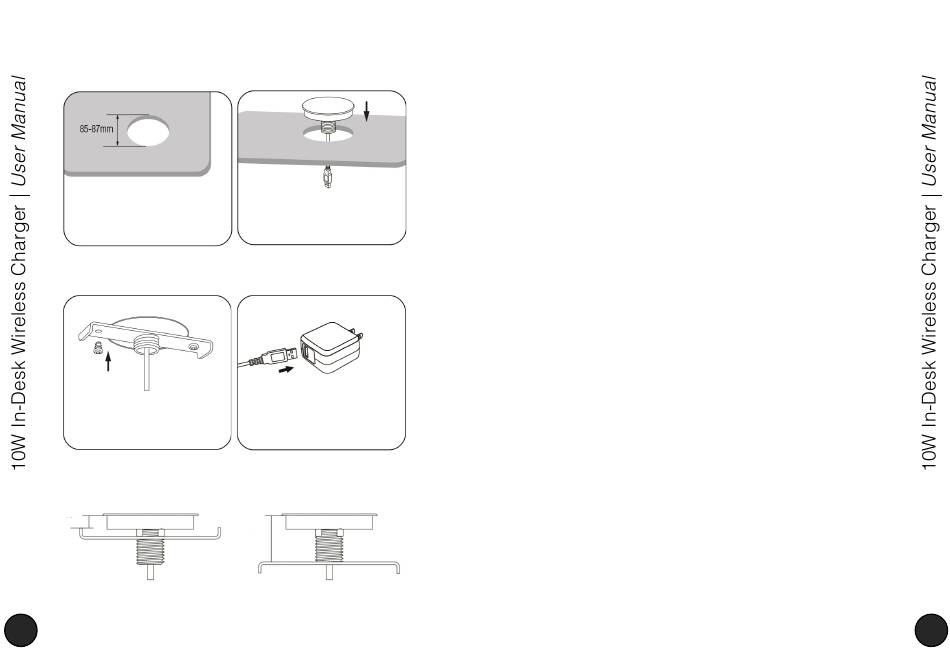

Step 1
Drill through a hole with diameter
85-87mm in work surface.
Step 3
You can fit the screw fixture to a
range of desk thicknesses and fix
with the 2 screws provided.
Note: The screw fixture design enables you to secure the module to a range of
work top thicknesses (16mm-40mm).
16mm
4
Step 2
Fit the module into the hole in the
work surface from the top..
Step 4
Connect the AC power adapter to
the USB port then plug the power
adapter into a mains outlet.
40mm
Usage
Simply place a compatible device on the charger and position so that
the device shows it is charging.
Specifications
Power Supply: QC3.0 (5V/1.65A,9V/1.75A)
Wireless Output: 5/7.5/10W (phone dependent).
Switching Frequency: 110KHz-205KHz
Operating Temperature Range: 0 ~ 40°C
Storage Temperature Range: -20 ~ 60°C
Operation Humidity: 20% ~ 80% RH
Storage Humidity: 10% ~ 90% RH
Size: 84mm (Dia.) x 44mm (H)
