RIFFE HORIZONTAL REEL
INSTALLATION GUIDE
(RL-1500 / RL1500R)
(RL-1600 / RL-1600R)

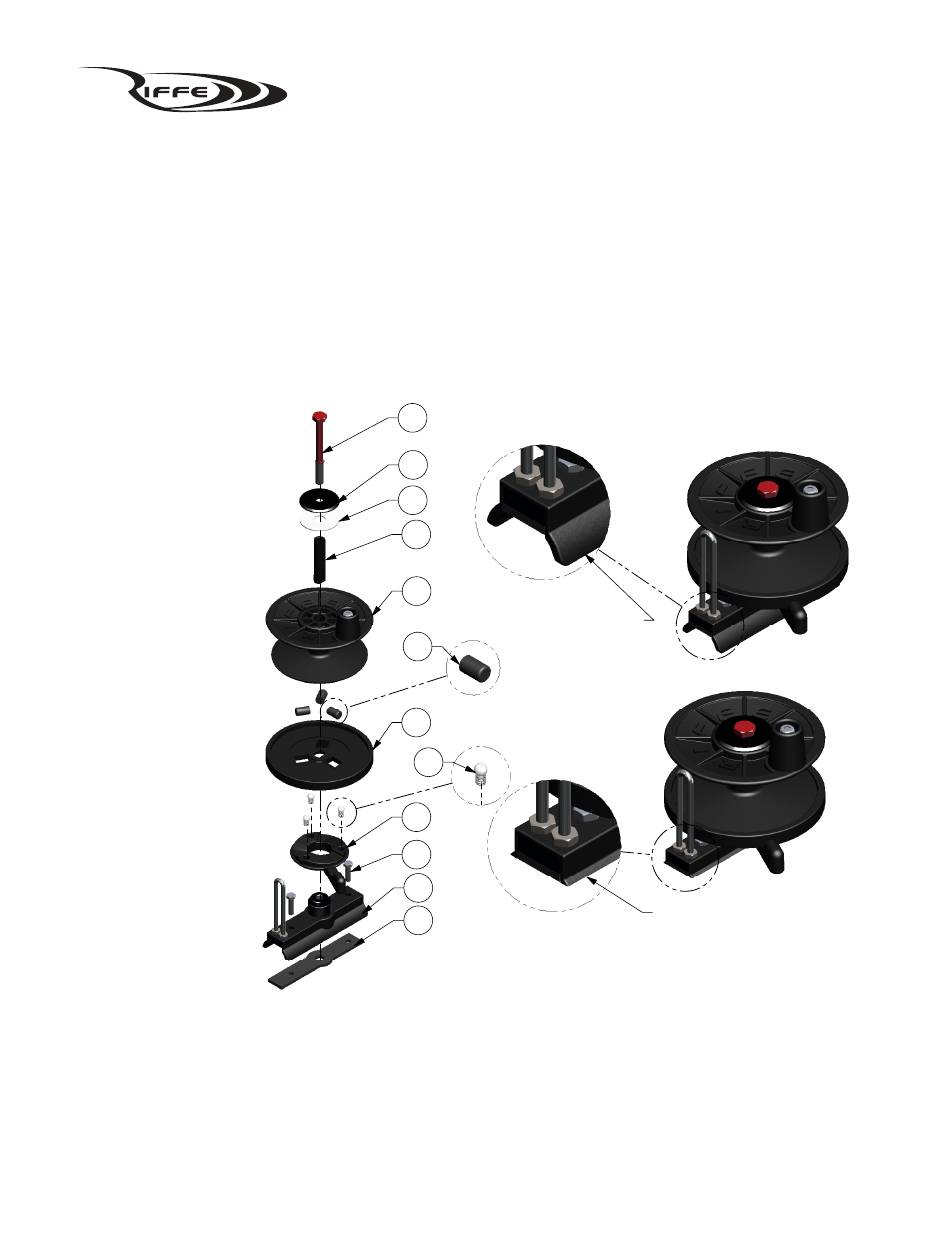

REEL EXPLODED VIEW
12. REEL AXIS BOLT
11. THRUST WASHER
10. TEFLON WASHER
9. BEARING TUBE
8. SPOOL & KNOB ASSEMBLY
7. DRAG ROLLERS
6. DRAG CONTROL PLATE
5. SPRING BALLS
4. DRAG LEVER
3. SCREWS
2. MOUNTING BASE ASSEMBLY
1. GASKET
12
11
10
9
8
RADIAL BASE ASSEMBLY
(REEL PART NO. RLL-1500R)
7
6
5
4
3
2
1
ITEM
QTY.
NO.
1
1
2
1
3
2
4
1
5
3
6
1
7
3
8
1
9
1
10
1
11
1
RIFFE International Inc.
12
1
1214 Puerta Del Sol, San Clemente, CA 92673
info@speargun.com www.riffeinternational.com
RIFFE INTERNATIONAL, INC.
exploded view of Horizontal Reel (RL-1500)
RADIAL BASE ASSEMBLY
FLAT BASE ASSEMBLY
FLAT BASE ASSEMBLY
(REEL PART NO. RLL-1500)
PART NUMBER
RUBBER GASKET
ALUM BASE ASSY W/ HOUSING
10-24 X .75 HEX HEAD BOLT or
HEX HEAD WOOD SCREWS
SPRING BALL ASSEMBLY
RL-1012
(REPLACEMENT PART)
DRAG CONTROL PLATE
RL-1005
(REPLACEMENT PART)
SPOOL AND KNOB ASSY
TEFLON WASHER
THRUST WASHER 1.5" DIAMETER
AXIS BOLT 5/16-18 X 3" BOLT
DESCRIPTION
DRAG LEVER
DRAG ROLLER
BEARING TUBE
Advertisement
Related Manuals for Riffe RL-1500
Summary of Contents for Riffe RL-1500
- Page 1 RIFFE HORIZONTAL REEL INSTALLATION GUIDE (RL-1500 / RL1500R) (RL-1600 / RL-1600R) REEL EXPLODED VIEW RIFFE INTERNATIONAL, INC. exploded view of Horizontal Reel (RL-1500) 12. REEL AXIS BOLT 11. THRUST WASHER 10. TEFLON WASHER 9. BEARING TUBE 8. SPOOL & KNOB ASSEMBLY 7.
- Page 2 INSTALLING REEL BASE RIFFE INTERNATIONAL, INC. Spool exploded view of Horizontal Reel (RL-1500) STEP 7: Washer STEP 8: STEP 7: **If you have an 8mm wrench that will fit under the Drag Control Plate STEP 8: Reel Axis Bolt to access the screws, you do not need to disassemble the Reel.
