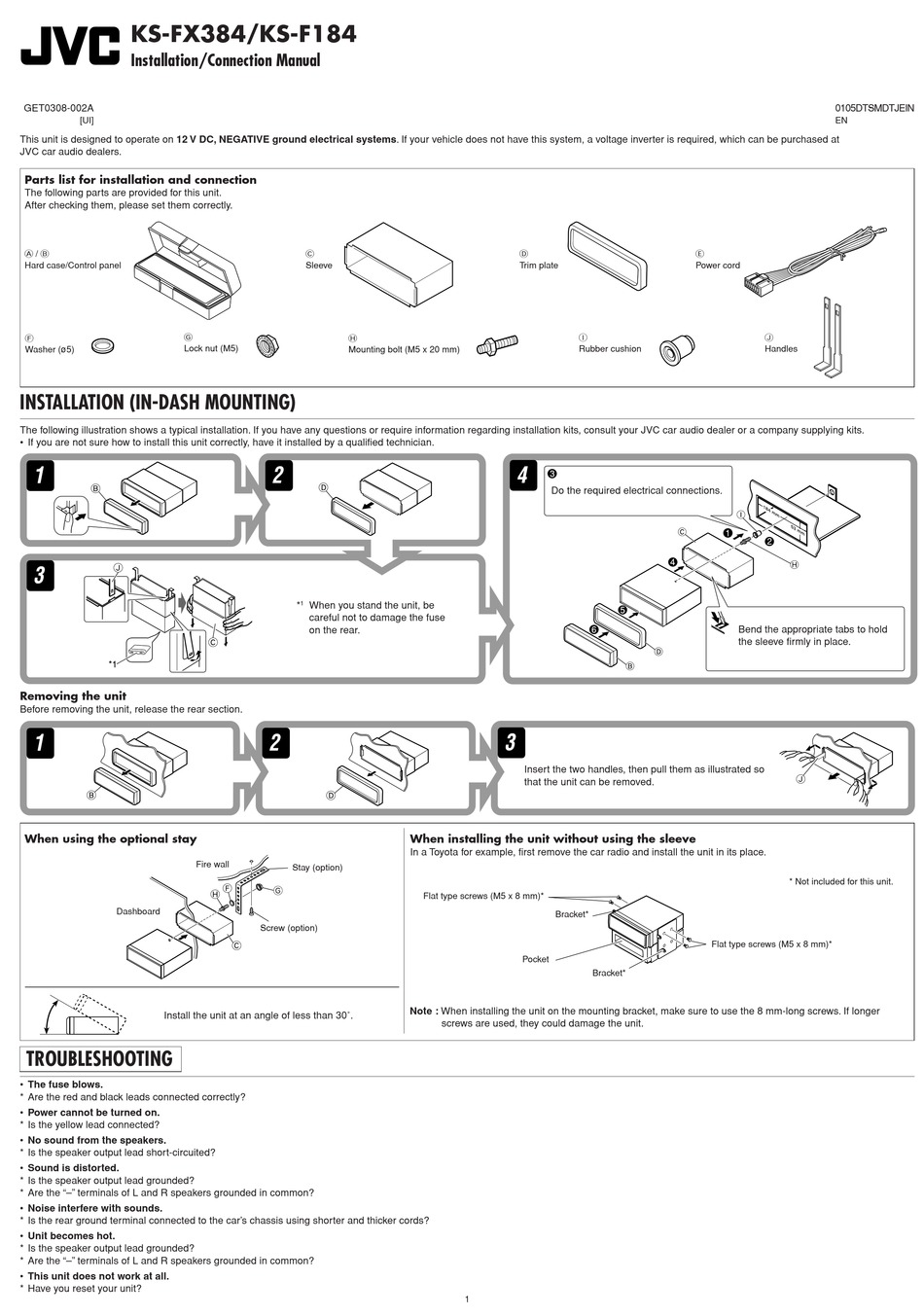

KS-FX384/KS-F184
Installation/Connection Manual
GET0308-002A
[UI]
This unit is designed to operate on 12 V DC, NEGATIVE ground electrical systems. If your vehicle does not have this system, a voltage inverter is required, which can be purchased at
JVC car audio dealers.

Parts list for installation and connection

The following parts are provided for this unit.
After checking them, please set them correctly.
A / B
Hard case/Control panel
G
F
Lock nut (M5)
Washer (ø5)

INSTALLATION (IN-DASH MOUNTING)

The following illustration shows a typical installation. If you have any questions or require information regarding installation kits, consult your JVC car audio dealer or a company supplying kits.
• If you are not sure how to install this unit correctly, have it installed by a qualified technician.

Removing the unit

Before removing the unit, release the rear section.
When using the optional stay
Dashboard
Install the unit at an angle of less than 30˚.

TROUBLESHOOTING

• The fuse blows.
* Are the red and black leads connected correctly?
• Power cannot be turned on.
* Is the yellow lead connected?
• No sound from the speakers.
* Is the speaker output lead short-circuited?
• Sound is distorted.
* Is the speaker output lead grounded?
* Are the "–" terminals of L and R speakers grounded in common?
• Noise interfere with sounds.
* Is the rear ground terminal connected to the car's chassis using shorter and thicker cords?
• Unit becomes hot.
* Is the speaker output lead grounded?
* Are the "–" terminals of L and R speakers grounded in common?
• This unit does not work at all.
* Have you reset your unit?
C
Sleeve
H
Mounting bolt (M5 x 20 mm)
*
1
When you stand the unit, be
careful not to damage the fuse
on the rear.
Fire wall
Stay (option)
Screw (option)
D
Trim plate
I
Rubber cushion
Do the required electrical connections.
Insert the two handles, then pull them as illustrated so
that the unit can be removed.
When installing the unit without using the sleeve
In a Toyota for example, first remove the car radio and install the unit in its place.
Flat type screws (M5 x 8 mm)*
Bracket*
Pocket
Note : When installing the unit on the mounting bracket, make sure to use the 8 mm-long screws. If longer
screws are used, they could damage the unit.
1
E
Power cord
J
Handles
Bend the appropriate tabs to hold
the sleeve firmly in place.
Flat type screws (M5 x 8 mm)*
Bracket*
0105DTSMDTJEIN
EN
* Not included for this unit.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KS-FX384 and is the answer not in the manual?

Questions and answers

Summary of Contents for JVC KS-FX384

  • Page 1 INSTALLATION (IN-DASH MOUNTING) The following illustration shows a typical installation. If you have any questions or require information regarding installation kits, consult your JVC car audio dealer or a company supplying kits. • If you are not sure how to install this unit correctly, have it installed by a qualified technician.
  • Page 2 Notes: • Replace the fuse with one of the specified rating. If the fuse blows frequently, consult your JVC car audio dealer. • Maximum input of the speakers should be more than 45 W at the rear and 45 W at the front, with an impedance of 4 Ω to 8 Ω.
