Double lock hand seamer
Item no.:
Seam height
91515-1
from 25 mm/1"
Max Draenert Apparatebau GmbH & Co. KG
Gutenbergstrasse 15-17
D-73779 Deizisau
K7-1
Closing length Length
210 mm
: +49-(0)7153-82170
www.dracotools.com
:
@: info@dracotools.com
Always wear protective gloves!
Width
310 mm
320-610 mm
Weight
3,3 kg
Advertisement
Table of Contents
Related Manuals for Draco K7-1
Summary of Contents for Draco K7-1

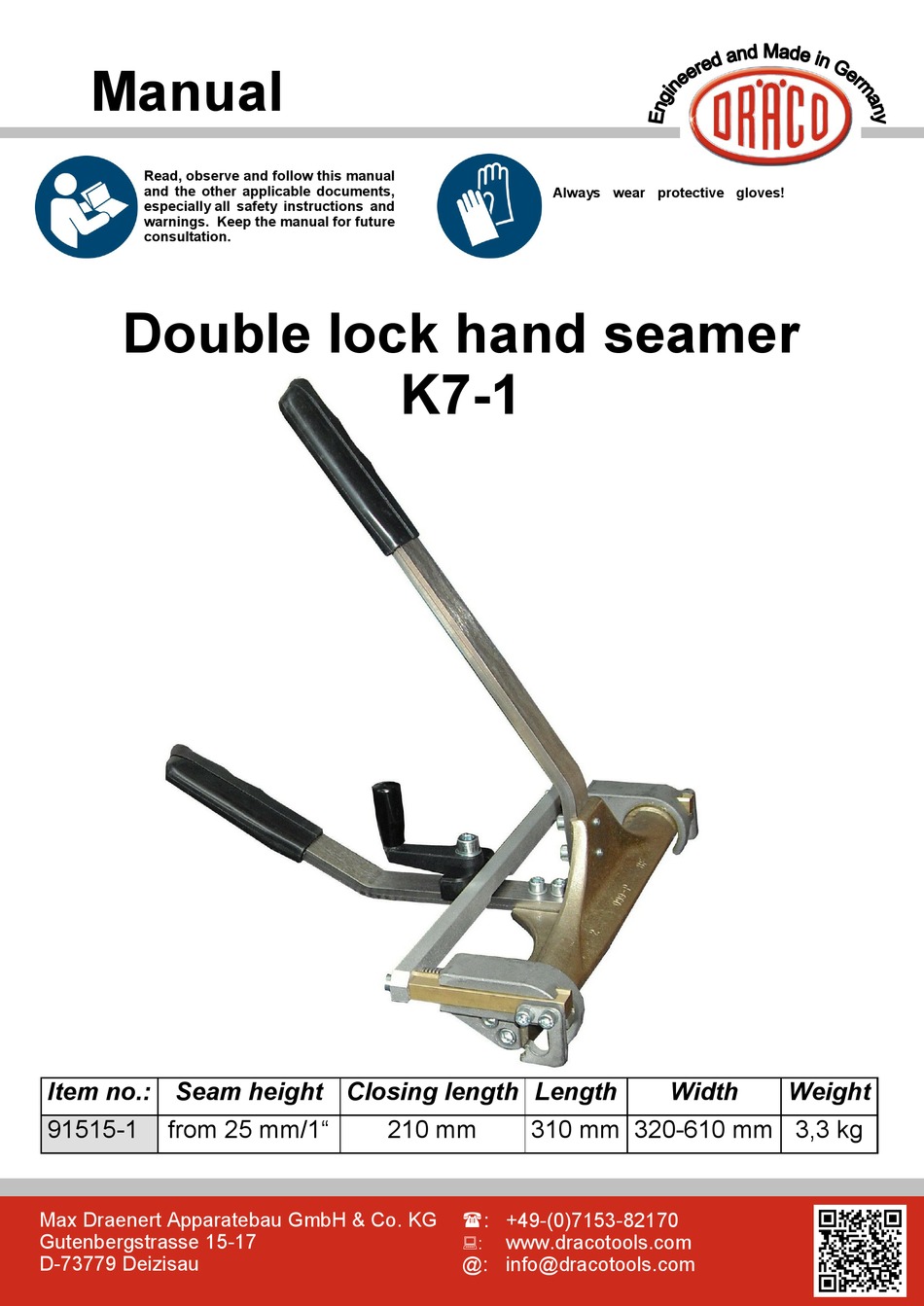

- Page 1 Read, observe and follow this manual and the other applicable documents, Always wear protective gloves! especially all safety instructions and warnings. Keep the manual for future consultation. Double lock hand seamer K7-1 Item no.: Seam height Closing length Length Width Weight 91515-1 from 25 mm/1“...
- Page 2 D Clamping hooks E Side guides (L+R) 2. Intended use The K7-1 double lock hand seamer can only be used to manually close of the pre-closed standing seam to a double standing seam in the material thicknesses mentioned under point 3.
- Page 3 Fig. 1: Starting position: Eccentric lever in "OPEN" position (parallel to seam) and closing handle in open position. Place the K7-1 like here shown on the seam. Fig. 2: 2.1 Eccentric lever in "CLOSED" position (parallel to Apply handle) so that both clamping hooks are locked under the standing seam.
- Page 4 Manual 7. Spare parts Max Draenert Apparatebau GmbH & Co. KG : +49-(0)7153-82170 Gutenbergstrasse 15-17 www.dracotools.com : D-73779 Deizisau @: info@dracotools.com...
