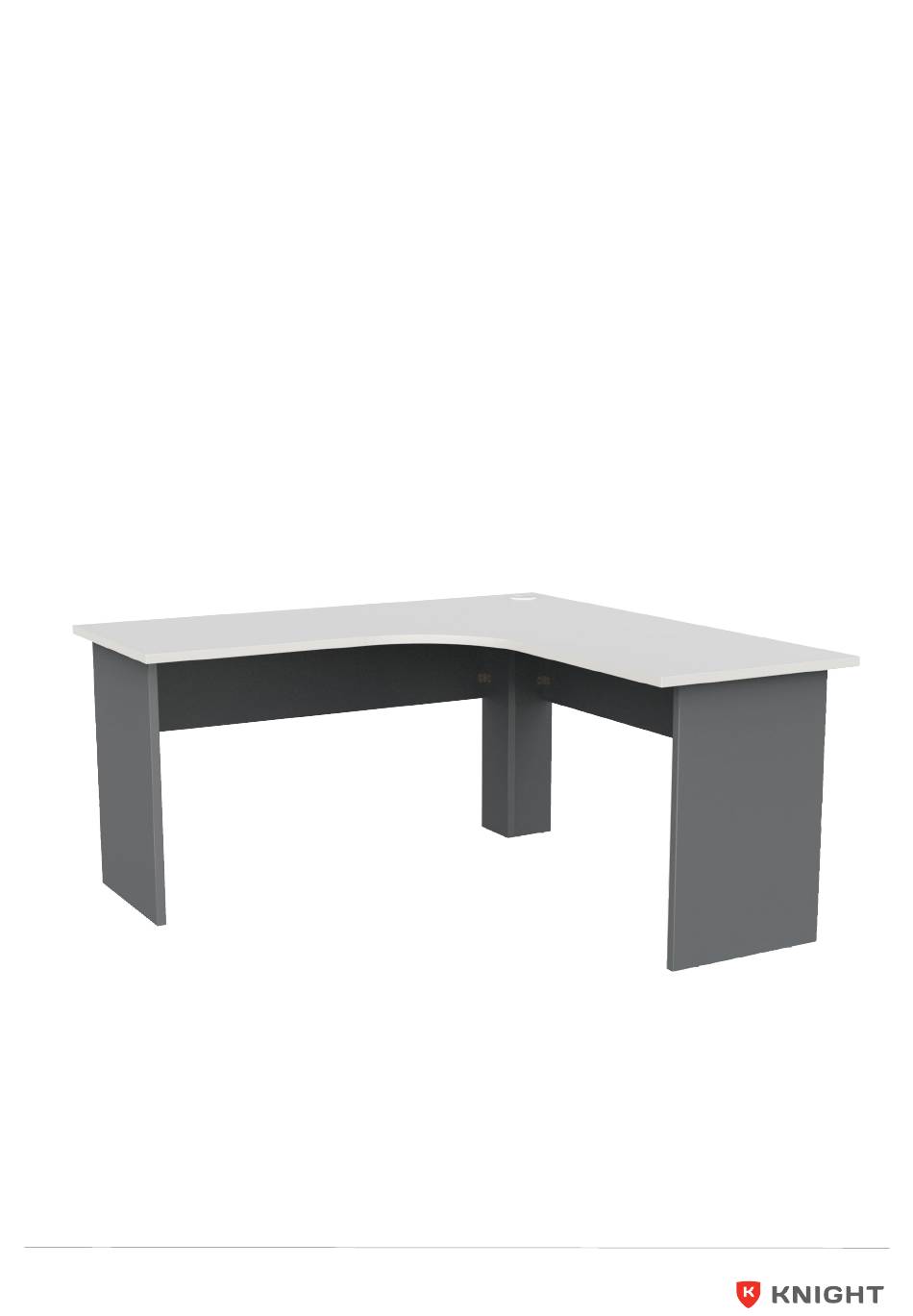

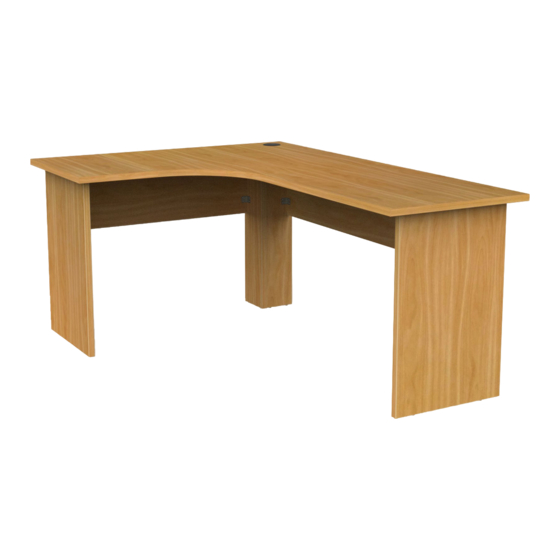

- Page 1 Ergoplan Workstation Assembly Instructions Tools Required: Powered Screwdriver knightgroup.co.nz...
-
Page 2: Setup And Installation
Ergoplan Workstation Assembly Instructions Thank you for purchasing Knight product, please carefully read the assembly instructions prior to installment to gain a complete understanding of the product. It provides you with important information about the safety, use, installation and maintenance. - Page 3 Ergoplan Workstation Assembly Instructions Parts Incorrect Correct Item Description Quantity The turning direction of attaching Top Panel - Large Top Panel - Small Left Side Panel Right Side Panel Modesty Panel Corner Leg Panel 1 Corner Leg Panel 2 knightgroup.co.nz...
- Page 4 Ergoplan Workstation Assembly Instructions Parts Item Description Quantity 6x35 Cam Bolt 8x30 Dowel Pin Cam Sticker Connector Plate 6x12 Screw Connector Bracket 3.5x15 Screw 6x60 Screw c1 6x35 Cam Bolt d1 8x30 Dowel Pin c2 Cam Sticker c3 Connector Plate...
- Page 5 Ergoplan Workstation Page 1 Page 1 Assembly Instructions Assembly Instructions Step 1 Preparation for top panel A1 and A2, left side panel X, right side panel Z and corner leg panel Y1 and Y2. lnsert cam bolts (c1) and dowel pins (d1) into panels A1, A2, X, Z, Y1 and Y2.
- Page 6 Ergoplan Workstation Page 2 Page 2 Assembly Instructions Assembly Instructions Step 2 Top panel A1 and A2 assembly. Align top panel A1 and A2 and secure by inserting connectors (c4). Fix panel A1 and A2 using connector plates (c3) with screws (s3).
- Page 7 Ergoplan Workstation Page 3 Assembly Instructions Step 3 Left side panel X, corner leg panel Y1, and modesty panel D assembly. Insert cam bolts (c1) on panels X and Y1 into cams on panel D and tighten in a clockwise direction.
- Page 8 Ergoplan Workstation Page 4 Assembly Instructions Step 4 Top panel A assembly to panel Y1, D and X. Insert cam bolts (c1) on panel A into cams on panels Y1, D and X and tighten in a clockwise direction. knightgroup.co.nz...
- Page 9 Ergoplan Workstation Page 5 Page 5 Assembly Instructions Assembly Instructions Step 5 Right side panel Z, corner leg panel Y2, and modesty panel D assembly. Insert cam bolts (c1) on panels Z and Y2 into cams on panel D and tighten in a clockwise direction.
- Page 10 Ergoplan Workstation Page 6 Assembly Instructions Step 6 Top panel A assembly to panel Y2, D and Z. Insert cam bolts (c1) on panel A into cams on panels Y2, D and Z and tighten in a clockwise direction. Cover top of cams with cam stickers (c2).
- Page 11 Ergoplan Workstation Page 7 Assembly Instructions Step 7 Corner leg panel Y2, corner leg panel Y1, and modesty D assembly. Secure panel Y1 to panel Y2 with screws (s8). Secure panel Y2 and Z to panel D with bracket (b1) with screws (s1). ��...
- Page 12 Ergoplan Workstation Page 8 Assembly Instructions Complete knightgroup.co.nz...
