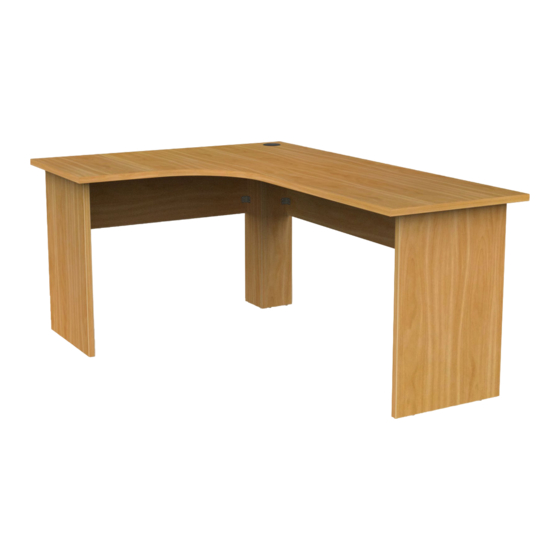

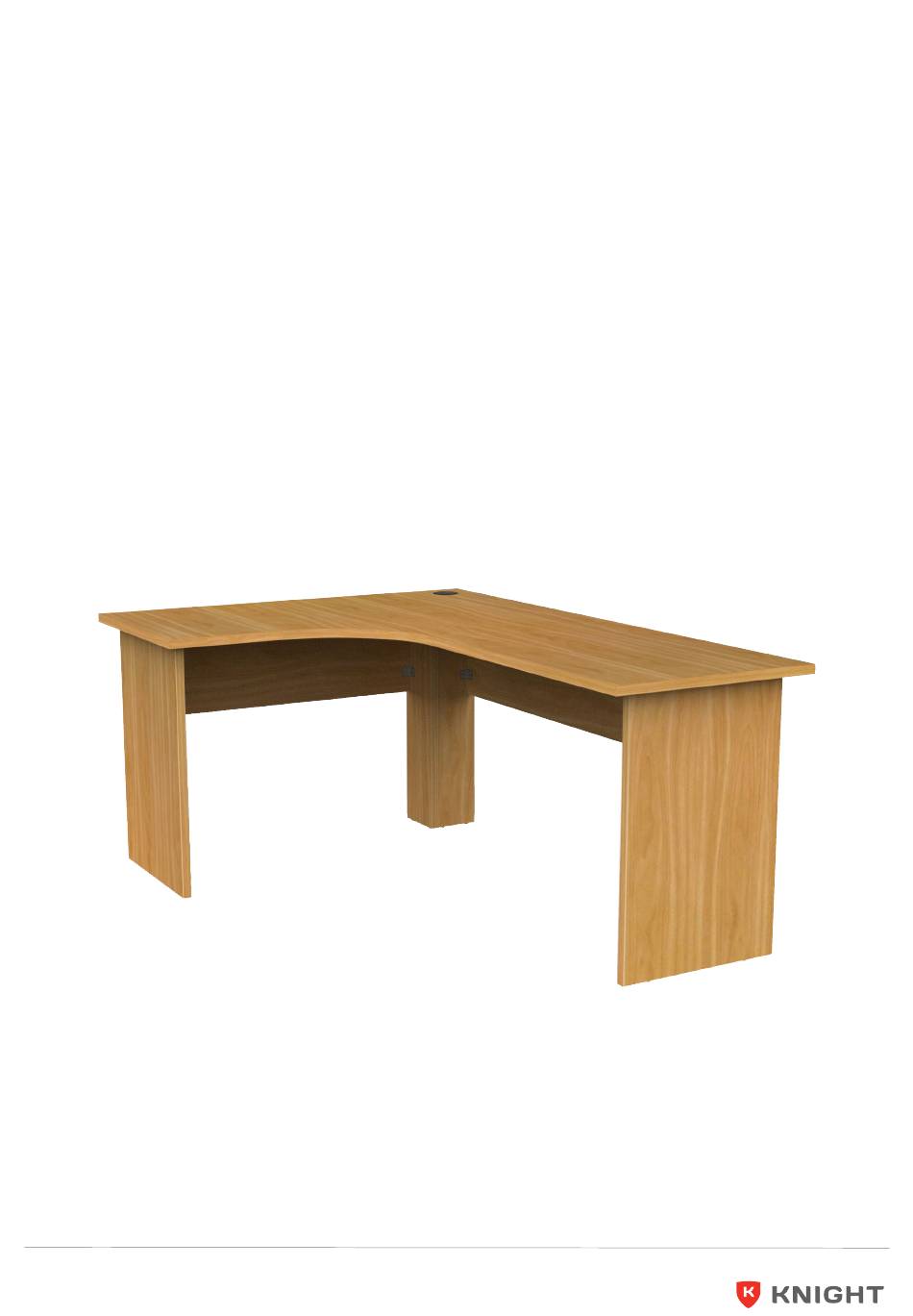

- Page 1 Ergoplan Workstation (1200LH x 1700RH) Assembly Instructions Tools Required: Powered Screwdriver knightgroup.co.nz...
-
Page 2: Setup And Installation
(1200LH x 1700RH) Assembly Instructions Thank you for purchasing Knight product, please carefully read the assembly instructions prior to installment to gain a complete understanding of the product. It provides you with important information about the safety, use, installation and maintenance. - Page 3 Ergoplan Workstation (1200LH x 1700RH) Assembly Instructions Parts Incorrect Correct Item Description Quantity The turning direction of attaching Top Panel Left Side Panel Right Side Panel Back Panel 1 Back Panel 2 Corner Leg Panel 1 Corner Leg Panel 2...
- Page 4 Ergoplan Workstation (1200LH x 1700RH) Assembly Instructions Parts Item Description Quantity 6x35 Cam Bolt 8x30 Dowel Pin Cam Sticker Bracket 3.5x15 Screw 6x60 Fix Bolt c1 6x35 Cam Bolt d1 8x30 Dowel Pin c2 Cam Sticker b1 Bracket s1 3.5x15 Screw...
- Page 5 Ergoplan Workstation Page 1 Page 1 (1200LH x 1700RH) Assembly Instructions Assembly Instructions Step 1 Preparation for top panel A, left side panel X, right side panel Z, back panel D1 and D2 and corner leg panel Y1 and Y2.
- Page 6 Ergoplan Workstation Page 2 Page 2 (1200LH x 1700RH) Assembly Instructions Assembly Instructions Step 2 Right side panel Z, corner leg panel Y2 and back panel D2 assembly. Insert cam bolts (c1) on panel Z and Y2 into cams on panel D2 and tighten in a clockwise direction.
- Page 7 Ergoplan Workstation Page 3 Page 3 (1200LH x 1700RH) Assembly Instructions Assembly Instructions Step 3 Top panel A assembly to panel Y2, D2 and Z. Insert cam bolts (c1) on panel A into cams on panels Y2, D2 and Z and tighten in a clockwise direction.
- Page 8 Ergoplan Workstation Page 4 Page 4 (1200LH x 1700RH) Assembly Instructions Assembly Instructions Step 4 Left side panel X, corner leg panel Y1 and back panel D1 assembly. Insert cam bolts (c1) on panel X and Y1 into cams on panel D1 and tighten in a clockwise direction.
- Page 9 Ergoplan Workstation Page 5 Page 5 (1200LH x 1700RH) Assembly Instructions Assembly Instructions Step 5 Top panel A assembly to panel Y1, D1 and X. Insert cam bolts (c1) on panel A into cams on panels Y1, D1 and X and tighten in a clockwise direction.
- Page 10 Ergoplan Workstation Page 6 Page 6 (1200LH x 1700RH) Assembly Instructions Assembly Instructions Step 6 Corner leg panel Y2, corner leg panel Y1, and modesty D1 and D2 assembly. Secure panel Y1 to panel Y2 with screws (s8). Secure panel Y2 and Z to panel D2 with bracket (b1) with screws (s1).
- Page 11 Ergoplan Workstation Page 7 (1200LH x 1700RH) Assembly Instructions Complete knightgroup.co.nz...
