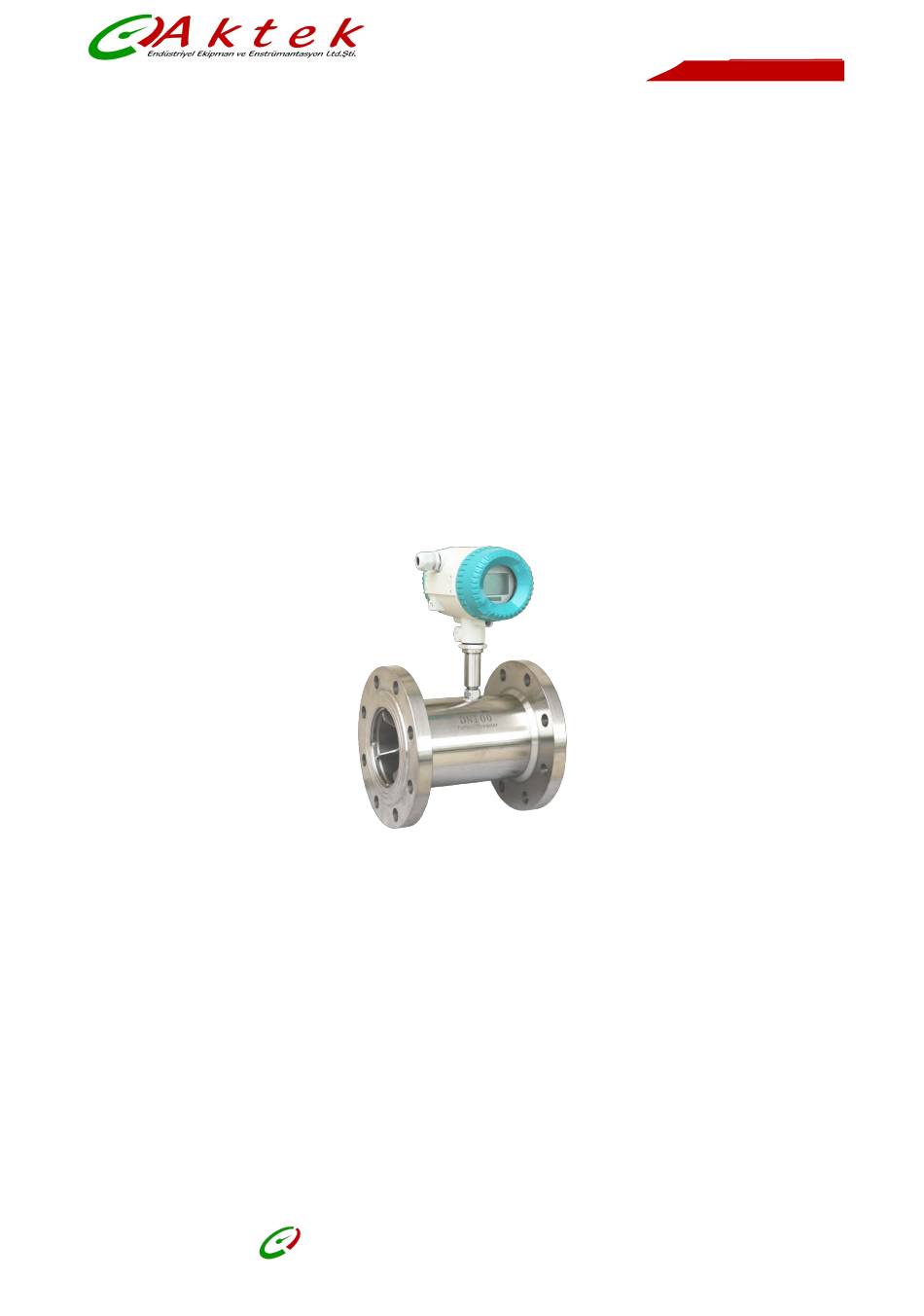

- Page 1 Turbine Flowmeter TRFM 1.0 User Manual AKTEK Endüstriyel Ekipman ve Enstrümantasyon LTD.ŞTİ. İMES Sanayi Sitesi B-Blok 204.Sok. No:40 Y.Dudullu-Ümraniye/İSTANBUL...
-
Page 2: Table Of Contents
3.1.1TB3WE Three-Wire System Electric Wiring........10 3.1.2 TB2WE Three-Wire System Electric Wiring........10 3.2 Local LCD Operation Instruction..............11 3.2.1 User Menu Operation................11 3.2.2 User Data Setting...................11 Appendix........................15 AKTEK Endüstriyel Ekipman ve Enstrümantasyon LTD.ŞTİ. İMES Sanayi Sitesi B-Blok 204.Sok. No:40 Y.Dudullu-Ümraniye/İSTANBUL... -
Page 3: General
I. General 1.1 Introduction TRFM 1.0 turbine flow meter consists of turbine flow sensor and display instrument and it is made by us using foreign state-of-the-art technologies, which is an ideal gauge for measuring of liquid flow. The flow meter is characterized by simple structure, high precision and easy installation and repair. -
Page 4: Working Principle
Instrument factor of each sensor will be filled out in verification certificate by the manufacturer. The instant flow and cumulative flow will be displayed when the value of k is loaded into associated display instrument. AKTEK Endüstriyel Ekipman ve Enstrümantasyon LTD.ŞTİ. İMES Sanayi Sitesi B-Blok 204.Sok. No:40 Y.Dudullu-Ümraniye/İSTANBUL... -
Page 5: Major Technical Performance
2)Three sire 4-20mA linearity correction current output(need ground wire)(load resistance≤800Ωat 24V) 3)RS485 communication:flowmeter with RS485 interface, communication distance ≤ 1200mm. b)TB2WE Two Wire 1) Two wire 4~20mA linearity correction current output(need ground wire)(load resistance≤600Ωat 24V) AKTEK Endüstriyel Ekipman ve Enstrümantasyon LTD.ŞTİ. İMES Sanayi Sitesi B-Blok 204.Sok. No:40 Y.Dudullu-Ümraniye/İSTANBUL... - Page 6 Please specify when placing an order if flange connections are required for pipe diameter of DN15～DN40. Please specify when placing an order for high pressure type and special requirements. iagram Drawing 3 Insertion Vortex Flowmeter Outline Size and Installation D AKTEK Endüstriyel Ekipman ve Enstrümantasyon LTD.ŞTİ. İMES Sanayi Sitesi B-Blok 204.Sok. No:40 Y.Dudullu-Ümraniye/İSTANBUL...
-
Page 7: Overall Dimension
Fig. 1 Structure of DN4～DN10 sensor and installation dimension diagram Filter 2. Front straight pipe section 3. Impeller 4. Preamplifier 5. Casing 6. Rear straight pipe section Fig. 2 Filter structure diagram AKTEK Endüstriyel Ekipman ve Enstrümantasyon LTD.ŞTİ. İMES Sanayi Sitesi B-Blok 204.Sok. No:40 Y.Dudullu-Ümraniye/İSTANBUL... - Page 8 Fig. 3 Structure of DN15～DN40 sensor and installation dimension diagram Casing 2．Front guide part 3．Impeller 4．Rear guide part 5．Preamplifier Fig. 4 Structure of TRFM1.0—50～200 sensor and installation dimension diagram AKTEK Endüstriyel Ekipman ve Enstrümantasyon LTD.ŞTİ. İMES Sanayi Sitesi B-Blok 204.Sok. No:40 Y.Dudullu-Ümraniye/İSTANBUL...
-
Page 9: Installation Requirements
AKTEK Endüstriyel Ekipman ve Enstrümantasyon LTD.ŞTİ. İMES Sanayi Sitesi B-Blok 204.Sok. No:40 Y.Dudullu-Ümraniye/İSTANBUL... - Page 10 40×D 5×D Concen Control tric valve expand half-ope 25×D 5×D 50×D 5×D Concen Two 90° tric elbows shrinka ge wide 5×D plane open 25×D 15×D 5×D valve AKTEK Endüstriyel Ekipman ve Enstrümantasyon LTD.ŞTİ. İMES Sanayi Sitesi B-Blok 204.Sok. No:40 Y.Dudullu-Ümraniye/İSTANBUL...
-
Page 11: Operation
Install the sensor if there is reading. In case of no reading, the related sections shall be inspected to eliminate any fault. 3.1 Wiring Warning: Before wiring,cut off the external power.Wiring with electric is strongly prohibit. AKTEK Endüstriyel Ekipman ve Enstrümantasyon LTD.ŞTİ. İMES Sanayi Sitesi B-Blok 204.Sok. No:40 Y.Dudullu-Ümraniye/İSTANBUL... -
Page 12: 1Tb3We Three-Wire System Electric Wiring
(the left side 3 and 4 in small terminal, if without RS485,no terminal here) B-:Connect RS485 “B-” A+:Connect RS485”A+” 3.1.2 TB2WE Three-Wire System Electric Wiring 1.Main power supply and output signal terminals Fout AKTEK Endüstriyel Ekipman ve Enstrümantasyon LTD.ŞTİ. İMES Sanayi Sitesi B-Blok 204.Sok. No:40 Y.Dudullu-Ümraniye/İSTANBUL... -
Page 13: Local Lcd Operation Instruction
(1)Working Menu After power-on,meter will be self-checking first,after then it will enter into LCD(figure 1 )working display status. XXXXX XXXXX.XXXm3 XXXX.XXm3/h Chart 1 TB2/3WE working screen (Figure One) AKTEK Endüstriyel Ekipman ve Enstrümantasyon LTD.ŞTİ. İMES Sanayi Sitesi B-Blok 204.Sok. No:40 Y.Dudullu-Ümraniye/İSTANBUL... - Page 14 For TB2WE is frequency value(left side) and current output(right side) The four line:password entering set state. Press the enter key of “<”(about 1.2seconds) to enter password initial input state. Press the key of “+”(about AKTEK Endüstriyel Ekipman ve Enstrümantasyon LTD.ŞTİ. İMES Sanayi Sitesi B-Blok 204.Sok. No:40 Y.Dudullu-Ümraniye/İSTANBUL...
-
Page 15: User Data Setting
3.2.2 User’s Data Setting 1.Input operation In the input state: Pree “+”key in a long time to exit the input state. Pree “<”key to confirm and save the input. AKTEK Endüstriyel Ekipman ve Enstrümantasyon LTD.ŞTİ. İMES Sanayi Sitesi B-Blok 204.Sok. No:40 Y.Dudullu-Ümraniye/İSTANBUL... - Page 16 Kpa.(when vacuum is 0.0,it will cause the （default setting flow is 0) 101.325） Low flow cut Set percentage The value is between 0~100 of resection AKTEK Endüstriyel Ekipman ve Enstrümantasyon LTD.ŞTİ. İMES Sanayi Sitesi B-Blok 204.Sok. No:40 Y.Dudullu-Ümraniye/İSTANBUL...
-
Page 17: Appendix
2~32. (Default 4s) Reset Reset cumulant If need to Reset cumulant,choose YES and press “E” key. Cumulant Appendix AKTEK Endüstriyel Ekipman ve Enstrümantasyon LTD.ŞTİ. İMES Sanayi Sitesi B-Blok 204.Sok. No:40 Y.Dudullu-Ümraniye/İSTANBUL... - Page 18 Aktek Endüstriyel Ekipman ve Enstrümantasyon Ltd. Şti. İMES Sanayi Sitesi B Blok 204. Sk. No:40 Y. Dudullu Ümraniye İSTANBUL Tel. 0216 540 7300 pbx, Fax. 0216 540 7303 www.aktek.com.tr info@aktek.com.tr...
