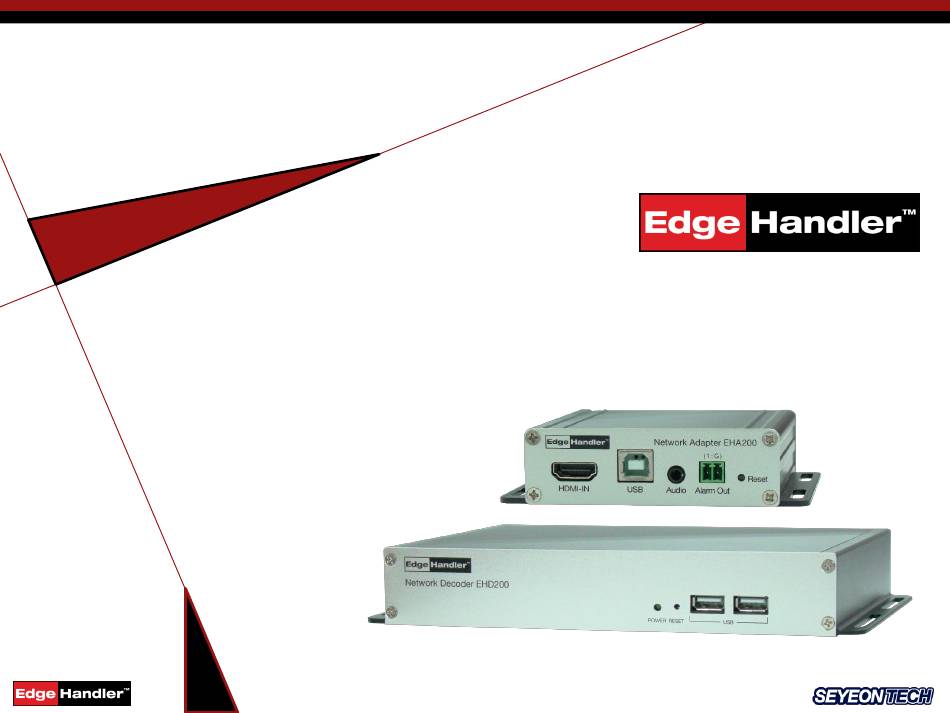

[ M6001-E03 ] - 20180807
QUICK INSTALLATION GUIDE
ⓒ
Copyright
2018 Seyeon Tech Co., Ltd

Advertisement

loading
Need help?

Need help?

Do you have a question about the EdgeHandler EHA200 and is the answer not in the manual?

Questions and answers

Related Manuals for Seyeon EdgeHandler EHA200

Summary of Contents for Seyeon EdgeHandler EHA200

  • Page 1 [ M6001-E03 ] - 20180807 QUICK INSTALLATION GUIDE ⓒ Copyright 2018 Seyeon Tech Co., Ltd...
  • Page 2 Copyright Information Copyright 2016 Seyeon Tech Co., Ltd. All rights reserved. Use of this product and manual is subject to license. Information in this document is subject to change without notice. FlexWATCH® is registered trademark of products of Seyeon Tech Co., Ltd. All other brand and product names mentioned in this document are registered trademarks or trademarks of their respective holders.
  • Page 3 Notification This equipment has been evaluated for its suitability for use in a Commercial environment. If used in a home environment, there is a Risk of radio interference. ⓒ Copyright 2018 Seyeon Tech Co., Ltd...

  • Page 4: Table Of Contents

    Contents EdgeHandler™ 1. Configuration 2. Getting Started with EHA200 Adapter 3. Getting Started with EHD200 Decoder 4. Setting IP Address 5. Registration 6. Using Remote Control ⓒ Copyright 2018 Seyeon Tech Co., Ltd...
  • Page 5 EdgeHandler™ provides the cost effective way to manage other vendor’s DVR and NVR, even VMS(CMS) at the single station. ⓒ Copyright 2018 Seyeon Tech Co., Ltd...

  • Page 6: Edgehandler

    EdgeHandler™ Adapter HDMI EdgeHandler™ Keyboard EHA200 Decoder Mouse Internet EHD200 / IP Network HDMI Keyboard HDMI Mouse EHA200 Keyboard Mouse HDMI EHA200 Keyboard Mouse ⓒ Copyright 2018 Seyeon Tech Co., Ltd...
  • Page 7 Internet, and can be used for various applications such as the HDMI Extender. When used with the EHD200 decoder, the system connected to the EHA200 adapter can be remotely controlled by keyboard and mouse. ⓒ Copyright 2018 Seyeon Tech Co., Ltd...

  • Page 8: Getting Started With Eha200 Adapter

    HDMI-IN port of the EHA200 Adapter. 3. Connect the USB port of the device to the USB port of the EHA200 Adapter. NOTE: Audio and DO (Alarm Out) port will be available soon. ⓒ Copyright 2018 Seyeon Tech Co., Ltd...
  • Page 9 EHA200 Adapter 4. Input power to rear power input terminal. Note: The EHA200 adapter does not have a power switch. 5. Assign an IP address to the device using the IP Installer software. ⓒ Copyright 2018 Seyeon Tech Co., Ltd...
  • Page 10 [ IP Installer Software Download link ] For more information about the IP Installer software, please refer to the manual linked below. [ IP Installer Guide – English link ] 6. Now, the EHA200 adapter is ready for use. ⓒ Copyright 2018 Seyeon Tech Co., Ltd...
  • Page 11 EHA200 adapters and display them on a connected monitor. In addition, a USB keyboard and mouse can be connected to the EHD200 decoder to remotely control the systems connected to the EHA200 adapters as well as self-controlling. ⓒ Copyright 2018 Seyeon Tech Co., Ltd...

  • Page 12: Getting Started With Ehd200 Decoder

    2. Connect the desired display device to the HDMI port. 3. Connect the keyboard and mouse to the USB ports. (The USB port consists of 2 ports on the front and 1 port on the back.) ⓒ Copyright 2018 Seyeon Tech Co., Ltd...
  • Page 13 EHD200 Decoder 4. Power on the rear power input terminal to boot the device. 5. Assign an IP address to the device using the IP Installer software. ⓒ Copyright 2018 Seyeon Tech Co., Ltd...
  • Page 14 [ IP Installer Software Download link ] For more information about the IP Installer software, please refer to the manual linked below. [ IP Installer Guide – English link ] 6. Now, the EHA200 adapter is ready for use. ⓒ Copyright 2018 Seyeon Tech Co., Ltd...

  • Page 15: Registration

    If the EHD200 adapter(s) to be registered is connected to the connected to an external network same network as the EHD200 or the Internet encoder. Skips steps #1~9, Start from #1 on the next page. Starts from #10. ⓒ Copyright 2018 Seyeon Tech Co., Ltd...
  • Page 16 Registration 1. After booting the EHD200 model, the login screen will appear as shown below. Default ID and password are as follows and are case-sensitive. ID: root Password: root ⓒ Copyright 2018 Seyeon Tech Co., Ltd...
  • Page 17 Registration 2. When login is completed, the main screen of the decoder appears as below. ⓒ Copyright 2018 Seyeon Tech Co., Ltd...
  • Page 18 3. Click on the gear icon on the upper left of the screen to access the Admin or Setting menu. 4. Click the Simple Registration icon on the toolbar on the Admin menu screen. ⓒ Copyright 2018 Seyeon Tech Co., Ltd...
  • Page 19 Registration 5. Click the Search IP-Device icon at the bottom center of the window, when the Search IP-Device pop-up window appears. ⓒ Copyright 2018 Seyeon Tech Co., Ltd...
  • Page 20 Registration 6. When the searched adapters(EHA200) or IP devices are listed, ⓒ Copyright 2018 Seyeon Tech Co., Ltd...
  • Page 21 Registration 6. When the searched adapters(EHA200) or IP devices are listed, ⓒ Copyright 2018 Seyeon Tech Co., Ltd...
  • Page 22 IP devices. 8. Move the desired devices to the right list using Register ALL button or Register Selected button. 9. Click the [Register] button on the bottom right to complete the device registration process. ⓒ Copyright 2018 Seyeon Tech Co., Ltd...
  • Page 23 In case of #1 LAN environment, skip to 13. 10. Click on the gear icon on the upper left of the screen to access the Admin or Setting menu. 11. Click IP Device configuration on the menu bar. ⓒ Copyright 2018 Seyeon Tech Co., Ltd...
  • Page 24 Registration 12. After entering the required information, click Register. ⓒ Copyright 2018 Seyeon Tech Co., Ltd...
  • Page 25 13. Click the Apply button to apply the changes. 14. Click Reboot to restart the required services, when the following pop-up message appears. 15. When the service restart is complete, all the steps of IP device registration are completed. ⓒ Copyright 2018 Seyeon Tech Co., Ltd...

  • Page 26: Using Remote Control

    Viewer as shown right. 2. Click the Remote Control icon on the Live View window tool bar of the desired device as shown below to enable remote control of the device. Remote Control Button ⓒ Copyright 2018 Seyeon Tech Co., Ltd...
  • Page 27 Using Remote Control To exit remote control mode choosing of two methods. 1. press the double tab PRINT SCREEN key on the Keyboard. 2. press the double click of WHEEL BUTTON on the Mouse. ⓒ Copyright 2018 Seyeon Tech Co., Ltd...
  • Page 28 EHA200 Specification...
  • Page 29 EHD200 Specification...
  • Page 30 Thank You www.edgehandler.com +82-2-2192-6800 sales@flexwatch.com ⓒ Copyright 2018 Seyeon Tech Co., Ltd...
