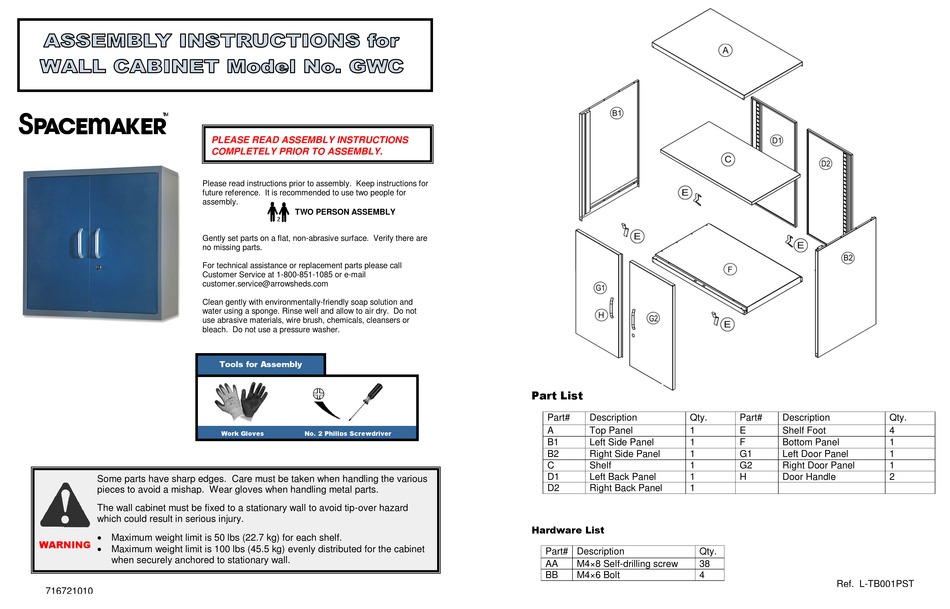

SPACEMAKER GWC Assembly Instructions

PLEASE READ ASSEMBLY INSTRUCTIONS
COMPLETELY PRIOR TO ASSEMBLY.
Please read instructions prior to assembly. Keep instructions for
future reference. It is recommended to use two people for
assembly.
Gently set parts on a flat, non-abrasive surface. Verify there are
no missing parts.
For technical assistance or replacement parts please call
Customer Service at 1-800-851-1085 or e-mail
customer.service@arrowsheds.com
Clean gently with environmentally-friendly soap solution and
water using a sponge. Rinse well and allow to air dry. Do not
use abrasive materials, wire brush, chemicals, cleansers or
bleach. Do not use a pressure washer.
Some parts have sharp edges. Care must be taken when handling the various
pieces to avoid a mishap. Wear gloves when handling metal parts.
The wall cabinet must be fixed to a stationary wall to avoid tip-over hazard
which could result in serious injury.
 Maximum weight limit is 50 lbs (22.7 kg) for each shelf.
WARNING
 Maximum weight limit is 100 lbs (45.5 kg) evenly distributed for the cabinet
when securely anchored to stationary wall.
716721010
TWO PERSON ASSEMBLY
Tools for Assembly
Work Gloves No. 2 Philips Screwdriver
Part List
Part# Description Qty.
A Top Panel 1
B1 Left Side Panel 1
B2 Right Side Panel 1
C Shelf 1
D1 Left Back Panel 1
D2 Right Back Panel 1
Hardware List
Part# Description Qty.
AA M4×8 Self-drilling screw 38
BB M4×6 Bolt 4
Part# Description Qty.
E Shelf Foot 4
F Bottom Panel 1
G1 Left Door Panel 1
G2 Right Door Panel 1
H Door Handle 2
Ref. L-TB001PST
