Summary of Contents for Harman BSS FM-704
- Page 1 FM-704 Wall Paging Station Installation Guide 18-2305-B Printed In USA...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING FOR YOUR PROTECTION READ THE FOLLOWING: KEEP THESE INSTRUCTIONS HEED ALL WARNINGS FOLLOW ALL INSTRUCTIONS THE APPARATUS SHALL NOT BE EXPOSED TO DRIPPING The symbols shown above are internationally OR SPLASHING LIQUID AND NO OBJECT FILLED WITH accepted symbols that warn of potential hazards LIQUID, SUCH AS VASES, SHALL BE PLACED ON THE with electrical products. -
Page 3: Declaration Of Conformity
European Contact: Your local BSS Audio Sales and Service Office or Operation of this unit within signifi- Harman Signal Processing 8760 South Sandy Parkway cant electromagnetic fields should Sandy, Utah be avoided. 84070 USA Ph: (801) 566-8800 • use only shielded interconnect-... -
Page 4: Packing List

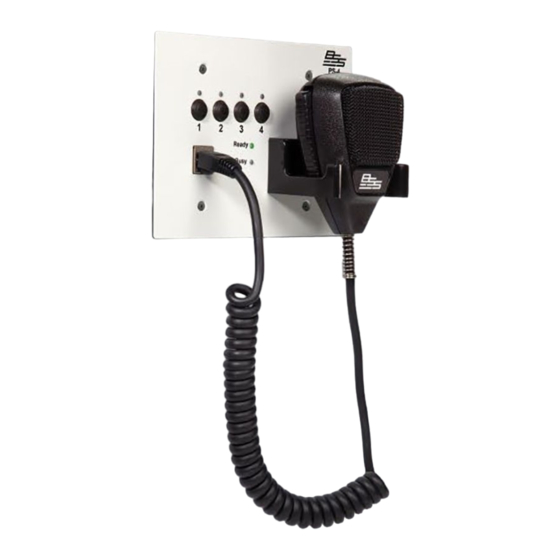

Introduction The FM-704 is a simple 4-button paging station which gives zone selection and ‘Ready’ / ‘Busy’ status indication, and uses CobraNet™ as the audio and control transport. It is designed for use within HARMAN IDX systems. FM-704 Packing List... -
Page 5: Mechanical Installation
Mechanical Installation The FM-704 is designed to fit into a standard 3-gang US junction box, flush mounted to the wall. Screws are provided to fix the unit in place. Dimensions of the unit are shown below. The use of a metal wall box is recommended to ensure that the installation meets necessary EMC standards. -
Page 6: Network Connections
Network Connections Both connectors on the rear of the FM-704 (Primary and Secondary) are CobraNet™, PoE (Power Over Ethernet) enabled interfaces so that all connectivity (power, data, and audio) is provided by a single CAT 5 cable. The redundant Secondary port will become active upon detection of broken link in the Primary port. -
Page 7: Technical Specifications
Technical Specifications Microphone Element: Dynamic Pattern: Omnidirectional Frequency Response: 100 to 7500 Hz Output Level: -58 dB (0 dB = 1mw / 10 microbars) -76 dB (0 dB = 1 volt / microbar) 1.6mV/PA Cable: Four conductor, two shielded, permanently attached, heavy duty, neoprene jacketed coil cord that extends to 1.8m (6 ft.) Push To Talk Switch:... - Page 8 BSS Audio 8760 South Sandy Parkway Sandy, Utah 84070, USA 801-566-8800 www.bssaudio.com...
