Summary of Contents for Crorzar Outdoor 360

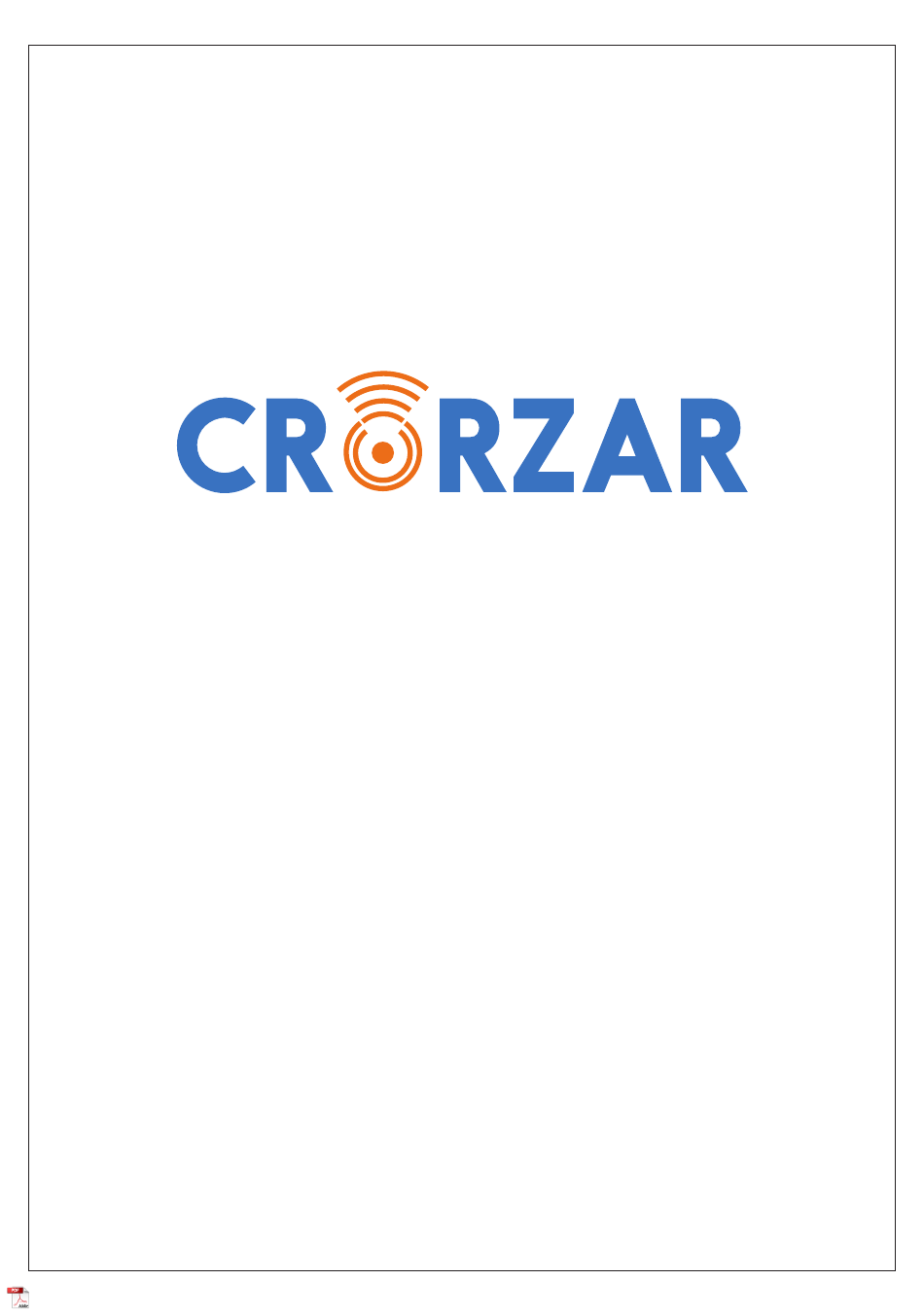

- Page 1 Outdoor 360 Camera Quick User Manual...
-
Page 2: Included In The Box
Included in the Box The following are included in the box with your purchase Main Device: Camera x 1 Accessory 1: Power adapter x 1 Accessory 2: Waterproof cap x1 Screws bag×1... -
Page 3: Product Details
Product Details Please check the interface and buttons of the camera before using. Dual Antenna Lens 4pcs white LED IR LED IR sensor Microphone Speaker remove the screw to open the hatch to install SD Card inside... - Page 4 How to Download APP Method 1: Scan the QR Code to download the App. Method 2: Search for "Crorzar Cameras" in the App Store or "Crorzar Pro" in Google Play Store and download directly. Available on the App Store Scan this QR code to download App for iOS devices...
- Page 5 User registration & login If you have a Facebook ID, you can tap the Facebook icon on the APP interface directly to log in. You can also create a new account and log in: Click "Sign Up" to register a new account.
- Page 6 Configure network connection for camera Method 1: through WIFI (recommended) 10:07 10:07 Smart Devices Add Device More Set Up Device Using Wi-fi H o l d “ R E S E T ” b u t t o n o n t h e b o t t o m / b a c k o f t h e d e v i c e t o b e g i n s e t u p Add Guest Device Add Device...
- Page 7 10:07 Push the QR code button in the upper right hand Wifi Network corner to generate a configuration code on your Push the QR code button in the device. Hold this code a few inches from the camera upper right hand corner to display the wifi configuration QR code lens for a few seconds to initiate camera setup.
- Page 8 Method 2: via LAN port Note: About wired connection, you need to connect the camera to the router using the LAN cable. 1. After logging in successfully, click “+” in the upper right hand corner and then click “ More ”and from the popup select the fourth method “Add device in the same WLAN”...
- Page 9 Method 3: via AP Mode Note: Direct connection is limited to remote viewing within 10 meters when without network 1. Press the “RESET” button 2-5 times shortly on the device, the device will prompt “Entering AP direct connection mode”. 2. Click the "+" at upper right corner of the APP , then click "More"...
- Page 10 Doorbell Doorbell Sleep Sleep Online Online Outdoor 360 Outdoor 360 Online Online Device Management: Outdoor 360 Online Online Share Motion Settings Alerts Settings Delete Long press the device in list to delete Long press the device in list to delete...
- Page 11 View the camera through App User can achieve the real time monitoring through the camera once it is added successfully on App by pressing the “Play” icon like Fig 7, there are also some functions available user can use on the page below. 10:07…...
- Page 12 Setup the LED lights User can tap the icon in Fig 11 to go to the settings of LED lights. Light Mode can be White Light, Normal, or Double Light. White Light: the 4pcs white LED will light up when it’s dark outside. Normal: the IR LED will light up when it’s dark outside but white LED will not light up.
-
Page 13: Camera Settings
Camera Settings User can setup the camera when necessar y, press the “setting” icon in the upper right hand corner on Fig 8. 10:07… Settings Basic Settings Manage Password Alert Settings Manage Storage Advanced Settings Network Settings Device Info... - Page 14 Basic Settings 10:07… Basic Settings Save Enable or disable voice prompts Tone Change device name Device Name Indoor Enable or disable Flip Upside-Down flip of orientation of image on screen Flip Left-Right Change device Device Language English language Change rotation Rotation Speed Normal speed of pan/tilt...
-
Page 15: Manage Password
Manage Password 10:07… Set Password Input current Current Password password Input a new password New Password Input the new Confirm Password password again Press “Save” Save to finish operation... -
Page 16: Alert Settings
Alert Settings 10:07… Motion Settings Enable or disable Motion Activated Alerts motion activated Trigger alarm when there is a motion alerts Set the time of video duration Video Duration(S) 00:30 for recording Change the actions Actions upon alerts Photos and Videos on alerts on Alerts Change the... - Page 17 Alert Settings-Intelligent Vigilance 10:07… Tap Save after a Intelligent Vigilance Save Camera will only setting is done detect human for Smart Detection Enable it to triggering alarm if show traces it's enabled Show Traces of human Enable it to setup detected Perimeter Alert the perimeter that...
-
Page 18: Manage Storage
Manage Storage 10:07… Manage Storage Check entire Storage Capacity capacity of SD card Check the storage Capacity for Video capacity for videos on SD card Check the storage Capacity for Snapshot capacity for snapshots on SD Check the available Available Storage card storage on SD card At Full... - Page 19 Advanced Settings 10:07… Advanced Settings Save Record Settings Turn on/off video Record Switch recording on SD Set the duration card Duration of video clips on 5Mins SD card Enable or disable Record Audio audio recording Other Settings Change video Video Quality Normal quality Change video...
-
Page 20: Network Settings
Network Settings 10:07… Network Settings Select the network connection mode AP Mode for camera Routing Mode Select an available ORBI13 WIFI network for camera MySpectrumWIFI Zans_2.4 ORBI13-Guest ORBI13 ORBI13-Guest Save... - Page 21 1 (855) 700-2482 cs@crorzar.com For questions or help, please contact us. Answers to frequently asked questions, as well as video demonstrations of setting up your camera, can be found at https://www.crorzar.com/pages/cameras...
