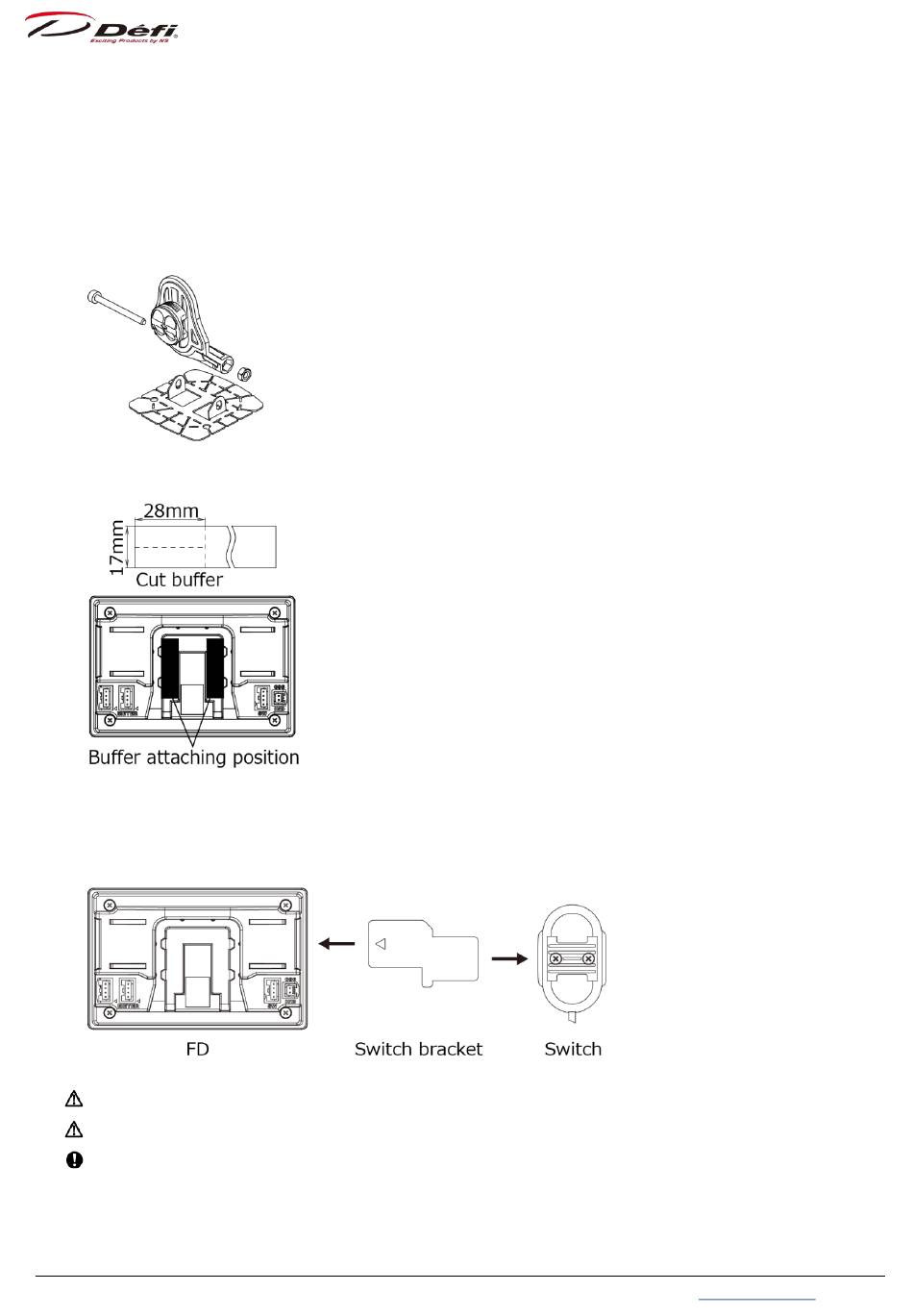

8.4. Installation of FD and wiring of meter wire

1. Check the bolt holder and hexagon head bolt are inserted into the slit of the brace in
advance and the knob is already set.
2. Insert convex part of the mounting bracket over the legs of the brace. Attach the
mounting bracket to the brace with the bolt, nut and washer included in the kit
3. Cut the buffer into 28×8.5mm (2 pieces) and attach them to the backside of the FD.
4. Attach the switch to the FD.
4-1. Insert the switch bracket into the FD and the switch.
The side with the triangular (▷) hole comes to the FD body side.
The switch can be attached to either the left or right side of the FD body.
When inserting the switch stay into the FD body, insert it so that the FD body and the
stay are horizontal.
