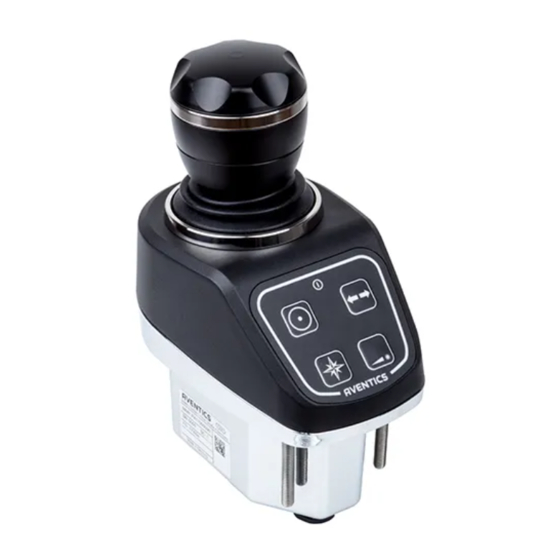

AVENTICS | Joystick Type 531 | R417003072–BDL–001–AA About this documentation About this documentation Validity These assembly instructions apply for the following product: Joystick Type 531, for example R417003030 or R417003096 These assembly instructions are intended for mechanics and service technicians. They contain important information for properly and safely installing, connecting and dismantling the Joystick Type 531.
AVENTICS | Joystick Type 531 | R417003072–BDL–001–AA About this documentation manner. For easy understanding, explanations are provided in the following sections. 1.3.1 Safety messages This documentation includes safety instructions placed before a sequence of actions during which there is a risk of damage to persons or property.
AVENTICS | Joystick Type 531 | R417003072–BDL–001–AA About this documentation 1.3.2 Symbols The following symbols mark notices which are not relevant to safety but contain useful knowledge for the proper operation of the product. Table 3: Meaning of symbols Symbol...
AVENTICS | Joystick Type 531 | R417003072–BDL–001–AA Safety instructions 1.3.4 Abbreviations The following abbreviations are used in these assembly instructions: Table 5: Abbreviations Abbreviation Meaning Controller Area Network Asynchronous serial bus system to link control units. 1.3.5 Measuring units If not stated otherwise, the dimensions in this document are in...
AVENTICS | Joystick Type 531 | R417003072–BDL–001–AA Safety instructions A separate emergency stop switch must be provided on every control station. Comply with the operating conditions and performance limits stated in chapter 11, Technical data. Intended use includes having fully read and understood this manual and especially chapter 2.
You must not modify or convert the Joystick Type 531. Persons who install, operate, dismantle or maintain AVENTICS products must not be under the influence of alcohol, other drugs or medications which affect the responsiveness.
AVENTICS | Joystick Type 531 | R417003072–BDL–001–AA Safety instructions Product- and technology-related safety messages NOTICE Risk of property damage due to unintentional joystick movement Using the joystick as a support can lead to unintentional navigation maneuvers. Do not use the joystick as support.
Risk of injury or property damage due to unsuitable cables Using unsuitable cables can lead to errors or malfunctions in the Marex 3D system. Only use cables supplied by AVENTICS. These provide – EMC shielding – a perfect data transmission –...
AVENTICS | Joystick Type 531 | R417003072–BDL–001–AA Scope of delivery Scope of delivery The standard delivery includes: 1 Joystick Type 531 (e. g. R417003030 or R417003096) For the assembly: Assembly instructions 1 Drilling template 4 M5 nuts (premounted) 4 Washers (premounted) Refer also to the delivery note and the project documentation for information on the items supplied.
AVENTICS | Joystick Type 531 | R417003072–BDL–001–AA About this product Product identification A product type plate can be found at the bottom of every Joystick Type 531 and on its packaging. The type plate contains the following information: Fig. 1:...
AVENTICS | Joystick Type 531 | R417003072–BDL–001–AA Transport and storage Transport and storage Product transport NOTICE Damage due to improper transport Improper transport can cause substantial material damage. Be careful when unloading the packages on delivery and in case of in-plant transport. Observe the symbols and instructions on the package.
Improper installation can cause damage to property. The Joystick Type 531 may only be installed by AVENTICS or qualified personnel as specified in chapter 2.4. Install or uninstall the Joystick Type 531 only if the component and the system are powered off.
AVENTICS | Joystick Type 531 | R417003072–BDL–001–AA Assembly Installation conditions The mounting bolts are suitable for a panel thickness between 2 to 30 mm. The mounting depth for the electric plugs and connections below the console or panel is 140 mm approximately.
AVENTICS | Joystick Type 531 | R417003072–BDL–001–AA Assembly Mounting 1. Prepare a panel cutout by using the drilling template which is included in the delivery (fig. 2). 2. For the mounting bolts, drill 4 holes with a diameter of 5.5mm into the panel.
AVENTICS | Joystick Type 531 | R417003072–BDL–001–AA Assembly Connecting the Joystick Type 531 NOTICE Risk of property damage due to missing terminating resistors The CANbus communication does not work if terminating resistors are not applied. This may result in unexpected ship behaviour.
Page 19
AVENTICS | Joystick Type 531 | R417003072–BDL–001–AA Assembly 3. To connect another joystick, apply another CANbus cable to the connector X12 at the joystick. Route the cable to the next joystick and connect it to X11. Proceed accordingly to connect more joysticks if applicable.
AVENTICS | Joystick Type 531 | R417003072–BDL–001–AA Maintenance and repair Maintenance and repair Cleaning NOTICE Product damage due to inappropriate cleaning Cleaning agents containing solvents may damage the product's surface and cause premature aging. Do only use solvent-free, non-abrasive cleaning agents Never use pressure washers or steam cleaners to clean the Joystick Type 531.
AVENTICS | Joystick Type 531 | R417003072–BDL–001–AA Disassembly and replacement Disassembly and replacement CAUTION Risk of injury and property damage when servicing components under power If you dismantle or replace the Joystick Type 531 while Marex 3D is in operation, the ability to steer may be lost.
AVENTICS | Joystick Type 531 | R417003072–BDL–001–AA Technical data 11 Technical data Table 6: Technical data General: Dimensions width x height x depth 83 x 175 x 124 mm Weight 0.7 kg Power supply 38 V DC (internal system power supply via...
