Wireless DI Transducer User's Manual

Product Name: Wireless DI Transducer

Model No: WDT-110

Input Power: 3V DC

Features Description:

1. To wireless transmission (opens / closes) the Dry contact signal to the repeater can be provided

with a wide range of Alarm Dry contact connected to the Sensor Products.

2. Use CR2032 type Li-ion batteries, battery power is insufficient to inform the host will

automatically operate a very low power, the battery can be used for more than one year and a

half.

3. Due to spill-resistant design for the case, so to replace batteries, the need to remove screws and

opened case.

4. Easy link, Linked with the post-instrumentation wiring ready, when install at the first time to

press the set button on the side of product binding with repeater.

5. WDT-110(Wireless DI Transducer) has a magnet base, can be adsorbed on the iron outside the

box.

Foundation stop plate

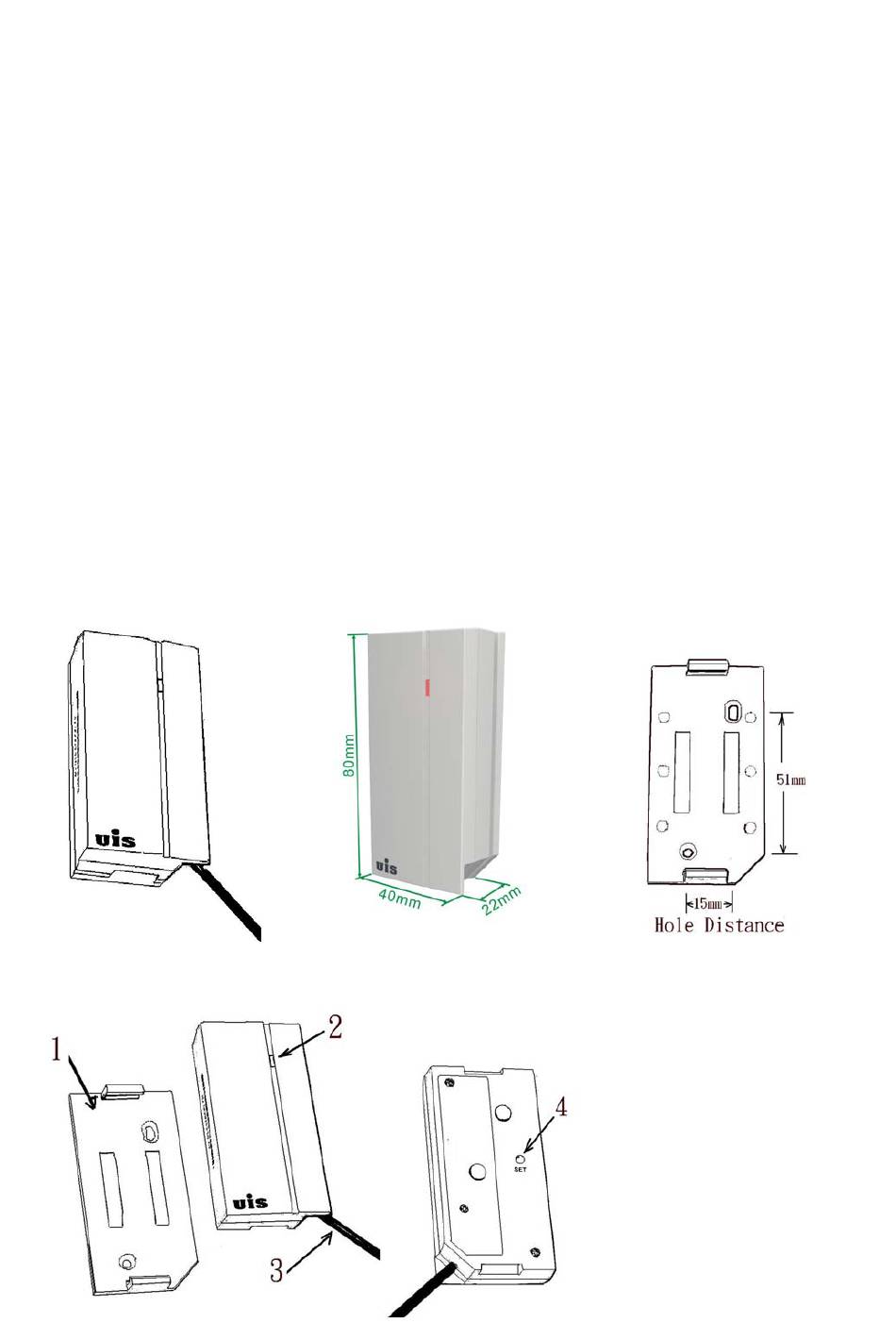

Outline Dimensions:

Feature Locator:

can be fixed on the pillar approach.

Foundation stop plate

2. State of LED window

3. Outlet wires

4. (SET) Setting button

Table of Contents

Do you have a question about the WDT-110 and is the answer not in the manual?

Page 1 4. Easy link, Linked with the post-instrumentation wiring ready, when install at the first time to press the set button on the side of product binding with repeater. 5. WDT-110(Wireless DI Transducer) has a magnet base, can be adsorbed on the iron outside the box.
Page 2 Installation Hints: 1. Need to first WDT-110(Wireless DI Transducer) of Dry contact input signal wire, with the industrial or household use of the various warnings dry contact sensor connected before use. 2. WDT-110(Wireless DI Transducer) leads two features excellent line and described as follows: a.
Page 3 Problem: When link with WR-110 (Wireless repeater), there is no display of LED indicator light for WDT-110 (Wireless DI Transducer) to flash two or three times. Solution : a. Need to confirm the detection of the external dry contact output of the circuit wiring is correct.
Page 4 FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
