Wireless AI Transducer User's Manual
Product Name: Wireless AI Transducer
Model No: WAT-110
Input Power: 4~ 20mA

Features Description :

1. WAT-110(Wireless AI Transducer) is connected to the industrial control instrument.
2. Wireless transmission of 4 ~ 20mA analog signal.
3. Wireless analog signal converter WAT-110 and the wiring is 4 ~ 20mA signal loop serial.
4. WAT-110(Wireless AI Transducer) is By 4 ~ 20mA current signal conversion work out 3V DC
power supply.
5. Easy to install and configure, Linked with the instrumentation wiring. In the initial use of the
back simply click on Settings button connected with the repeater.
6. WAT-110(Wireless AI Transducer) has a magnet base, can be adsorbed on the iron outside the
box.
Foundation stop plate

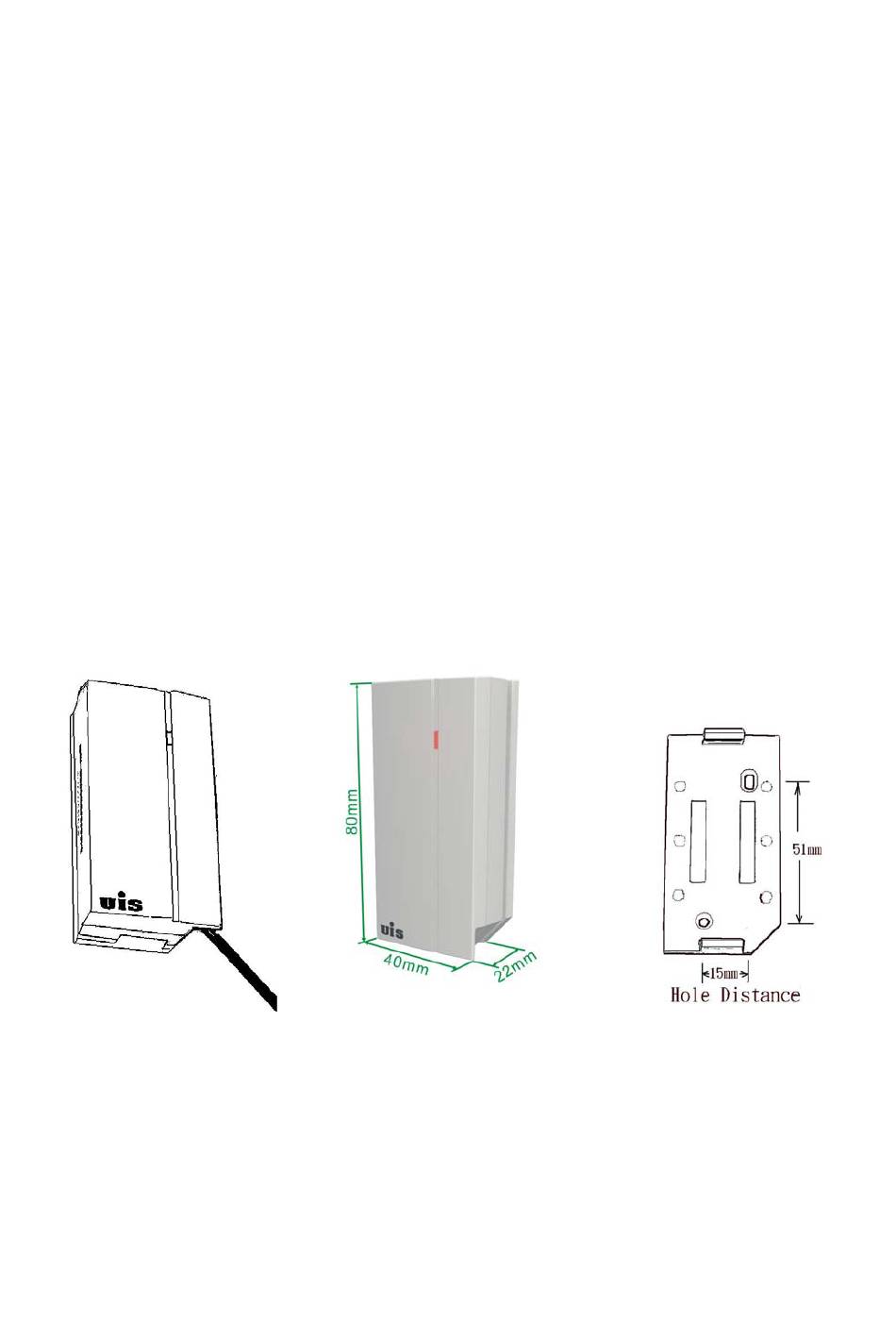

Outline Dimensions :
Feature Locator :
:
can be fixed on the pillar approach.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WAT-110 and is the answer not in the manual?

Questions and answers

Summary of Contents for UIS WAT-110

  • Page 1 2. Wireless transmission of 4 ~ 20mA analog signal. 3. Wireless analog signal converter WAT-110 and the wiring is 4 ~ 20mA signal loop serial. 4. WAT-110(Wireless AI Transducer) is By 4 ~ 20mA current signal conversion work out 3V DC power supply.
  • Page 2 3. The WAT-110 (Wireless AI Transducer) properly then after the loop, after the first power, such as 3 to 5 minutes to allow (WAT-110) within the first Gold capacitor charging, and then press (WAT-110) of the SET button at the bottom of, Then press the setting button of WR-110 (Wireless repeater) bottom.
  • Page 3 When link with WR-110 (Wireless repeater), there is no display of LED indicator light for WAT-110 (Wireless AI Transducer) to flash two or three times. Solution : a. .Need to confirm with the industrial control instrumentation of the 4 ~ 20mA signal loop lines connected to a good wiring is correct and there is 4 ~ 20mA signals, the supply of electricity.
  • Page 4 Standby: 1 uA Max Input Signal (Current ) 4-20mA *1 Display Type Red LED indicator Operation Interface Push button switch for setting Environmental Requirement Operating temperature -20°C to 60°C Storage temperature -20°C to 70°C Humidity 90% RH Max. Non-Condensing Mechanical Specification Dimension (WxHxD, mm) 40x80x22 Weight...
  • Page 5 FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
