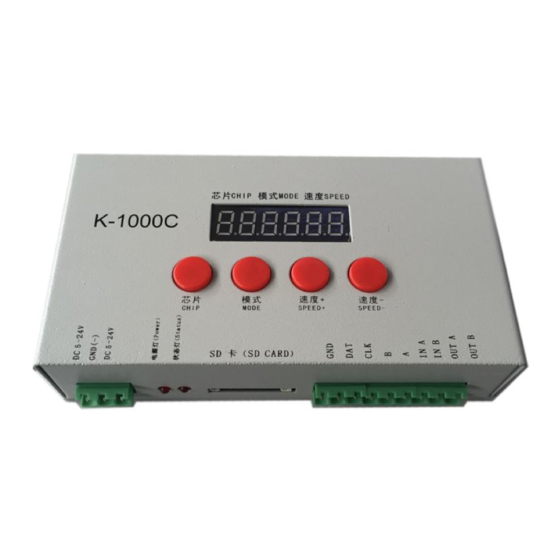

K-1000C Operation manual
一、K-1000C system features
1、32 to 65536 grade gray control, software Gamma correction processing.
2、Supports various point, line and area light sources, supports various rules, and special-shaped processing.
3、The single port output of the controller can reach a maximum of 512/2048 pixels (the maximum 512 pixels of
the DMX luminaire is exemplified by three channels).
4 、 The playback content is stored in the SD card, which can store up to 32 effect files. The SD card capacity
supports 128MB-32GB.
5、The controller can be used in a single unit or in multiple cascades. The cascade uses photoelectric isolation:
anti-interference and better stability. The cascade distance between the two units can reach 150 meters, and
0.5 square meters of pure copper power cord is needed.
6、The controller with the loaded chip can lock the loaded IC in the software or not. By adjusting the controller's
chip button to select the loaded IC, this scheme is more flexible and convenient.
7、 The IC controller for DMX luminaires comes with a write address function; in addition, with our 2016 LedEdit-K
V3.26 or higher software, one-click address function can be set.
8、Supports on-board luminaires with 4 channel (RGBW) pixels or split into single channel point pixels.
9、Enhanced TTL and 485 differential (DMX) signal output.
10、The controller comes with 22 test effects and comes with DMX512 test function.
Remarks: 1. The controller carries 512 pixels of light, the speed can reach 30 frames/second, the speed of 1024
pixels can reach 25 frames/second, and the speed of 2048 pixels is about 15 frames/second (the
above parameters are based on the 1903 protocol IC DATE, there will be differences between
different IC).
2. The international standard DMX512 (1990 protocol) has a maximum load of 512 pixels. When the
load is 170 pixels of the international standard, the speed can reach 30 frames/second, the speed of
340 points is about 20 frames/second, and the speed of 512 pixels is about 12 frames/second.
3. For the function of Beidou wireless synchronization, please contact sales staff or technical support
for details.
Version
V1.3
Advertisement
Related Manuals for SuperLightingLED K-1000C
Summary of Contents for SuperLightingLED K-1000C

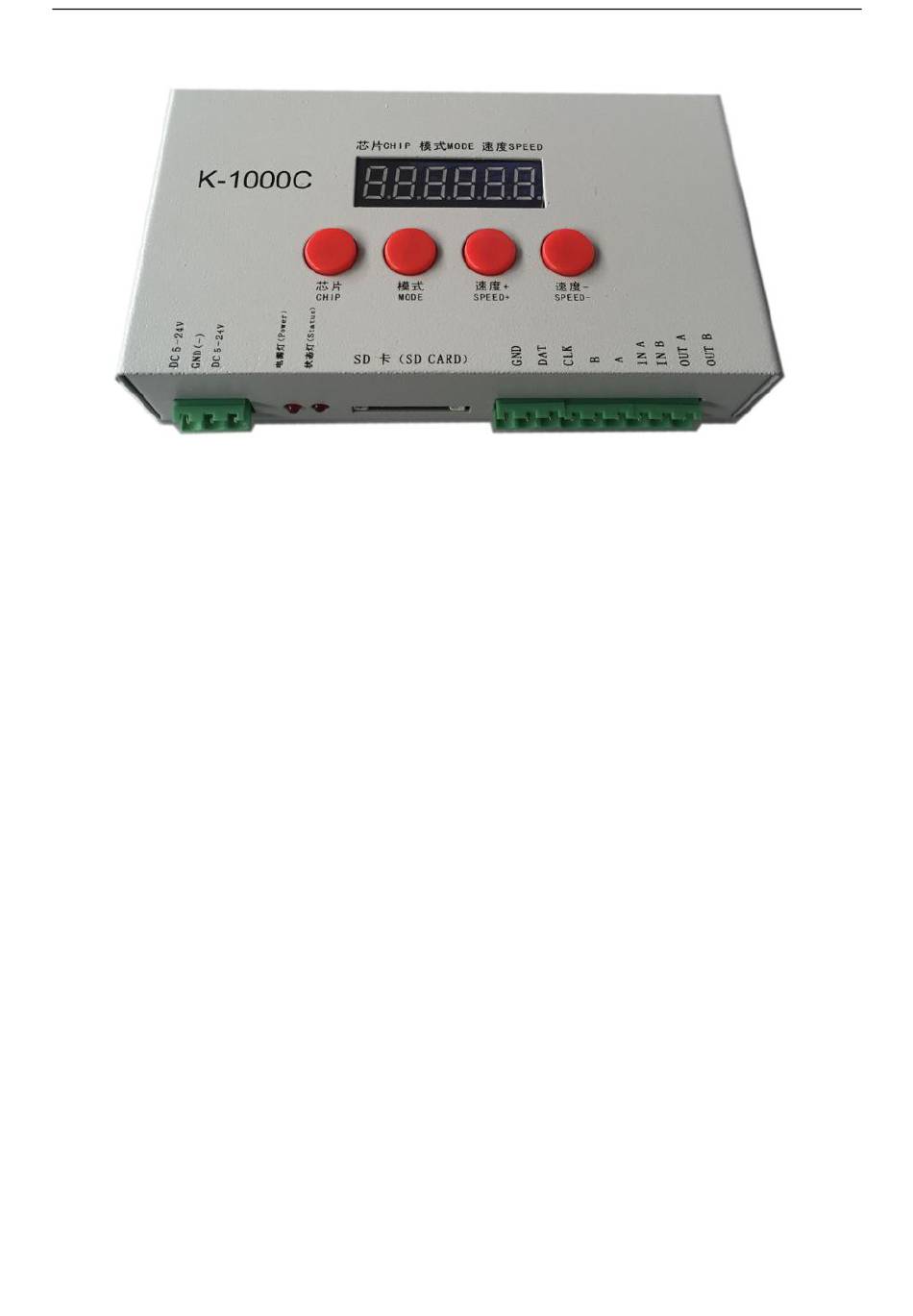

- Page 1 K-1000C Operation manual 一、K-1000C system features 1、32 to 65536 grade gray control, software Gamma correction processing. 2、Supports various point, line and area light sources, supports various rules, and special-shaped processing. 3、The single port output of the controller can reach a maximum of 512/2048 pixels (the maximum 512 pixels of the DMX luminaire is exemplified by three channels).
- Page 2 二、Support chips: (PC software selects K-1000-RGB): 00：UCS19**,UCS29**；TM18**,SM167**,WS28**,GS82**；SK6812 (Support max.2048 pixels） 01：SM16716,16726(Support max.2048 pixels) 02：P9813 (Support max.2048 pixels) 03：LPD6803 (Support max.2048 pixels) 04：LX1003,1203(Support max.2048 pixels) 05：WS2801(Support max.2048 pixels) 06：LPD1886(Support max.2048 pixels) 07：TM1913(Support max.2048 pixels) 08：TM1914(Support max.2048 pixels) 09：P9883,P9823(Support max.2048 pixels) 10：DMX（250kbps max. spoort 512 pixels, suggest to support ≤320 pixels） 11：...
-
Page 3: Port Definition
四、Silk screen definition: 1. Button meanings: Button Definition CHIP Switch the chips Press the chip button and then press the mode button to enter the code writing mode; after completing the code writing, press the chip MODE Switch the files button and then press the mode button to exit the writing mode. - Page 4 Display vocabulary (six digit screen) Display Definition F_F_F Card reading error A_A_A DMX512 write address C_C_C Effect loop playback 2_2_2 Cascaded control Enter DMX lamp address test / parameter 0_0_0 write Write code interface Chip display: DMX512IC code 61-80 Mode display: No definition Speed bit: Number of channels 0-99 Play interface Chip display: onboard IC code 0-23...
- Page 5 六、DMX512 luminaire wiring method: DMX512 differential signal line wiring diagram: A/B/ADD/GND (A/B/GND) Version V1.3...
- Page 6 DMX512 single line signal wiring diagram: A(DAT)/ADD/GND Note: For some DMX512 luminaire installations, the controller output terminal does not need to be connected to the ADDR write address line of the luminaire. It only needs to be connected to A/B/GND, and its data bus is automatically addressed (for details can refer to the DMX512 luminaire loaded IC usage specification).
- Page 7 Connect the line as shown above to start the controller. First press and hold "Chip CHIP" and then press the "Mode MODE" button to switch to the address mode, as shown below: "61_*_3", 2. Press the “Chip CHIP” button to select the DMX512 onboard IC model; “Speed+” and “Speed-” select the fixture interval channel (0-99).
- Page 8 . After writing the address code, the controller enters the DMX512 lamp channel test mode: the digital screen displays A 0000; . Press the “MODE MODE” button to enter the automatic test mode, the display is “A ****” (* is the number of channels), and the fixture will automatically start the white light from the first pixel.
- Page 9 Press and hold "Chip CHIP" first, then press the "Mode MODE" button to switch to playback mode and switch the chip to Chip: 10, it is the DMX512 standard protocol 250Kbps playback mode. At this time, press the mode button and the speed button to switch the playback mode and adjust the speed respectively, as shown below: 八、DMX512 light one-button address writting 1.
- Page 10 4. Complete the one-button address writing setting Confirm the settings are correct, click the confirm button to complete the program output. 5. Controller one-click address writing operation ①SD card inserted into the controller; ② Power on the controller; ③ Long press“MODE” button for 5 seconds, the controller display “A-A-A” means it is writing address now;...
-
Page 11: Physical Parameters
is the manual test mode, and is switched by the " CHIP" key; NOTE 2：The second digital tube represents the pixel point channel of the luminaire, 1 is a monochrome single-channel luminaire, 2 is a two-color two-channel luminaire, 3 is an RGB three-color luminaire, and 4 is an RGBW four-color luminaire, which is switched by a “mode MODE”... - Page 12 Size" or click the "Restore Device Defaults" button. ③Start formatting. As shown below: 3、The SD card cannot be hot swapped, that is, the power of the controller must be disconnected each time the SD card is inserted or removed. Common problem handling: Question 1: After power-on, the controller screen is displayed as F F F and there is no effect output.
- Page 13 control is a signal connecting the first luminaire. Question 4: After the controller is connected to the luminaire, the strobe flashes and the effect changes, and the controller indicator shows normal. A: ①The ground wire between the controller and the luminaire is not connected. ②The effect done in the SD card is incorrect.
