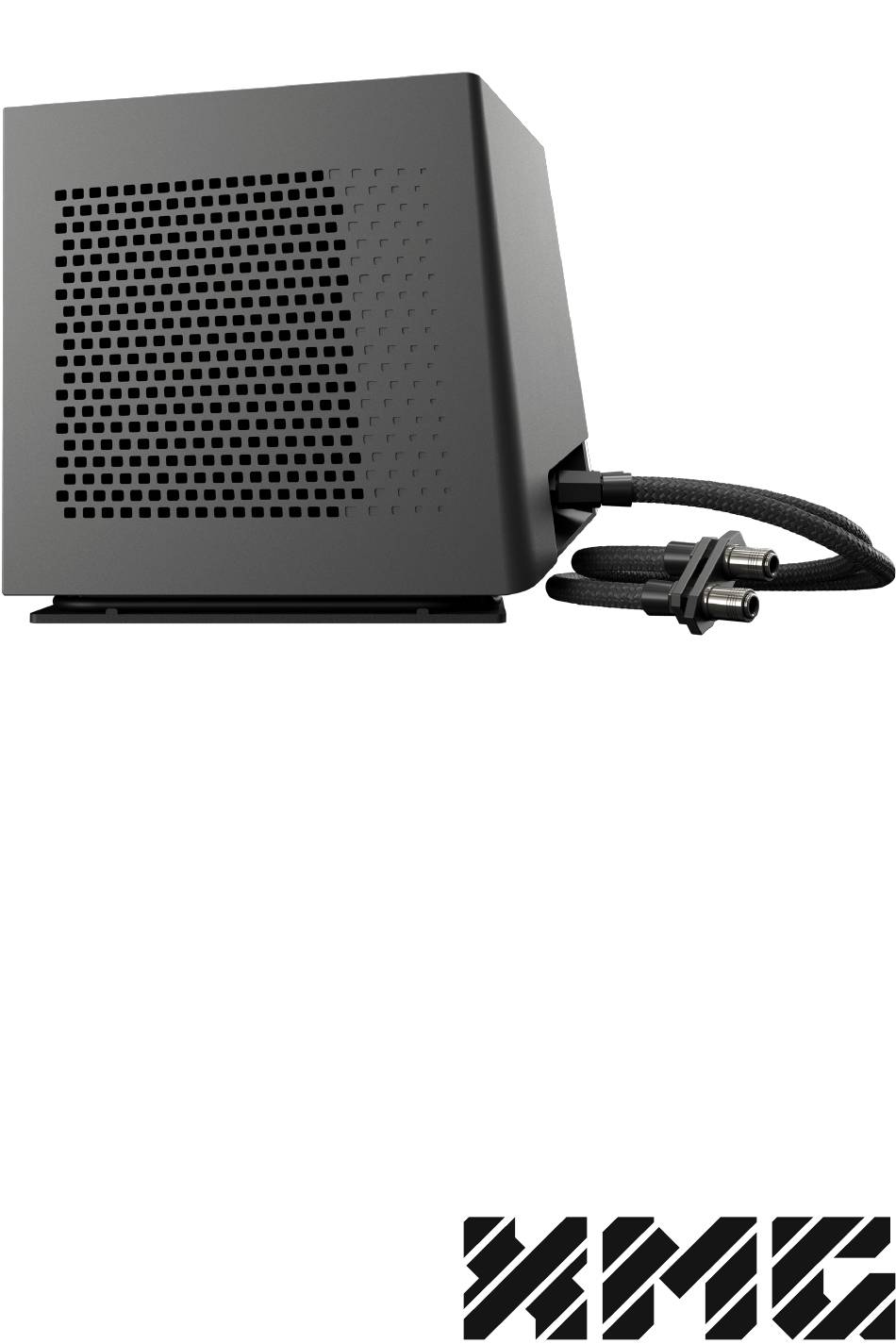

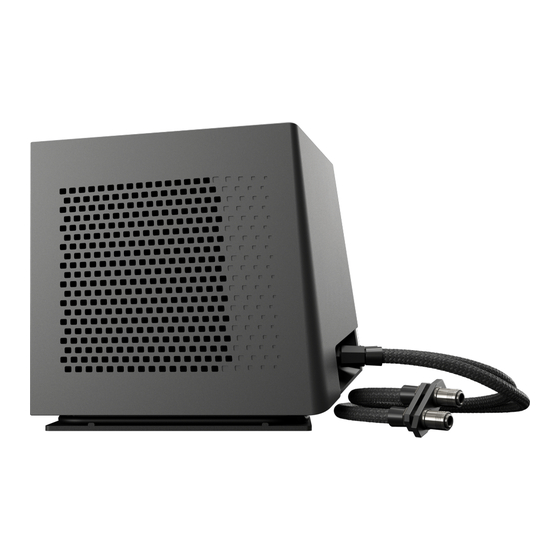

- Page 1 XMG OASIS The first portable laptop watercooling User Manual...
-
Page 2: Contents Of Delivery
XMG NEO series. A pump pushes coolant liquid through a loop into the host laptop. Liquid carries thermal energy from the laptop back to XMG OASIS where it gets dispersed by a 120mm fan and radiator combination. The whole system generates significantly less fan noise than usual laptop air cooling systems with similar power levels. -
Page 3: Technical Specifications
3. Technical specifications Product ID XOAM1 Compatibility XMG NEO 15 (E22) automatic pump and fan speed (adjustable in 3 levels) Operating mode automatic standby (when laptop in standby, hibernate or shutdown) 160 ml in reservoir Volume 230 ml overall (incl. laptop loop) each 120 mm standard size... -
Page 4: Product Overview
4. Product overview Front side view Left side view Back side view Right side view The power cord can be wrapped and stored around the base. (1) drainpipe sockets (4) vents (2) RGB LED (5) power connector (3) DC port... - Page 5 Bottom side view Top side view (6) refill port cover (7) power LED indicator (8) power button Power LED indicator color codes blue, blinking Bluetooth searching blue, steady Bluetooth connected purple, blinking Liquid Input Mode orange, blinking System Error...
- Page 6 4. Put the device upright on the desk, with the power button at the top. 5. Gently unscrew the hexagon water stoppers on the XMG OASIS main unit. Do not throw them away, you will need them again later. Keep them safe in the original box of XMG OASIS.
- Page 7 4. Connect the laptop’s power adapter to the DC port on the rear of the XMG OASIS main unit. Do not connect the adapter to wall power yet. 5. Connect the DC Cable of XMG OASIS to the laptop’s DC port. Now, connect the power adapter to the wall power outlet.
- Page 8 7. Choosing the right kind of coolant liquid We recommend using either industry-grade distilled water or a liquid solution that is specifically made for PC liquid cooling. Colored coolant liquids (with artificial color additives) are NOT recommended. A list of recommended products can be found on our website (see page 19 for links).
- Page 9 3. Verify that the water tubes of XMG OASIS are firmly connected to your host laptop before proceeding. 4. Press and hold the power button of XMG OASIS for 5 seconds. The power button will blink in purple color, indicating that it has entered “Liquid Input Mode”.
- Page 10 XMG OASIS will automatically go to standby and the pump and fan will stop ℹ...
- Page 11 Squeeze the quick release connector and remove it from the laptop horizontally. Leak warning: make sure that XMG OASIS is turned off before you remove ⚠ the water tubes. If you disconnect during operation, the water pressure caused by the operating pump will cause additional leakage.
- Page 12 12. Drain liquid from laptop It is strongly recommended to drain liquid from the laptop every time you plan to take the laptop away from its current place of operation. Please follow these instructions: 1. Shutdown the laptop or set to hibernate before disconnecting the tubes from your laptop.
- Page 13 Do not use the drain adapter as a link between the laptop and the XMG ⚠ OASIS. Remove it as soon as it has fulfilled its primary function, which is to drain fluid from either the laptop or the tubes. Do not install any other accessories between the tubes, the quick-release connector and your laptop.
- Page 14 Defects resulting from accidents, negligence, or otherwise inappropriate usage are NOT covered under warranty. Practice utmost caution every single time when disconnecting XMG OASIS ⚠ from your laptop. Drain all liquid from the laptop after use and keep all...
- Page 15 2. Clear the desk. Remove your laptop and other electronics or sensitive items. Alternatively, perform this task in the bathroom. 3. Remove the refill port cover on top of the XMG OASIS main unit to help maintaining air pressure during the operation.
- Page 16 LIABILITY for consequential damages to any items that are placed near or transported with XMG OASIS or its corresponding laptop. If there is a chance that the laptop or XMG OASIS may be exposed to ⚠ environmental temperatures below 5 °C (41 °F) during travel and transportation, all liquid must be drained regardless of convenience.
-
Page 17: Troubleshooting
connector. Let liquid flow out for 2 seconds, then pinch the water tubes and lean XMG OASIS left and backwards to allow bubbles to move out of their positions inside the unit. Hold the device in these slanted orientations for 3 seconds each. Make sure you do not cause leaking from the refill port during this operation. - Page 18 18. Warning about children and pets When operating XMG OASIS, there is a risk that unauthorized third parties, such as children or pets, may tamper with the device and cause mechanical damage or liquid damage. If unauthorized third parties in your household might be able to gain access to the device, please observe the following instructions.
- Page 19 See page 15 for further instructions. Leakage has a high risk to cause permanent damage to XMG OASIS and ⚠ to surrounding electronics and sensitive objects. Liquid damage that occurs during shipping will invalidate your warranty.
- Page 20 20. Disassembly and spare parts Disassembly ⚠ In the event of a defect or for any other purpose, we do NOT recommend disassembling the device! • The internal structures of the device can be quite delicate. • Any mistakes during disassembly and reassembly may cause ma- terial failure, leading to future leakage.
- Page 21 5-10 seconds to force it to switch off. 4. The laptop is switched off when all the LEDs have gone out. 5. Switch off the OASIS and disconnect the laptop and OASIS from the power supply. 6. Take an absorbent tissue (e.g. paper tissue) and dry the surfaces of the laptop without moving it.
-
Page 22: Device Maintenance
OASIS is not operating), the connector may accumulate heat in the metal part because of the temperature generated by the system. • Turn XMG OASIS off, before you unplug the tubes from your laptop. • Do NOT use the drainage adapter as a bridge between laptop and the tubes of XMG OASIS. -
Page 23: Regulatory Information
24. Regulatory information CE compliance This device is classed as a technical information equipment (ITE) in class B and is intended for use in living room and office. The CE-mark approves the conformity by the EU-guidelines: • EMC Directive 2014/30/EU, •... - Page 24 Do you have any more questions? Scan this code to find your answer in our FAQ. Contact: Schenker Technologies GmbH Walter-Köhn-Str. 2C 04356 Leipzig GERMANY E-Mail: support@xmg.gg...
