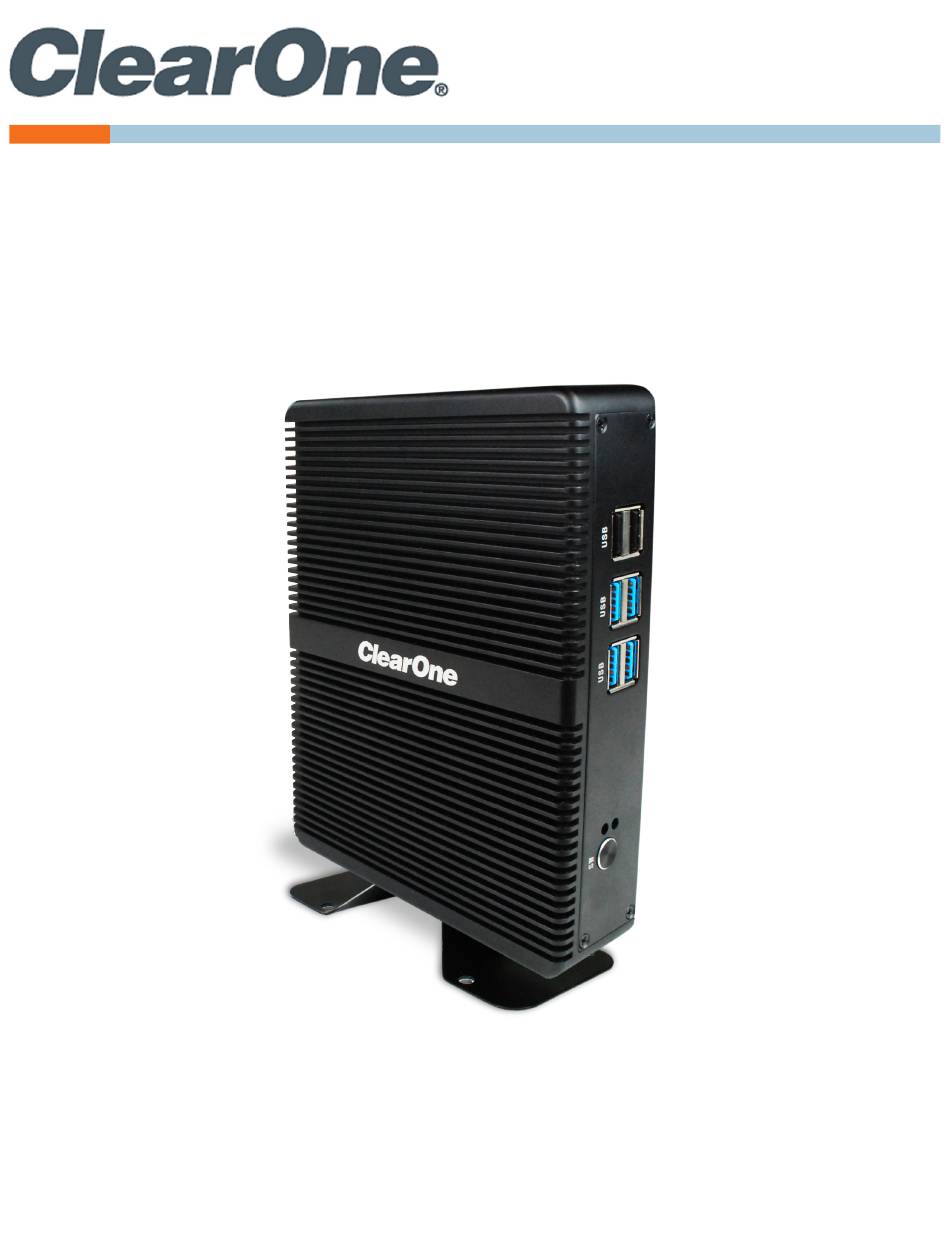

- Page 1 Installation Guide CONVERGENCE InSite Server ® DOC-0568-001v1.0 July 2022...
- Page 2 Tel: +1.801.975.7200 Tel: +1.801.974.3760 sales@clearone.com audiotechsupport@clearone.com Notices © 2022 ClearOne, Inc. All rights reserved. Information in this document is subject to change without notice. Document: DOC-0568-001v1.0 July 2022 Important Safety Instructions See the safety instructions at the end of this document.
-
Page 3: Table Of Contents
CONVERGENCE InSite Server Installation Guide Contents About CONVERGENCE InSite Server ............1 Packing List ....................1 Step 1. Add a Local Agent Server Account in Cloud or Enterprise ..2 Step 2. Set Up the InSite Server ............... 4 Step 3. Register InSite with Cloud or Enterprise ........6... -
Page 4: About Convergence Insite Server
Additional details are available in the CONVERGENCE InSite Server datasheet. Packing List ClearOne is not responsible for product damage incurred during shipment. Inspect your shipment carefully for obvious signs of damage. If the shipment appears damaged, retain original boxes and packing material for inspection by the carrier, and contact them immediately. -
Page 5: Step 1. Add A Local Agent Server Account In Cloud Or Enterprise
You can perform this step before going to an organization’s site or when you are at the site. If you have an account in CONVERGENCE Cloud AV Manager (https://cx.clearone.com), sign into the organization to which the CONVERGENCE InSite Server will belong. If you are using CONVERGENCE Enterprise AV Manager, sign into your instance. - Page 6 CONVERGENCE InSite Server Installation Guide Review the Servers screen to verify that CONVERGENCE lists the server you added. Back to Table of Contents DOC-0568-001v1.0 July 2022...
-
Page 7: Step 2. Set Up The Insite Server
Installation Guide Step 2. Set Up the InSite Server At the site, find where to place the CONVERGENCE InSite Server so you can plug it into power and the AV network. This network should have access to the following: All ClearOne Pro Audio devices on one or more subnets. - Page 8 CONVERGENCE InSite Server Installation Guide c. Press the SW button on the server front panel to turn it on. The power LED next to the switch will illuminate. On/Off Switch Power LED USB 3.0 may use for additional AV networks with USB/Ethernet adapters (not included) USB 3.0 may use for additional AV networks with USB/Ethernet adapters (not included)
-
Page 9: Step 3. Register Insite With Cloud Or Enterprise
CONVERGENCE InSite Server Installation Guide Step 3. Register InSite with Cloud or Enterprise Registration is simplified to enter one name and password to cover each of the following for the InSite Server: Initial Owner Account • Central Hub Connection with Cloud or Enterprise AV Manager •... - Page 10 CONVERGENCE InSite Server Installation Guide In the CONVERGENCE central hub URL field, enter the following: If using CONVERGENCE Cloud AV Manager, enter “https//cx.clearone.com” • If using CONVERGENCE Enterprise AV Manager, enter the URL of the Enterprise instance. • Enter the Local Agent Server Account credentials you set up earlier, into the Central Hub Authentication box Name and password fields.
- Page 11 CONVERGENCE InSite Server Installation Guide A dialog should appear stating Registration Completed. If you entered everything correctly, you would see the following dialog. You can then go to Cloud or Enterprise AV Manager in your browser to set up other subnets, see what devices are discovered, etc.
- Page 12 CONVERGENCE InSite Server Installation Guide Related Documents The following documents are available in ClearOne’s Resource Library: • Datasheet • Datasheets of related products Important Safety Instructions 1. Read, follow, and keep these instructions. 2. Heed all warnings. 3. Do not use this apparatus near water.
