Summary of Contents for Gyrocopters PLAID
- Page 1 GYROCOPTERS P AID ELECTRIC SCOOTER INSTRUCTION MANUAL...
-
Page 3: Table Of Contents
CONTENT PAGES GENERAL SAFETY DIRECTIVE BATTERY SAFETY INSTRUCTIONS CHARGER SAFETY INSTRUCTIONS KNOW YOUR GYROCOPTERS PLAID ELECTRIC SCOOTER SPECIFICATIONS USER GUIDE DISPLAY MODULE GYROCOPTERS PLAID ELECTRIC SCOOTER OPERATION GYROCOPTERS PLAID ELECTRIC SCOOTER OPERATION FOLDING THE SCOOTER... -
Page 4: General Safety Directive
Ba�eries should not be exposed to overheated environments such as sun, next to fire or similar high temperatures. If the Gyrocopters Plaid Electric Scooter is not used for a long �me, the ba�ery should be fully charged every 90 days. Otherwise, the ba�ery will discharge itself and be damaged. -
Page 5: Charger Safety Instructions
Protect the charger and other electrical components from dampness. Do not soak them in liquid when cleaning or in use. Maintenance must be carried out by authorized professionals. Always contact customercare@gyrocopters.com if you need any assistance. Incorrect assembly may cause a fire or electrical shock. -

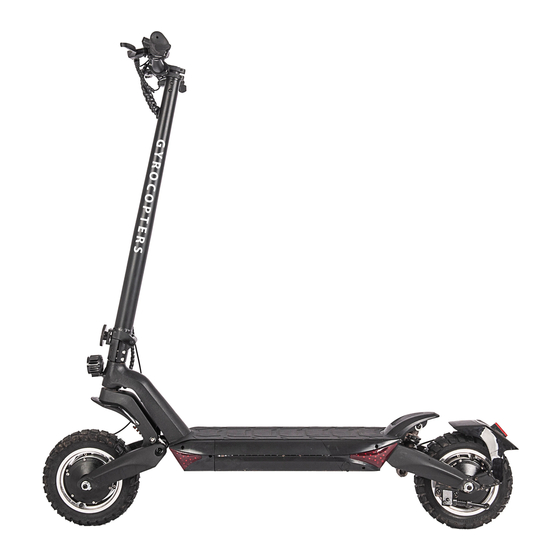

Page 6: Know Your Gyrocopters Plaid Electric Scooter
KNOW YOUR GYROCOPTERS PLAID ELECTRIC SCOOTER Note : Gyrocopter Plaid is not a front-wheel motor model... -
Page 7: Specifications
SPECIFICATIONS Content Parameters Vehicle Parameters Expand: Long, Width & Height 1247x675x556 Net Weight 23.6kg Top Speed 45Km/H Climbing Ability 30 Degrees Terrain Ci�es & Mountains Opera�ng Temperature -5-40 Degrees Charging Time 4-5 Hours Storage Temperature -20-40 Degrees Ba�ery Parameters Capacity 10Ah Voltage Motor Dimensions... - Page 8 SPECIFICATIONS Content Parameters Motor parameters Maximum Torque Voltage Rated Power 800W Maximum Power 1000W Motor Type Rear Brushless Brake Brake Braking Mode Front And Rear Mechanical Disc Brake Brake Stop Distance <4.57 M Tire Outer Tier Size 10x2.75x6.5 Off-Road Tire Outer Tire Pa�ern Off-Road Pa�ern Charger...
-
Page 9: User Guide
USER GUIDE This sec�on provides informa�on about how to use the product correctly. Following these instruc�ons is necessary for the safety of the user and the service life of the product. Insert the handlebars into the tube and lock it with 4 Close the folding plug, buckle the lock, and twist the screws. - Page 10 USER GUIDE On/Off Switch: Press 2 seconds to turn the scooter On or Off. Lights Switch: Click the switch once to turn on all lights and click twice to turn off all the lights. Horn Switch: Press and hold the horn switch for horn sound, and release the horn switch to stop the sound. Speed Switch: Click the speed switch once to shi�...
-
Page 11: Display Module
DISPLAY MODULE Ba�ery Indicator: Six led light bars on the display show the ba�ery level. It is recommended not to drain the ba�ery by 100% and charge it before use. Le� & Right Turn signal- The le� and right turn signals indicate the corresponding lower turn light flash while you are steering le� or right. -
Page 12: Gyrocopters Plaid Electric Scooter Operation
Current speed: The display shows the current speed. Single mileage: Show the current mileage during the ride, and automa�cally return to zero a�er turning off the power supply. GYROCOPTERS PLAID ELECTRIC SCOOTER OPERATION Wear your helmet and personal protec�on gear before riding to avoid injuries. - Page 13 GYROCOPTERS PLAID ELECTRIC SCOOTER OPERATION Press the power switch and turn on the vehicle power supply, confirm that the power is sufficient before riding. Standing on the deck with one foot on deck, press the accelera�on once the scooter has gained momentum put the other foot on deck.
-
Page 14: Folding The Scooter
FOLDING THE SCOOTER Turn the fold connector knob counter- clockwise un�l the fold connector buckle no longer holds the connector Fold the handlebars and tubes to the rear fender. WHAT’S IN THE BOX 1 vehicle; 4 M5*P0.8 screws, 1 x internal hexagon wrench, 1 charger...
