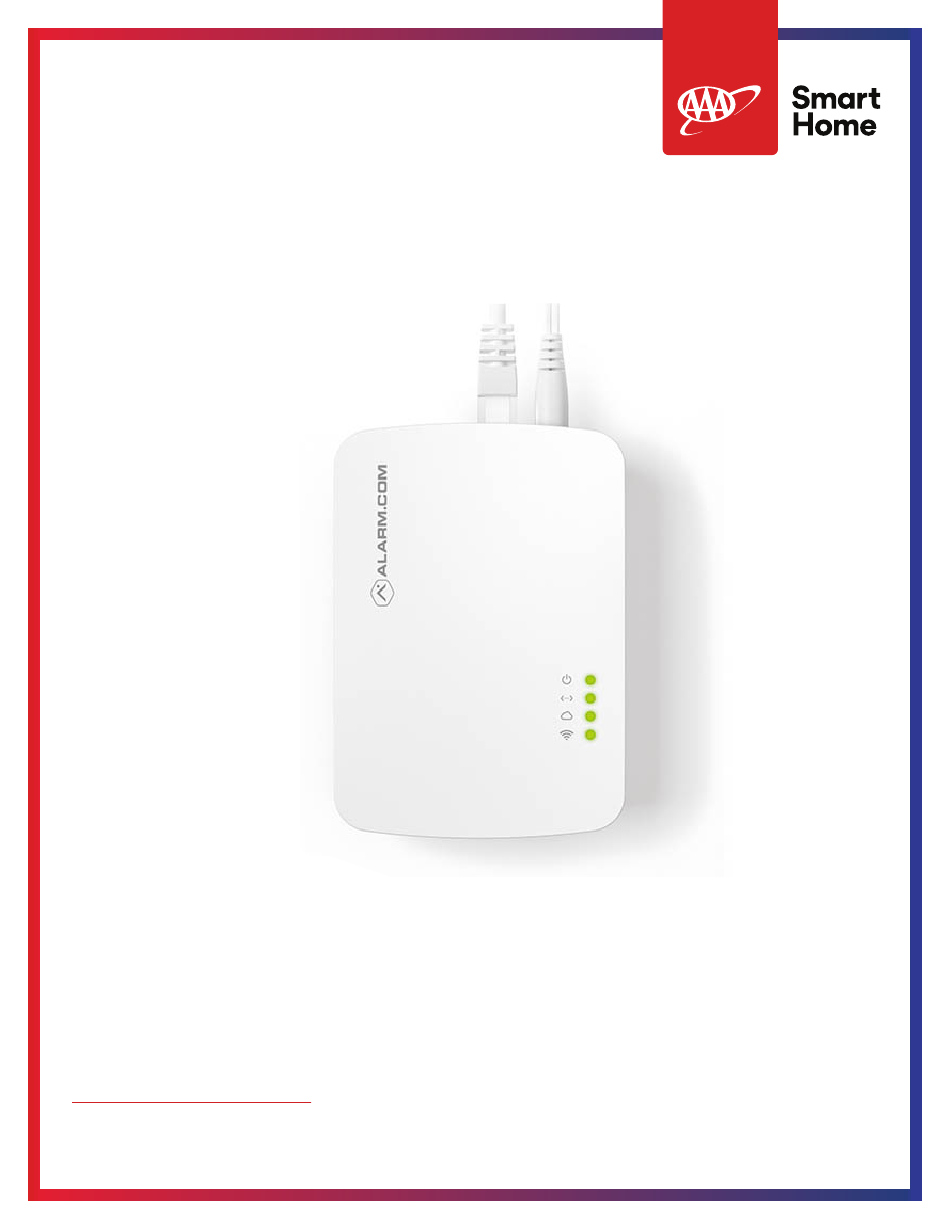

- Page 1 The Hub Installation Manual Installation Support: (877) 998-1457 AAA.com/SmartHome-Install...

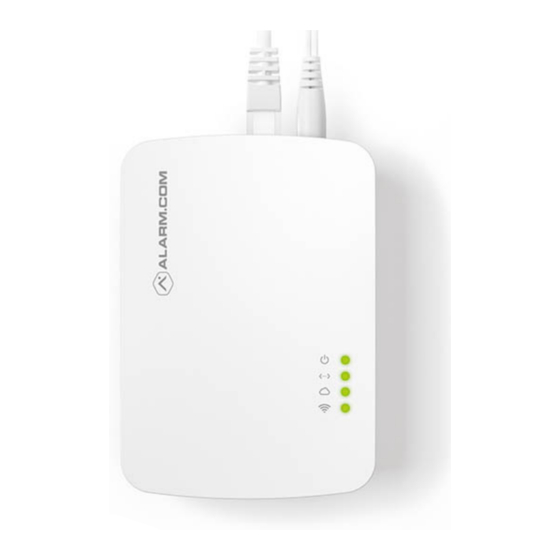

- Page 2 Smart Gateway The Smart Gateway (ADC-SG130Z) is a home automation hub for Z-Wave devices and Wi-Fi cameras.
- Page 3 ❶ Power LED ❷ Data LED ❸ Communication LED ❹ Wi-Fi LED ❺ Z-Wave LED ❶ ❷ ❸ ❹ ❺ ❻ Reset Button (Pinhole) ❼ WPS Button ❽ Z-Wave Button ❻ ❼ ❽...
-
Page 4: Pre-Installation Checklist
Pre-installation checklist • ADC-SG130Z Smart Gateway (included) • Ethernet cable (included) • 12 VDC power adapter (included) • Router with broadband (cable, DSL, or fiber optic) Internet connection and an open Ethernet port • A computer, tablet, or smartphone with an Internet connection •... - Page 5 Use the Smart Gateway as a Z-Wave automation controller Log in to the Partner Portal or MobileTech. Create a new customer with the Automation and Awareness account type. When asked for a serial number, input the MAC address of the Smart Gateway. The MAC address can be found on the back label of the Smart Gateway or on the packaging.
- Page 6 Add Z-Wave devices to the Smart Gateway (automation accounts) To add Z-Wave devices locally using the buttons on the device: Press and release the Z-Wave button located on the side of the Smart Gateway to put it into Add mode. The Z-Wave LED will begin blinking slowly.
- Page 7 Remove a Z-Wave device from the Smart Gateway (automation accounts) To remove Z-Wave devices locally using the buttons on the Smart Gateway: Press and hold the Z-Wave button located on the side of the Smart Gateway for 3 seconds until the Z-Wave LED goes solid.
- Page 8 LED reference guide Power Device powered on Device powered off Flashing Device booting Data On/Flashing Device transferring/receiving data over Ethernet No data is being transferred over Ethernet. Please check the Ethernet connection between the Smart Gateway and the router.
- Page 9 Communication Connected to Alarm.com No local or Internet connection See troubleshooting section Flashing (slowly) Local connection, no Internet Flashing (5 quick blinks) Communication test initiated Active Inactive Flashing WPS Mode continued...
- Page 10 Z-Wave Normal operation Add process: Flashing (slowly) In Add Mode Flashing (quickly) Adding new device Solid (15 seconds) Device added Remove process: Solid In Remove Mode Additional States All LEDs Flashing (escalating) Firmware Upgrade in progress All LEDs Flashing (simultaneously) Reset in progress...
-
Page 11: Troubleshooting
Troubleshooting If you are still having issues using the Smart Gateway, please try the following troubleshooting options: Check your router’s connection to the Internet If you cannot access the Internet using your router, please contact your Internet service provider to restore Internet access. - Page 12 Partial reset During a partial reset, all associated devices remain paired to the Smart Gateway and the communication settings are reset. Press and hold the reset button for 15 to 20 seconds. All LEDs will blink simultaneously to indicate that the device will be partially reset. Full factory reset A factory reset will return the Smart Gateway to factory settings and reset the Z-Wave network.
- Page 13 Notices Z-WAVE This product can be operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers. All non- battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network. FCC STATEMENT This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
- Page 14 • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help.
- Page 15 INDUSTRY CANADA STATEMENT This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device. This equipment complies with Canada radiation exposure limits set forth for an uncontrolled environment.
