Nomenclature - Canon EOS Rebel T1i Instruction Manual

Nomenclature

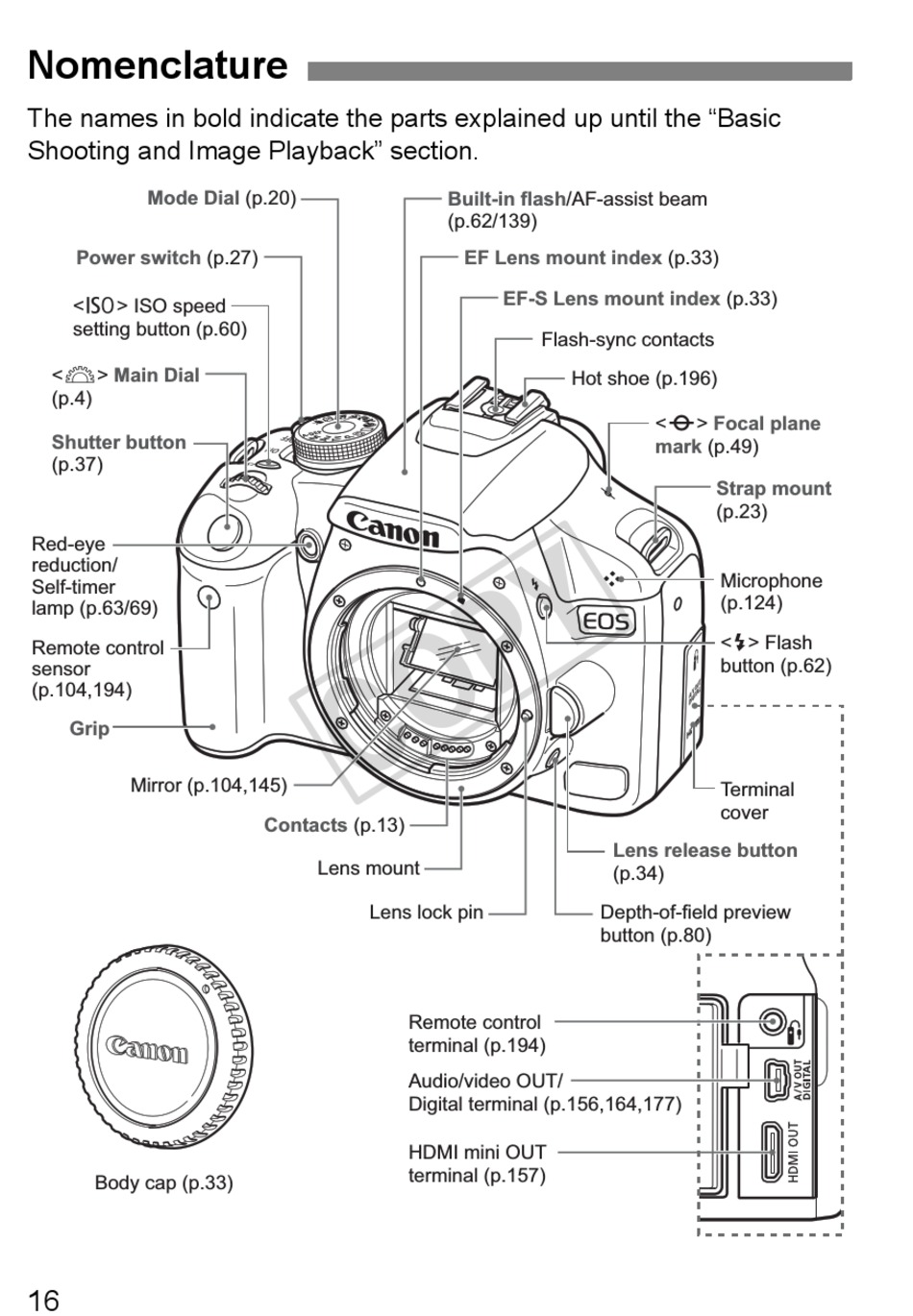

The names in bold indicate the parts explained up until the "Basic
Shooting and Image Playback" section.
Mode Dial
Power switch
<Z> ISO speed
setting button (p.60)
<6> Main Dial
(p.4)
Shutter button
(p.37)
Red-eye
reduction/
Self-timer
lamp (p.63/69)
Remote control
sensor
(p.104,194)
Grip
Mirror (p.104,145)
Body cap (p.33)
16
(p.20)
(p.27)
Contacts (p.13)
Lens mount
Lens lock pin
Built-in flash/AF-assist beam
(p.62/139)
EF Lens mount index
EF-S Lens mount index
Flash-sync contacts
Hot shoe (p.196)
Remote control
terminal (p.194)
Audio/video OUT/
Digital terminal (p.156,164,177)
HDMI mini OUT
terminal (p.157)
(p.33)
(p.33)
<V> Focal plane
mark (p.49)
Strap mount
(p.23)
Microphone
(p.124)
<D> Flash
button (p.62)
Terminal
cover
Lens release button
(p.34)
Depth-of-field preview
button (p.80)
