Next LOFT 861767 Assembly Instructions Manual

Single carcass

Advertisement

Quick Links

IMPORTANT - RETAIN FOR FUTURE REFERENCE - READ CAREFULLY.
Tools Needed
Helpline
If you have any problems with this
product or require any replacement
fittings please contact Customer
Services Tel: 0844 844 8999
Regrettably self assembly items cannot be returned once assembly is part or fully completed
unless the item is found to be faulty. Should you need to return the unassembled product,
please repack in the original packaging.
IMPORTANT
• We suggest you spend a short time reading through this leaflet and then follow the simple
step by step instructions.
• Carefully check that you have all parts before beginning assembly.
• Keep fittings out of children's reach and keep children well away from the construction area.
• We recommend that the packaging is used to protect the surfaces during assembly.
• A minimum of 2 persons is required to assemble this product.
• We recommend the use of the wall attachment bracket for safety reasons.
PRODUCT INFORMATION
Made in Poland.
CARE INSTRUCTIONS
• For general cleaning, periodically dust with a soft cloth.
• Do not rub or scrub the surface when cleaning.
• Always use a non-silicone based furniture polish. Silicone in furniture polishes can break down
the lacquer finish.
• Any spills should be removed immediately with a soft clean damp cloth and dried immediately.
Avoid keeping furniturein direct sunlight or closeto any heat sources as this can cause cracking,
discolouration or warping.
• Never drag pieces of furniture across the floor as this will cause damage to the joints.
All assembly fixings should always be tightened properly and periodically check all fixings and
tighten if necessary.
• The finish will mellow and change colour over time.

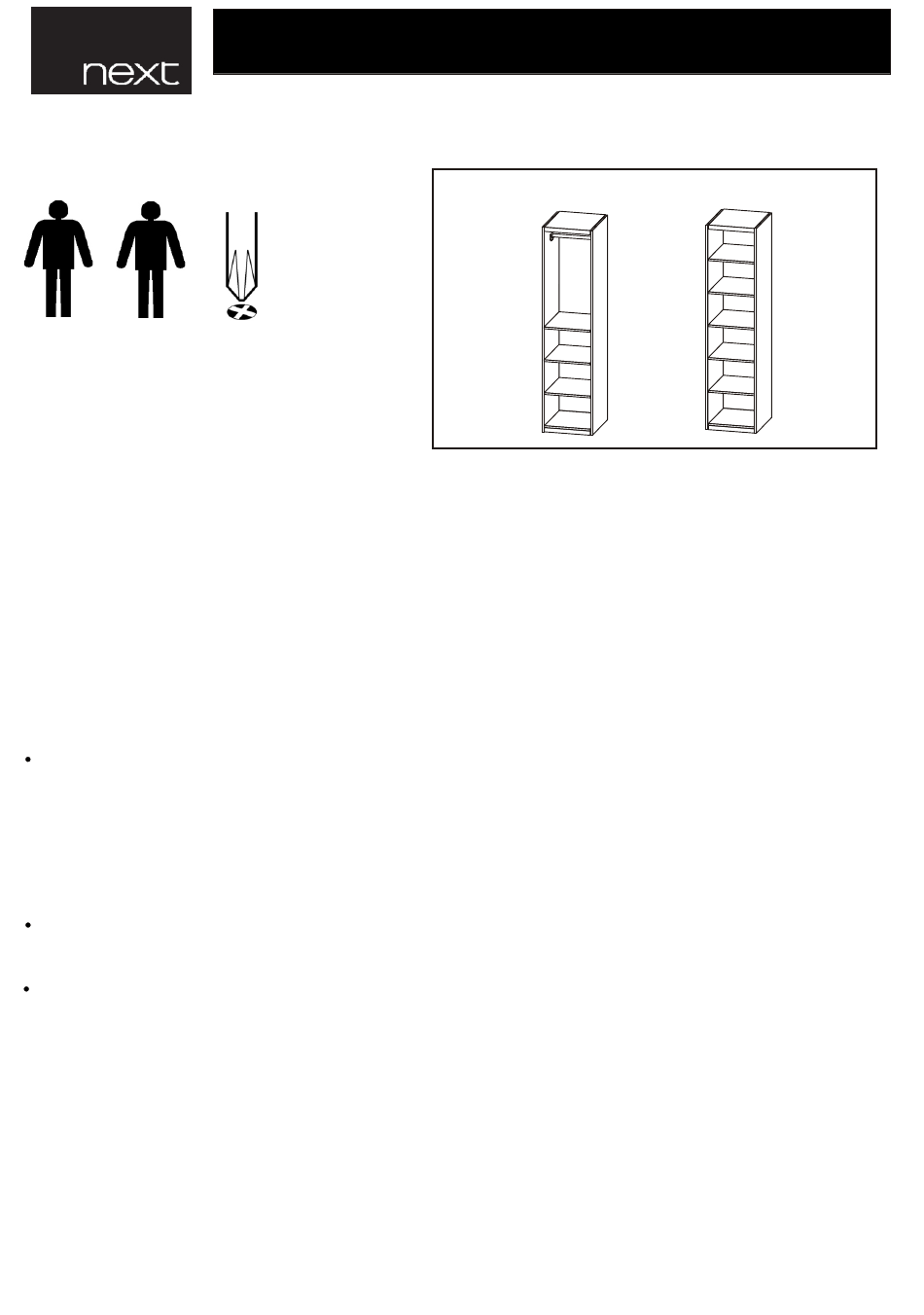

861767 LOFT SINGLE CARCASS
ASSEMBLY INSTRUCTIONS.
1 of 12
option"b"
option"a"
P5--MKK1

Advertisement

loading
Need help?

Need help?

Do you have a question about the LOFT 861767 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Next LOFT 861767

  • Page 1 861767 LOFT SINGLE CARCASS ASSEMBLY INSTRUCTIONS. IMPORTANT - RETAIN FOR FUTURE REFERENCE - READ CAREFULLY. option”b” Tools Needed option”a” Helpline If you have any problems with this product or require any replacement fittings please contact Customer Services Tel: 0844 844 8999 Regrettably self assembly items cannot be returned once assembly is part or fully completed unless the item is found to be faulty.
  • Page 2 DESCRIPTION: Assembly 861767 LOFT SINGLE CARCASS Instruction FLOOR AREA 2.0 M x 2,0 M 1.5 hrs 1 PERSON ASSEMBLY APPROXIMATE ASSEMBLY TIME REQUIRED ASSEMBLY SPACE REQUIRED ASSEMBLY TOOLS ASSEMBLED DIMENSIONS option”b” option”a” 2 of 12 P5--MKK1...
  • Page 3: Parts List

    DESCRIPTION: Assembly 861767 LOFT SINGLE CARCASS Instruction PARTS LIST NO. PART LIST (1) BOTTOM PANEL (2) PLINTH (3) LEFT SIDE PANEL (4) HORIZONTAL DIVIDER (5) TOP PANEL (6) BACK PANEL (7) RIGHT SIDE PANEL (8) SHELF CODE 3 of 12 P5--MKK1...
  • Page 4: Hardware List

    DESCRIPTION: Assembly 861767 LOFT SINGLE CARCASS Instruction HARDWARE LIST DO NOT MIX CONTENT OF HARDWARE BOXES Ø15x12mm 8x28mm 3,0x13mm Ø5x39mm CAM LOCK SHELF DOWEL CAM BOLT CLOTHES BAR SCREW BAG 1 SUPPORT SUPPORT BAG 1 BAG 1 BAG 2 BAG 1 BAG 2 HINGES PLATE “E”...
  • Page 5 DESCRIPTION: Assembly 861767 LOFT SINGLE CARCASS Instruction Top Tips before you start! Please check that all parts are present before you start the assembly of your furniture, as once assembled, the furniture is exempt from our home approval policy. For ease and speed of assembly, we recommend that before you commence each step of the assembly, that you identify all the parts required for that step.
  • Page 6 DESCRIPTION: Assembly 861767 LOFT SINGLE CARCASS Instruction SCREW IN CAM SCREWS PRESS IN CAM LOCKS. ARROW ON CAM ONLY DOWN TO FIRST RING. LOCK MUST FACE HOLE IN PANEL EDGE. FLUSH WITH DO NOT INSERT DOWELS PANEL IN CAM SCREW / LOCK HOLES. TO SECURE PANELS, PRESS PANELS TOGETHER ALIGNING TURN CAM LOCKS 1/2 TURN CLOCKWISE.
  • Page 7 DESCRIPTION: Assembly 861767 LOFT SINGLE CARCASS Instruction 6x 8x HINGES PLATE “E” FOR FIXING DOORS ARE INCLUDED WITH THE DOORS. option”a” 7 of 12 P5--MKK1...
  • Page 8 DESCRIPTION: Assembly 861767 LOFT SINGLE CARCASS Instruction 1/2 TURN CLOCKWISE. 8 of 12 P5--MKK1...
  • Page 9 DESCRIPTION: Assembly 861767 LOFT SINGLE CARCASS Instruction option”a” 9 of 12 P5--MKK1...
  • Page 10 DESCRIPTION: Assembly 861767 LOFT SINGLE CARCASS Instruction 1/2 TURN CLOCKWISE. 10 of 12 P5--MKK1...
  • Page 11 DESCRIPTION: Assembly 861767 LOFT SINGLE CARCASS Instruction option”a” NOT SUPPLIED - STEP STEP option”b” WHEN CARCASS IS ASSEMBLED PLEASE REFER TO FURTHER INSTRUCTIONS INCLUDED WITH THE DOORS Wall fixings are not supplied with this product as different wall materials require different types of fixing devices( such as Rawl plugs used on brick work).You must use fixing devices suitable for the type of wall you intend to mount this product to.
  • Page 12 DESCRIPTION: Assembly 861767 LOFT SINGLE CARCASS Instruction Hinges Adjustment Facilities a)Side adjustment: Loosen fixing screw “A”,adjust gap with screw “B” and retighten screw “A”. b)Depth adjustment: Loosen fixing screw “A”, push hinge arm forwards or backwards, re-tighten screw “A” ,fix screw “B” with a 1/4-turn in clock-wise direction.
