- Page 1 Airofit PRO 2.0 User Manual...
-
Page 2: Table Of Contents
Contents Purpose and Scope Intended Use and Users Safety Precautions Operation Maintenance Getting started with Airofit PRO Warning Notifications Troubleshooting Technical Specifications Airofit Limited Warranty... -
Page 3: Purpose And Scope
This user manual describes the functionality and intended usage of Airofit PRO 2.0. Intended Use and Users The Airofit PRO 2.0 is intended to exercise the muscles of the respiratory system. This product is not intended to diagnose, treat, cure, or prevent any disease. Intended users are: •... - Page 4 1-2 minutes before moving on to other activities. • The Airofit PRO 2.0 is suitable for ages 12 and over. Users under the age of 15 should only use Airofit under the supervision of an adult.
- Page 5 • Do not drop your Airofit PRO 2.0. Dropping the Breathing Trainer may result in malfunction or cause a decline in performance. • Ensure that the inhale/exhale vents located on the sides of Airofit PRO 2.0 are not obstructed while training.
-
Page 6: Operation

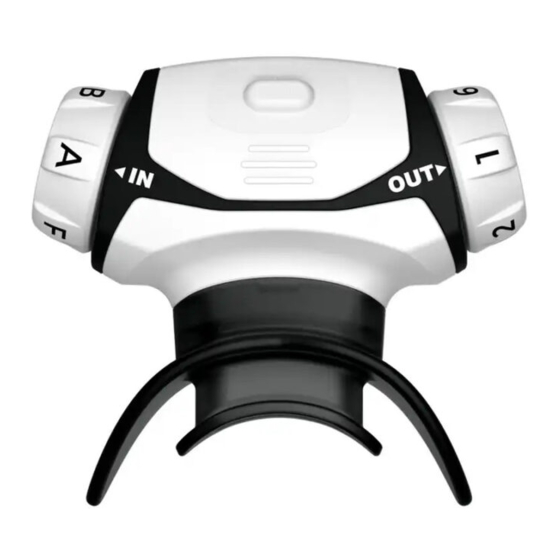

• Only use the supplied magnetic charging cable together with a CE-certified USB charger (refer to Technical Specifications). • If you have more than one Airofit PRO 2.0 Breathing Trainer, do not swap the E-Units. Each E-Unit is calibrated precisely to the device, and swapping them will cause inconsistencies in measurement results. - Page 7 4.2 Getting to Know the Airofit PRO 2.0 Power Button Expiratory Resistance Wheel Removable E-Unit Trainer Unit Inspiratory Resistance Wheel Removable Mouthpiece...
- Page 8 Power Button Press the Power button to turn ON the Airofit PRO 2.0 Breathing Trainer. It will begin to blink green to indicate that the device is ON - at this point, it is ready to be paired with the mobile application.
- Page 9 4.3 Using the Airofit Correctly When using the Airofit PRO 2.0 Breathing Trainer, you should be relaxed and sitting upright. Keep your head facing straight forward, as looking down can cause more salivation. Do not hold the Airofit PRO 2.0 Breathing Trainer with your hand during training unless absolutely necessary.
-
Page 10: Maintenance
Always make sure that your device is dry before storing it. We advise you to store your Airofit PRO 2.0 Breathing Trainer in a suitable, clean, and hygienic way. Fully charge your device if you are storing it for more than a week without use to avoid full battery depletion. -
Page 11: Getting Started With Airofit Pro
Monthly Maintenance Charge your Airofit PRO 2.0 Breathing Trainer fully at least once a month, even when not in use, to avoid complete battery depletion. Getting Started with Airofit PRO 2.0 First-time use essentials Before you start your training, it is recommended to charge the E-Unit until the light is solid green. - Page 12 6.2 Start Training Based on the goal selected in the Airofit app, you will find training recommendations within the app. Prepare your trainer by setting the correct resistance levels and follow the app guidance to start the training. When your exercise is finished, the result screen will appear in the app, and you will see a summary of your training.
- Page 13 6.4 Settings You can update your profile in the settings. Your account is protected by a password, which can be reset. Preferences for background music and guidance sound can be turned on/off for your training exercise. If you have any questions about training, you can get them answered by clicking on the FAQ button.
-
Page 14: Warning Notifications
Intermediate Expert Warning Notifications The list of warning notifications: The battery on your Airofit device is low. Please charge as soon as Battery low (20%) possible. The battery on your Airofit device is critically low and it might turn Battery low (5%) off unexpectedly. -
Page 15: Troubleshooting
Troubleshooting General troubleshooting guidance is available online at: https://www.airofit.com/ faq/ Technical Specifications 9.1 Airofit PRO 2.0 Breathing Trainer Description Notes Air resistance Inhalation air resistance A-F: 10-250 cmH O at (1 liter/sec) Exhalation air resistance 1-6: 10-200 cmH O at (1 liter/sec) - Page 16 Description Notes Lung capacity compliance 0 to 200%: Low: < 2.5 liter Medium: 2.5 - 4.5 liter High: > 4.5 liter MIP/MEP compliance 0 to 200%: Low: < 70% Medium: 70 - 140% High: > 140 % Breathing compliance 0 to 100%: Acceptable: 20-40 % Fair: >...
- Page 17 Description Notes Material Mouthpiece Housing Battery Rechargeable 3.7V Li-ion, 35mAh Capacity 8 hours Charger 5V, min 100mA Charging time 8 hours Charger plug Magnetic connector Communication Bluetooth BLE version 5.1 Dimensions Size 70mm x 77mm x 33mm Weight Smartphone App IOS version 11 or newer Android version...
- Page 18 Electrical safety Type B Leakage current < 0.5mA IEC 60601-1-2 9.3 Standards The Airofit PRO 2.0 training system is designed according to the Medical Device Directive - MDD 2007/47/EC. The Airofit system is manufactured with compliance to medical device Class I.
- Page 19 The Airofit system complies with the EU Directive on personal data security - 2016/680/EU. The major standards applied are: Standard Title Date IEC 60601-1 (ed. 3.1) Medical electrical equipment 2012 General requirements for basic safety and essential performance IEC 60601-1-2...
- Page 20 9.4 Radio Equipment Compliance The Airofit system complies with Radio Equipment Directive (RED) - 2014/53/EU. The device complies with part 15 of the FCC Rules. FCC ID: 2ATQX-AF003 Operation is subject to the following two conditions: 1. This device may not cause harmful interference.
- Page 21 This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). IC: 25191-AF003 Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation.
-
Page 22: Airofit Limited Warranty
Airofit Limited Warranty Airofit Sport A/S warranties this product to be free from defects in material or workmanship for a period of twenty-four (24) months from the date of purchase, provided that the product is used in a home environment and according to this manual. - Page 23 Copyright © 2022 by Airofit A/S, Denmark All rights reserved. No part of this publication Airofit A/S may be reproduced, distributed, or transmitted Rønnegade 1, 5th floor in any form or by any means, including Copenhagen Ø, 2100 photocopying, recording, or other electronic or...
