MODEL :47LD500_LC470WUH-SCR7
P/NO：SG-0362 (REV00)
Printed in Taiwan

Advertisement

Table of Contents
loading

Related Manuals for LG 47LD500

Summary of Contents for LG 47LD500

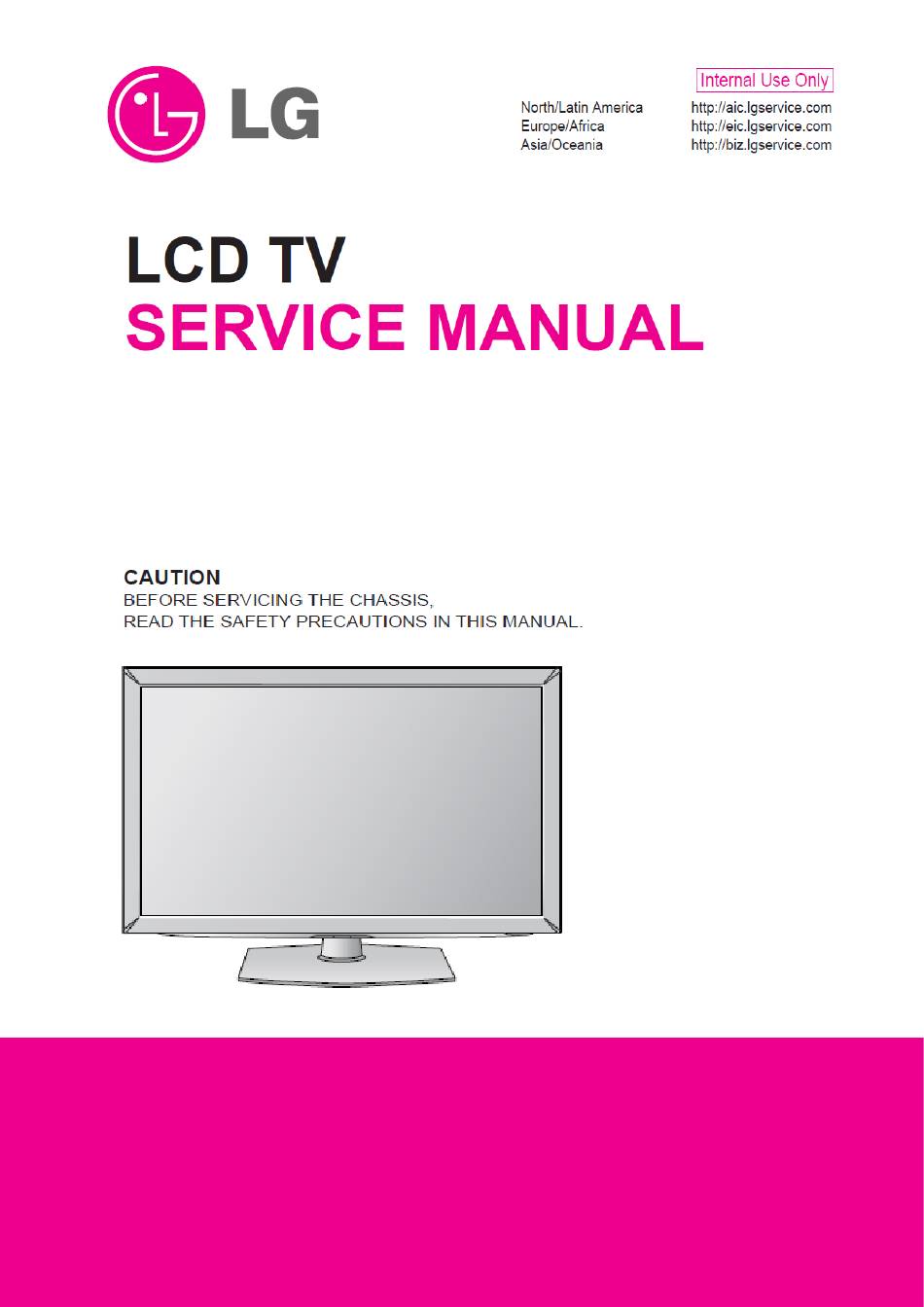

  • Page 1 MODEL :47LD500_LC470WUH-SCR7 P/NO：SG-0362 (REV00) Printed in Taiwan...

  • Page 2: Table Of Contents

    8. Waveforms 9. Trouble Shooting 10. Block Diagram 10-1 11. Spare parts list 11-1 12. Complete Parts List 12-1 13. EDID List 13-1 Appendix 1. Main Board Circuit Diagram 2. Main Board PCB Layout 3. Assembly Explosion Drawing 47LD500 Service Manual...

  • Page 3: Features

    Chapter 1 Features 1. Built in TV channel selector for TV viewing. 2. Simultaneous display of PC and TV images. 3. Connectable to PC’s analog RGB port. 4. Built in HDTV, composite video, HDMI, ATV and DTV, Audio line out, Audio optical out.

  • Page 4: Specifications

    Chapter 2 Specification 1. TFT-LCD CHARACTERISTICS Model Name: LGD LC470WUH-SCR7 (Vendor: LG. Philips LCD Co., Ltd) Item Specification Active Screen Size 46.96 inches(1192.87mm) diagonal Outline Dimension 1096.0(H) x 640.0 (V) x 35.5 mm(D) (Typ.) Pixel Pitch 0.5415 mm x 0.5415 mm Pixel Format 1920 horiz.
  • Page 5 4. POWER SUPPLY Input Voltage Level: 100~240 Vac, 50/ 60 Hz Power Consumption: 239W MAX Power OFF: to less than 1W MAX (at 120 Vac) 5. SPEAKER Built in Speakers:6Ω/10W (max) X 2 way. 6. ENVIRONMENT Operating Temperature: 5℃~35℃ (Ambient) Operating Humidity: Ta= 35℃, 90%RH(Non-condensing) Operating Altitude: 0 - 14,000 ft Non-Operating: 4000 ft...
  • Page 6 9. Precautions Please pay attention to the followings when you use this TFT LCD module. 9-1. Mounting Precautions (1) You must mount a module using holes arranged in four cornersor four sides. (2) You should consider the mounting structure so that uneven force (ex. Twisted stress) is not applied to the module.
  • Page 7 9-2. Operating Precautions (1) The spike noise causes the mis-operation of circuits. It should be lower than following voltage: V=±200mV (Over and under shoot voltage) (2) Response time depends on the temperature. (In lower temperature, it becomes longer.) (3) Brightness depends on the temperature. (In lower temperature, it becomes lower.) And in lower temperature, response time(required time that brightness is stable after turned on) becomes longer.
  • Page 8 (1) Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep the temperature between 5°C and 35°C at normal humidity. (2) The polarizer surface should not come in contact with any other object. It is recommended that they be stored in the container in which they were shipped.

  • Page 9: On Screen Display

    Chapter 3 On Screen Display On Screen Display (OSD) is a friendly interface providing the function adjusting in our system. Customers could operate it only by few buttons. There is the introduction of the OSD. <Side> A. LED indicator display on the front LED indicator Status Remark...
  • Page 10 ii. Menu operation Press button to activate the quick menu. Press the button again to activate function. Turn Left or Right button to select function On Screen Display Operation: Main unit button LGE 2008 UI Adjustment Main Menu Channel Picture Audio Time Option...
  • Page 11 Channel A. Auto Tuning B. Manual Tuning a. Type: TV, CATV, DTV, CADTV b. Channel c. Add / Delete d. Close C. Channel Edit a. Type: TV, CATV, DTV, CADTV b. Channel Select c. Add / Delete / Remove Favorite Picture A.
  • Page 12 c. Brightness (0 ~ 100) d. Sharpness (0 ~ 100) e. Color (0 ~ 100) f. Tint (R50 ~ G50) g. Advanced Control g-1. Color Temperature (Cool, Medium, Warm) g-2. Fresh Contrast (Off, Low, Medium, High) g-3. Fresh Color (Off, Low, High) g-4.
  • Page 13 Time A. Clock (Auto, Manual) a. Year (2000 ~ 2035) b. Month (1 ~ 12) c. Date (1 ~ 31) d. Hour (12AM ~ 11PM) e. Minute (0 ~ 59) f. Time Zone (Eastern, Central, Mountain, Pacific, Alaska, Hawaii) g. Daylight Saving (Auto, On, Off) B.
  • Page 14 HDMI2 (VCR, DVD, Set Top Box, Satellite, Cable Box, Game, PC, HD-DVD, Blu-Ray) f. HDMI3 (VCR, DVD, Set Top Box, Satellite, Cable Box, Game, PC, HD-DVD, Blu-Ray) (47LD500 only) C. Key Lock (Off, On) D. Caption (Off, On) a. Mode (CC1 ~ Text4, Service1 ~ Service6) b.
  • Page 15 G. Downloadable Rating H. Input Block a. AV (Off, On) b. Component (Off, On) c. RGB-PC (Off, On) d. HDMI1 (Off, On) e. HDMI2 (Off, On) HDMI3 (Off, On) (47LD500 only) CONFIDENTIAL – DO NOT COPY Page 3-7 File No. SG-0362...
  • Page 16 Slideshow Effect (Random, Dissolve, Wipe Right, Wipe Left, Wipe Up, Wipe Down, Box In, Box Out) f. Thumbnail Size (Small, Medium, Large) B. Music List (47LD500 only) a. Sort By (Title/File, Genre, Artist, Album) b. Play Mode (Single, Sequence, Shuffle) c.
  • Page 17 QMenu A. Aspect Ratio (Set By Program, 4:3, 16:9, Zoom, Cinema Zoom, Just Scan) B. Backlight (0 ~ 6) C. Picture Mode (Vivid, Standard, Cinema, Sport, Game) D. Sound Mode (Standard, Music, Cinema, Sport, Game) E. Caption (Off, On) F. Multi Audio (Mono, Stereo, SAP) G.

  • Page 18: Factory Preset Timings

    Chapter 4 Factory preset timings This timing chart is already preset for the TFT LCD analog & digital display monitors. PC analog preset modes Horizontal Vertical Refresh Horizontal Vertical Mode Sync Sync Pixel Rate Resolution Rate Frequency Frequency Remark Polarity Polarity (MHz) (Hz)
  • Page 19 HD video digital preset modes at HDMI Mode No. Resolution 480i 480p 720p 1080i 1080p Video input Mode No. Resolution 480i 480p 720p 1080i 1080p Color temperature & Speciation R.G.B. Color temperature: 13000K 9300K 6500K Tolerance 0.269 0.285 0.313 ±0.030 0.273 0.293 0.329...

  • Page 20: Pin Assignment

    Chapter 5 Pin Assignment 1 Video Graphics Array (VGA) connector pin assignment The TFT LCD analog display monitors use a 15 Pin Mini D-Sub connector as video input source. Description Green Blue Ground Ground R-Ground G-Ground B-Ground +5V for DDC Ground No Connection (SDA)
  • Page 21 2 High Definition Multimedia Interface (HDMI) connector pin assignment SIGNAL ASSIGNMENT TMDS Data2+ TMDS Data2 Shield TMDS Data2- TMDS Data1+ TMDS Data1 Shield TMDS Data1- TMDS Data0+ TMDS Data0 Shield TMDS Data0- TMDS Clock+ TMDS Clock Shield TMDS Clock- Reserved (N.C on device) DDC/CEC Ground +5V Power Hot Plug Detect...
  • Page 22 3 Signal Specification 3.1 F-Type TV RF connector a. Signal Level 60dBµV typical b. System: NTSC c. Frequency: 55~801MHz (NTSC) 3.2 PC connector 15 pin male D-sub connector a. Pin Assignment Refer to Section 5.1 b. Signal Level Video (R, G, B): Analog 0.7Vp-p/75Ω Sync (H, V): TTL level c.
  • Page 23 3.5 Component signal a. Frequency H: 15.734KHz V: 60Hz (NTSC-480i) H: 31KHz V: 60Hz (NTSC-480p) H: 45KHz V: 60Hz (NTSC-720p) H: 33KHz V: 60Hz (NTSC-1080i) H: 67.5KHz V: 60Hz (NTSC-1080P) b. Signal level Y: 1Vp-p; Pb: ±0.350Vp-p; Pr: ±0.350Vp-p c. Impedance 75Ω d.

  • Page 24: Main Board I/O Connections

    Chapter 6 Main Board I/O Connections J1 C [Main BD to Power BD] ONNECTION Description +5VSB +5VSB +5VSB +12V +12V +12V POWER SW ON OFF BL ON OFF Lamp Status PWM DIM J2 C [Download and Debugging] ONNECTION Description +3V3SB U0RX U0TX CONFIDENTIAL –...
  • Page 25 J3 C [JTAG INTERFACE] ONNECTION Description AV33 TVTREF#1 JTRST# JTDI JTMS JTCK Pull High AV33 JTDO N.C. JTAG DBGRQ JTAG DBGACK J4 C [Main BD to LED Logo] ONNECTION Description 5VSB WHITE AMBER CONFIDENTIAL – DO NOT COPY Page 6-2 File No.
  • Page 26 J6 C [Main BD to IR Light Sensor BD] ONNECTION Description OIRI_in 5VSB DETECT LS_SCL LS_SDA J9 C [ LVDS1 ] ONNECTION Description Description OPC_EN R4CLKN LVDSVDD R4CN LVDS_OPTION R4BP LVDSVDD R4AP BIT_SEL R4BN LVDSVDD R4AN VBR_OUT27 LVDSVDD EXT_BR28 R3EP PANEL_IO1 R3DP SCAN_BLK2...
  • Page 27 J10 C [ LVDS2 ] ONNECTION Description Description R1EP R2EP R1DP R2DP R1EN R2EN R1DN R2DN R1CLKP R2CLKP R1CP R2CP R1CLKN R2CLKN R1CN R2CN R1BP R2BP R1AP R2AP R1BN R2BN R1AN R2AN J15 C [Main BD to SPEAKER ] ONNECTION Description J16 C [Main BD to IR Light Sensor BD]...

  • Page 28: Theory Of Circuit Operation

    Chapter 7 Theory of Circuit Operation The route of D-SUB 15pin input An RGB (analog) signal is inputted the D-SUB 15pin to the MT5392B which transfers it to a digital signal by the A/D converter. Then MT5392B generates a Low Voltage Differential Signal (LVDS) for display device.
  • Page 29 The operation of keypad There are Jag Wheel/Button to control and to select the function of 32LD400/ 42LD400. Also, there is a LED back light to indicate the status of operation (Red → STANDBY, Green → ON). MT5392B Ⅰ. GENERAL DESCRIPTION The MediaTeK MT5392 family consists of a DTV front-end demodulator, a backend decoder and a TV controller and offers high integration for advanced applications.
  • Page 30 Key Features: 1. ATSC/DVB demodulator 2. True 120Hz Full-HD MJC 3. An multi-standard video decoder 4. An AC3/MPEG2 audeo decoder 5. HDMI1.3 receiver 6. Audio codec 7. Four-link LVDS (5392). Note: All Package are Lead Free System Block Diagram Page 7-3 CONFIDENTIAL –...
  • Page 31 Functional Block Diagram Ⅱ.FEATURES Host CPU 1. ARM 11 2. 16K I-Cache and 16K D-Cache 3. 16K Boot ROM 4. JTAG ICE interface 5. Watch Dog timer Page 7-4 CONFIDENTIAL – DO NOT COPY File No. SG-0362...
  • Page 32 Transport Demultiplexer 1. Supports a serial or parallel transport stream input 2. Supports ATSC, DVB transport stream input 3. Supports DES/3-DES/DVB/AES/Multi-2 de-scramblers 4. Up to 8 PIDs even/odd keys for descrambling 5. Supports 32 PID filters and 32 section filters 6.
  • Page 33 De-mosquito engine 1. 3D de mosquito engine ME/MC engine 1. 5392 support FHD 120Hz 2. Support motion judder compensation 3. Support 24Hz/60Hz to 120Hz, 25Hz/50Hz to 100Hz in100/120Hz panel 4. Support 24Hz/60Hz, 25Hz/50Hz in 50/60Hz panel 5. Support 50Hz to 75Hz for 75Hz panel 6.
  • Page 34 Video Plane 1. Supports video capture and over scan 2. Flesh tone management 3. Gamma/anti-Gamma correction 4. Color Transient Improvement (CTI) 5. 2D peaking 6. Saturation/hue adjustment 7. Brightness and contrast adjustment 8. Black and White level extender 9. Adaptive Luma/Chroma management 10.
  • Page 35 CVBS In 1. On chip 54MHz 10-bit video ADC 2. Supports PAL (B,G,D,H,M,N,I,Nc), NTSC, NTSC-4.43 and SECAM 3. NTSC/PAL support 3D comb filter and SECAM supports 2D comb filter 4. Built-in Motion Adaptive 3D Noise Reduction 5. VBI data slicer for CC/TT decoding 6.
  • Page 36 TV audio demodulator 1. Supports BTSC /EIA-J/A2 /NICAM /PAL, FM /SECAM world wild formats 2. Standard automatic detection 3. Stereo demodulation, SAP demodulation 4. Mode selection (Main/SAP/Stereo) Audio DAC 1. 6 on-chip audio DACs (3-pairs) support R/L channel and subwoofer outputs DRAM Controller 1.
  • Page 37 S/PDIF interface 1. One SPDIF input 2. One SPDIF out Digital TV (ATSC/Open-Cable) Demodulator 1. Compliant with ATSC digital television standard 2. Supports SCTE DVS-031 and ITU J.83 Annex B digital CATV standard 3. Accepts direct IF (44MHz or 43.75MHz) and low IF (5.38MHz) 4.
  • Page 38 Peripherals 1. Built-in (T8032) in standby module 2. SDIO interface 3. Support MII/RGMII interface (built-in Ethemet MAC) 4. Three built-in UARTs with Tx and Rx FIFO, one of them has hardware flow control and high speed data transferring 5. Four basic serial interfaces ; one is for the tuner, two is the master for general purpose, the other one extra slave serial interfaces for HDMI EDID data 6.
  • Page 39 2. DC Characteristics 3. Thermal Characteristics 4. DDR2 ELECTRICAL Characteristics and DC Operating Condition Page 7-12 CONFIDENTIAL – DO NOT COPY File No. SG-0362...
  • Page 40 5. DDR2 AC Operating Condiction 6. DDR3 ELECTRICAL Characteristics and DC Operating Condition 7. DDR3 AC Operating Condition Page 7-13 CONFIDENTIAL – DO NOT COPY File No. SG-0362...
  • Page 41 Flash: MX25L6445E Page 7-14 CONFIDENTIAL – DO NOT COPY File No. SG-0362...
  • Page 42 Page 7-15 CONFIDENTIAL – DO NOT COPY File No. SG-0362...
  • Page 43 Page 7-16 CONFIDENTIAL – DO NOT COPY File No. SG-0362...
  • Page 44 Page 7-17 CONFIDENTIAL – DO NOT COPY File No. SG-0362...
  • Page 45 Page 7-18 CONFIDENTIAL – DO NOT COPY File No. SG-0362...
  • Page 46 Page 7-19 CONFIDENTIAL – DO NOT COPY File No. SG-0362...
  • Page 47 Page 7-20 CONFIDENTIAL – DO NOT COPY File No. SG-0362...
  • Page 48 Page 7-21 CONFIDENTIAL – DO NOT COPY File No. SG-0362...
  • Page 49 Page 7-22 CONFIDENTIAL – DO NOT COPY File No. SG-0362...
  • Page 50 Page 7-23 CONFIDENTIAL – DO NOT COPY File No. SG-0362...
  • Page 51 Page 7-24 CONFIDENTIAL – DO NOT COPY File No. SG-0362...
  • Page 52 Page 7-25 CONFIDENTIAL – DO NOT COPY File No. SG-0362...
  • Page 53 Page 7-26 CONFIDENTIAL – DO NOT COPY File No. SG-0362...
  • Page 54 Page 7-27 CONFIDENTIAL – DO NOT COPY File No. SG-0362...
  • Page 55 Page 7-28 CONFIDENTIAL – DO NOT COPY File No. SG-0362...
  • Page 56 Page 7-29 CONFIDENTIAL – DO NOT COPY File No. SG-0362...
  • Page 57 Page 7-30 CONFIDENTIAL – DO NOT COPY File No. SG-0362...
  • Page 58 Page 7-31 CONFIDENTIAL – DO NOT COPY File No. SG-0362...
  • Page 59 Page 7-32 CONFIDENTIAL – DO NOT COPY File No. SG-0362...
  • Page 60 GDDR3: K4J10324QD-HC12 Page 7-33 CONFIDENTIAL – DO NOT COPY File No. SG-0362...
  • Page 61 Audio Amplifier: TAS5708 Pin Layout and Internal Block Diagram (Top View) Page 7-34 CONFIDENTIAL – DO NOT COPY File No. SG-0362...
  • Page 62 Page 7-35 CONFIDENTIAL – DO NOT COPY File No. SG-0362...
  • Page 63 Page 7-36 CONFIDENTIAL – DO NOT COPY File No. SG-0362...

  • Page 64: Waveforms

    Chapter 8 Waveforms D_SUB RGB mode: Pixel-clock = 138.35MHz (1920x1080@60Hz ) ； Line Pattern (one white one black) data(FB63): data(FB62): data(FB61): Hsync(FB65) Vsync(FB64) VGAL_IN (R412) [Audio Input: 1KHz / 1Vrms] VGAR_IN (R416) [Audio Input: 1KHz / 1Vrms] CONFIDENTIAL – DO NOT COPY Page 8-1 File No.
  • Page 65 HDMI1-3 (1080P) CLK(R124): Component Chroma-23291, Timing-1080p, Pattern-100% color bar Component signal Y(FB33) Component signal Pb(FB34) CONFIDENTIAL – DO NOT COPY Page 8-2 File No. SG-0362...
  • Page 66 Component1 signal Pr (FB36) Composite Chroma-23291, Timing-NTSC-M, Pattern-100% color bar AV (CVBS) signal (R171) CONFIDENTIAL – DO NOT COPY Page 8-3 File No. SG-0362...

  • Page 67: Trouble Shooting

    Chapter 9 Trouble shooting MONITOR DISPLAY NOTHING (PC MODE) Start Is Power board output +5VSB &+12? LED is lighted Is J1 connector good? Is DC to DC OK? Is U1 (+5V) working ok? It is in power saving Check video cable Is the timing supported? LED is lighting? Check sync input...
  • Page 68 (TV, COMPOSITE, VIDEO) IS NOT DISPLAY CORRECTLY Start 1. Check video Input signal good? 2. Check DVD player 1. Check VIDEO signal 2. Check signal between U11 (IF IN AV U11 input correct? mode) 1. Check U11 :DV33&DV10&AV33&AV12 2. Check Y2 is OK? U11 output correct? 1.
  • Page 69 (COMPONENT) IS NOT DISPLAY CORRECTLY Start 1. Check video Input signal good? 2. Check host’s setting 1. Check signal between P5 2. Check power 12V& 5V P5 input correct? 1. Check signal between U14 2. Check U11 Clock (27MHZ) U11 input correct? 3.
  • Page 70 HDMI ) IS NOT DISPLAY CORRECTLY Start 1. Check video Input signal good? 2. Check host’s setting 1. Check U11 power 2. Check between signals U11 U11 no data out ? 3. Check U11 clock 27MHZ 1. Is J9 & J10 connected good? 2.
  • Page 71 TROUBLE OF DC-DC CONVERTER Start The voltage is 5VSB 1. Check power board 2. Check power cable J1 PIN1,2,3 connection J1 The voltage is +12V while power switch on 1. J1 connection good J1 PIN 8,9,10 2. Check power board The voltage is +5V while power U1 pin 5 6 7 8 switch on...
  • Page 72 TROUBLE OF DDC READING Start Support DDC1/2B 1. VGA cable ok? 2. Check signal (U35 to P13) Analog DDC OK? 3. Check U35 Voltage 4. Is compliant protocol? Support DDC1/2B 1. HDMI cable ok? 2. Check signal (U19 to P8) HDMIDDC OK? 3.
  • Page 73 (TV_SIDE, AUDIO) IS NOT DISPLAY CORRECTLY Start Check Audio source Input signal good? Check the player of source Check signal of Main Board Check amplifier (J15) Input correct? Check MT5392 audio out ,R690、R693 & R694 Check signal correct? Check 12V of U47. Check amplifier OK? –...

  • Page 74: Block Diagram

    Chapter 10 Block Diagram System Block Diagram CONFIDENTIAL – DO NOT COPY Page 10-1 File No. SG-0362...
  • Page 75 Power Tree CONFIDENTIAL – DO NOT COPY Page 10-2 File No. SG-0362...
  • Page 76 Wire Block CONFIDENTIAL – DO NOT COPY Page 10-3 File No. SG-0362...

  • Page 77: Spare Parts List

    IC LEVEL SHIFTER MAX17119ETI+ TQFN 28PIN LF 043070709087 IC POWER-SUPPLY MAX17113ETL+ TQFN-40 LF 043100030016 IC LIGHT SENSOR CM3217A3OG SMD OPLGA 4PIN LF 098001038011 MODULE TUNER TDVF-H052F(LG) r1.0 L-F 098002012030 MODULE. IR RECEIVER 37.9K FM-8038TM2-5DN DIP 3P LF 180101356020 FRONT BEZEL(ABS SD-0150) ASS'Y(47LD500) 180102324010...
  • Page 78 B/C LBL(White PET #50 ) LGE 32LD400(CANADA) 193613002160 SN LBL (PET #50) SUNING 193614004350 CARTON LBL (Art paper #80) CA LGE 193616003120 STREAMER STICKER LGE 47LD500 194712000311 ACETATE CLOTH TAPE 27*75mm 194712000401 ACETATE CLOTH TAPE 20*45mm 194716001050 CD LGE 32LD400 194719000290 THERMAL PAD (30* 30* 2.0t)(SV420M Small Shielding)

  • Page 79: Complete Parts List

    Chapter 12 Complete Parts List 964704001053 LCD TV 47'' 47LD500-UA_LC470WUH-SCR7 位階 上階料號 下階料號 下階規格描述 單位用量 代用料 插件位置 964704001053 364702920300 SET ASSY 47LD500_LC47WUH-SCR7 1.0000 364702920300 033510066070 SPK 10W 6ohm 570*1120mm (BX-17045-06-100323-A) LF 1.0000 364702920300 046010030240 WH A2001-3/P24013 1061#28 500mm 1.0000 364702920300...
  • Page 80 BASE BKT(SGCC t=2.0mm)(42LD400) 1.0000 180105383010 172100041850 TAP. SCREW-TB #4.0*18.0L, BLK-Ni 6.0000 180105383010 172150030850 TAP. SCREW-TI M3.0*8.0L, BLK-Ni 8.0000 364702920300 180119595010 1.0000 SIDE IO COVER ASSY(FRHIPS960)(47LD500) 180119595010 170104211010 1.0000 DISPLAY KEY(VL260M)(ABS,SD-0150) 180119595010 170119595000 1.0000 SIDE IO COVER(47LD500) 180119595010 170119595010 1.0000 SIDE IO COVER(FRHIPS960)(47LD500)
  • Page 81 WAFER 2.0mm 14P 90 DIP KINK (M242614R) L-F 364703820150M 045125000443 1.0000 045125000446 WAFER 2.50mm 4P 90 KINK (A2501WR2-4P) L-F 364703820150M 098001038011 1.0000 MODULE TUNER TDVF-H052F(LG) r1.0 L-F 364703820150M 171204002170 1.0000 HEAT SINK (AL)(SV370XVT)(SV320XVT) U11H 364703820150M 171204002300 1.0000 HEAT SINK (L13*W9.5*H9.0)(E420VL)
  • Page 82 位階 上階料號 下階料號 下階規格描述 單位用量 代用料 插件位置 364703820150T 011131041616 2.0000 011231041616 C/M Multi. 0.1uF 16V X7R 0603 C506 C512 CD12 CD29 CD30 CD31 CD32 CD33 CD38 CD39 CD48 CD52 CD53 C1 C138 C141 C142 C146 C16 C178 C184 C19 C20 C202 C22 C24 C25 C26 C28 C283 C286 C298 C3 C306 C31 C314 C323 C324 C325 364703820150T 011131041617...
  • Page 83 位階 上階料號 下階料號 下階規格描述 單位用量 代用料 插件位置 FBA2 R124 R125 R147 R155 R166 R170 R223 R224 R232 R268 R270 R271 R272 R280 R311 R313 R317 R325 R387 R39 R390 R395 R402 R429 R690 R692 R693 R694 R695 R696 R698 R699 R701 R707 R709 364703820150T 013000001654 RES.
  • Page 84 位階 上階料號 下階料號 下階規格描述 單位用量 代用料 插件位置 364703820150T 013056011654 2.0000 RES. CF 5.6Kohm 1/16W J 0402 R702 TR43 364703820150T 013056021654 RES. CF 56 K ohm 1/16W J 0402 1.0000 R703 364703820150T 013068091654 RES. CF 68 ohm 1/16W J 0402 8.0000 R150 R161 R175 R385 R391 R399 R404 R409 364703820150T 013075091654...
  • Page 85 位階 上階料號 下階料號 下階規格描述 單位用量 代用料 插件位置 364703820150T 030410000113 1.0000 030410000160 CONN HDMI 19P 90 SMD With Flange (392M19-H58) L-F 364703820150T 030410000250 CONN HDMI 19P 180 SMD W/ Flange(48307-7022) LF 2.0000 030410000260 P10 P11 364703820150T 036010000320 PWR IND. 22uH 1.7A (VLC6045T-220M) LF 1.0000 036020220530 364703820150T...
  • Page 86 位階 上階料號 下階料號 下階規格描述 單位用量 代用料 插件位置 364703820150T 043070709087 1.0000 IC POWER-SUPPLY MAX17113ETL+ TQFN-40 LF 364703820150T 099005004000 SW 47LD500 (Gamma_1355.bin) 1.0000 TU3X 364703820150T 099005004100 SW 47LD500 (TCON_V4-2(FA=36).bin) 1.0000 TU1X 364703820150T 364703820150B MAIN BD ASSY 47LD500_LC470WUH-SCR7 BOT 1.0000 364703820150B 011131025117 C/M MULTI 1000PF 50V X7R 0402 1.0000...
  • Page 87 032040000230 POWER CORD 1800mm 125V UL/CSA 90 LF 364704020393 060360000010 2.0000 060360000020 Battery Alkaline 1.5V AAA (601-LR03) ROCKET 364704020393 098003064030 1.0000 REMOTE CONTROL MKJ36998105 FOR LG LF 364704020393 172500041250 MAC SCREW-MB M4.0*12.0L,BLK-Ni,NYLOK 6.0000 364704020393 192511000260 PE BAG 50*80*0.06T 1.0000 364704020393 192511003140 PE BAG 340*230*0.08T (VOJ370)
  • Page 88 位階 上階料號 下階料號 下階規格描述 單位用量 代用料 插件位置 364704020393 192520000140 1.0000 POLISHING CLOTH LGE 364704020393 194716001050 CD LGE 32LD400 1.0000 ******************* 資料結束 ******************* Page 12-10 CONFIDENTIAL-DO NOT COPY File No. SG-0362...

  • Page 89: Edid List

    Chapter 13 EDID List CONFIDENTIAL – DO NOT COPY Page 13-1 File No. SG-0362...
  • Page 90 CONFIDENTIAL – DO NOT COPY Page 13-2 File No. SG-0362...
  • Page 91 CONFIDENTIAL – DO NOT COPY Page 13-3 File No. SG-0362...
  • Page 92 CONFIDENTIAL – DO NOT COPY Page 13-4 File No. SG-0362...
  • Page 93 CONFIDENTIAL – DO NOT COPY Page 13-5 File No. SG-0362...
  • Page 94 CONFIDENTIAL – DO NOT COPY Page 13-6 File No. SG-0362...
  • Page 95 CONFIDENTIAL – DO NOT COPY Page 13-7 File No. SG-0362...
  • Page 96 CONFIDENTIAL – DO NOT COPY Page 13-8 File No. SG-0362...
  • Page 97 CONFIDENTIAL – DO NOT COPY Page 13-9 File No. SG-0362...
  • Page 98 CONFIDENTIAL – DO NOT COPY Page 13-10 File No. SG-0362...
  • Page 99 CONFIDENTIAL – DO NOT COPY Page 13-11 File No. SG-0362...
  • Page 100 CONFIDENTIAL – DO NOT COPY Page 13-12 File No. SG-0362...
  • Page 101 CONFIDENTIAL – DO NOT COPY Page 13-13 File No. SG-0362...
  • Page 102 CONFIDENTIAL – DO NOT COPY Page 13-14 File No. SG-0362...
  • Page 103 CONFIDENTIAL – DO NOT COPY Page 13-15 File No. SG-0362...
  • Page 104 CONFIDENTIAL – DO NOT COPY Page 13-16 File No. SG-0362...
  • Page 105 CONFIDENTIAL – DO NOT COPY Page 13-17 File No. SG-0362...
  • Page 106 CONFIDENTIAL – DO NOT COPY Page 13-18 File No. SG-0362...
  • Page 107 MT5392 (PBGA) FOR FHDTV-120Hz OPCTRL2 BACK LIGHT CONTROL +3V3SB DV33 HIGH = > OPEN POWER +12V & +24V ON High = > BL POWER ON SCHEMATIC- 4 LAYERS LOW = > POWER +12V & +24V OFF Low = > BL POWER OFF POWER IN Mega DCR ( OFF: 0 ~ 0.8V ;...
  • Page 108 Typ.Current 312mA STANDBY POWER +3V3SB ANALOG POWER AV12 Typ.Current 45mA AV12 = 1.25V AP1117EL-13 AP1117EL-13 +3V3SB AP1117EL-13 AP1117EL-13 9/22 DIP => SMD AV12 +5VSB AV33 DV10 DV10 DV33 [1,3,4,11,12] DV33 [1,6,8,10] + CE7 + CE7 + CE10 + CE10 +12V SOT223 SOT223 SOT223...
  • Page 109 U11A U11A D_DDRV AA11 STANDBTY POWER DVSS VCC2IO AV33 AA13 Near IC DVSS VCC2IO AA15 AV12 Near IC 9/21 DEL FB12~FB18,FB68 DVSS VCC2IO +3V3SB AVDD33_DIG AA16 Near IC DVSS VCC2IO AA17 AVDD12_SYSPLL AV12 DVSS VCC2IO [2,5,8,10,12,13] AV12 XREGVDD AV33 AA18 DVSS VCC2IO [2,6,7,8,10,12]...
  • Page 110 27MHz CRYSTAL UART Port 0 Reset +5VSB U11B U11B CODE DOWNLOAD / DEBUGGING TP66 TP66 GPIO_0 AVCC_XTAL AVCC_XTAL AVCC_XTAL AVCC_XTAL 820K 820K GPIO0 AVDD33_XTAL TP65 TP65 GPIO_1 AG27 AVCC_SRV AVCC_SRV AVCC_SRV AVCC_SRV +3V3SB GPIO_13 GPIO1 AVDD33_SRV GPIO_13 GPIO_2 GPIO_17 TP47 TP47 GPIO2 GPIO_17...
  • Page 111 U11D U11D D_DDRV D_RA0 AVDD12_DLL1 AVDD12_DLL1 AVDD12_DLL1 AVDD12_DLL1 D_DDRV AVDD12_DLL1 D_RA1 AVDD12_DLL2 AVDD12_DLL2 AVDD12_DLL2 AVDD12_DLL2 AVDD12_DLL2 D_RA2 D_RA3 AVDD12_MEMPLL AVDD12_MEMPLL AVDD12_MEMPLL AVDD12_MEMPLL AVDD12_MEMPLL D_RA4 9/17 ADD DRAM#1 D_RA5 D_WDQS0 D_WDQS0 D_WDQS0 D_WDQS0 UD2,RD5 WDQS0 D_RA6 D_WDQS1 D_WDQS1 D_WDQS1 D_WDQS1 WDQS1 D_RA7 D_WDQS2 D_WDQS2...
  • Page 112 9/21 DEL FB21,FB23~FB27 AV33 Near IC AV33 Near IC AVDD33_AADC AVDD33_APLL U11E U11E AV33 [2,3,7,8,10,12] AV33 AVDD33_APLL AVDD33_ADAC1 AV80 AVDD33_APLL AVDD33_ADAC1 AV80 AVDD33_AADC AVDD33_ADAC2 C149 C149 C150 C150 C157 C157 +5VSB AVDD33_AADC AVDD33_ADAC2 [1,2,4,10,13] +5VSB AVDD33_AADC 1.0uF/25V 1.0uF/25V 0.1uF/16V 0.1uF/16V 0.1uF/16V 0.1uF/16V AVDD33_REF_AADC...
  • Page 113 VIDEO DAC REF_V Near IC Near IC U11L U11L AV33 [2,3,6,8,10,12] AV33 SOY0 AVDD33_VDAC AV33 AIN2_L AH20 AG23 SOY0 AVDD33_VDAC AIN2_L AVDD33_CVBS AIN2_R AJ21 AIN2_R AVDD33_VDAC_BG DACVREF CVBS0 AH21 AG21 AVDD33_VDAC_BG CVBS0 CVBSN CVBSN PB0P AJ22 AH23 PB0P SCT0_SYNC [1,2,6,8,10] PBR0N C206 C206...
  • Page 114 HDMI port 2 392M19-H58 392M19-H58 +5V_HDMI CASE CASE CASE CASE HDMI_PLUGPWR3 R124 R124 RX3_2 RX3_2B R193 R193 R191 R191 R192 R192 C270 C270 NC/TCM1210 NC/TCM1210 RX3_1 0.1uF/16V 0.1uF/16V RX3_C RX3_1B VGAROMWP RX3_CB RX3_0 HDMIDDCSCL_3 HDMIDDCSDA_3 RX3_0B R125 R125 AT24C02BN-SH-T AT24C02BN-SH-T D32 NC/VPORT/100K D32 NC/VPORT/100K U11H...
  • Page 115 LG ATSC TUNER 12/17 Near Tuner Near IC DEL R265,R266 ADD L34,L35 R271 R271 R252 R252 C292 C292 CVBS0 [1,2,6,8,10] TDVF-H052F(LG) TDVF-H052F(LG) 0.047uF/25V 0.047uF/25V IF_AGC +3V3_DEMOD R253 R253 [2,3] +3V3_DEMOD CVBS0T +5V_TUNER GND1 CVBS +5V_TUNER ADIN0 GND2 ADIN0 C293 C293...
  • Page 116 EQUAL LENGTH USB PORT 0 U11I U11I AV33 Near IC TP51 TP51 AVDD12_USB AB10 DIFFERENTIAL IMPEDANCE 90ohm SDIOCLK AVDD12_USB FB44 FB44 AVDD33_USB [1,2,6,8] TP52 TP52 AVDD33_USB DV33 SDIOCMD AVDD33_USB [1,2,3,4,11,12] DV33 AVDD33_USB AV12 [2,3,5,8,12,13] AV12 AVDD33_USB TP53 TP53 R270 R270 AV33 SDIOD0 [2,3,6,7,8,12]...
  • Page 117 +12V [1,2,6,12] +12V DV33 [1,2,3,4,12] DV33 +12V AMPVCC MUTE_AMP E-Series MUTE_AMP 42",47"(10Wx2) => L30~L33=15uH, AMPVCC 80ohm/6A 80ohm/6A C504,C510,C520,C524=1uF OPCTRL4 OPCTRL4 55"(15Wx2) => L30~L33=22uH, +18V AOMCLK AOMCLK C504,C510,C520,C524=0.68uF C497 C497 CE61 CE61 AOLRCK AOLRCK 1.0uF/25V 1.0uF/25V C498 C498 AOBCK 470uF/25V 470uF/25V AOBCK NC/80 ohm/6A NC/80 ohm/6A...
  • Page 118 DV33 LVDS_VDD LVDS_VOP LVDS_VOP LVDS_VOP DV33 [1,2,3,4,11] DV33 AV12 [2,3,5,8,10,13] AV12 AV33 [2,3,6,7,8,10] AV33 U11F U11F MT5392_GDDR3_Final_2008_0505 MT5392_GDDR3_Final_2008_0505 +5VSB [1,2,4,6,10,13] +5VSB AE0N AE0N AE0N AE0N AVDD33_LVDS AO0N R1AM R276 R276 R281 R281 R284 R284 +12V AE0N AVDD33_LVDSD R1AM [14] [1,2,6,11] +12V AE0P AE0P...
  • Page 119 VGA/YPbPr POWER BYPASS CAP. +5VSB [1,2,4,6,10] +5VSB AV12 [2,3,5,8,10,12] AV12 U11J U11J U0RX U0RX HSYNC AVDD12_RGBFE AVDD12_RGBFE AVDD12_RGBFE AVDD12_RGBFE AVDD12_RGBFE AVDD12_RGBFE AVDD12_RGBFE AVDD12_RGBFE U0TX AK14 AG19 HSYNC AVDD12_RGBFE U0TX VSYNC AV12 AV12 OPCTRL8 AJ14 VSYNC [3,4] OPCTRL8 AVDD12_RGBADC AVDD12_RGBADC AVDD12_RGBADC AVDD12_RGBADC AVDD12_RGBADC AVDD12_RGBADC...
  • Page 120 IF Renesas , TR10 --> 0 OHM , TR11 --> OPEN TCON POWER P12V IN IF TLI , TR10 --> OPEN , TR11 --> 0 OHM OPC_EN_I [12] OPC_EN LVDS_VDD P12V [13] VSDA MLVDD PWM_TIN_I DISM H = JEIDA , L = NS [12] LVDS_VDD [1,12]...
  • Page 121 FFC CONNECTOR BLOCK P12V HVDD BLOCK 8/24 modify TC42 TC42 TC41 TC41 POWER BLOCK 10uF/25V 10uF/25V 0.1uF/50V 0.1uF/50V 11/4 TCE1 Modify Footprint "SMDECD" 1206 0603 TC43 TC43 TC44 TC44 REAR MOUNT TP92 TP92 TC46 TC46 0.01uF/16V 0.01uF/16V 0.1uF/16V 0.1uF/16V TC61 TC61 TC62 TC62...
  • Page 122 RR11 RR11 ALS select RR10 RR11 RR12 +5V0 UR2 TSL2561FN 100 ohm 100 ohm NC/100 NC/100 SDA1 FM-8038TM2-5DN FM-8038TM2-5DN UR3 CM3217 100 ohm 100 ohm SCL1 RR10 RR10 NC/100 NC/100 FFC_R50_6P FFC_R50_6P RR12 RR12 10uF/16V 10uF/16V +5V0 NC/1R25_1X6ML NC/1R25_1X6ML 8/18 RR9-RR12 change to 0805R IR_Power 80ohm...
